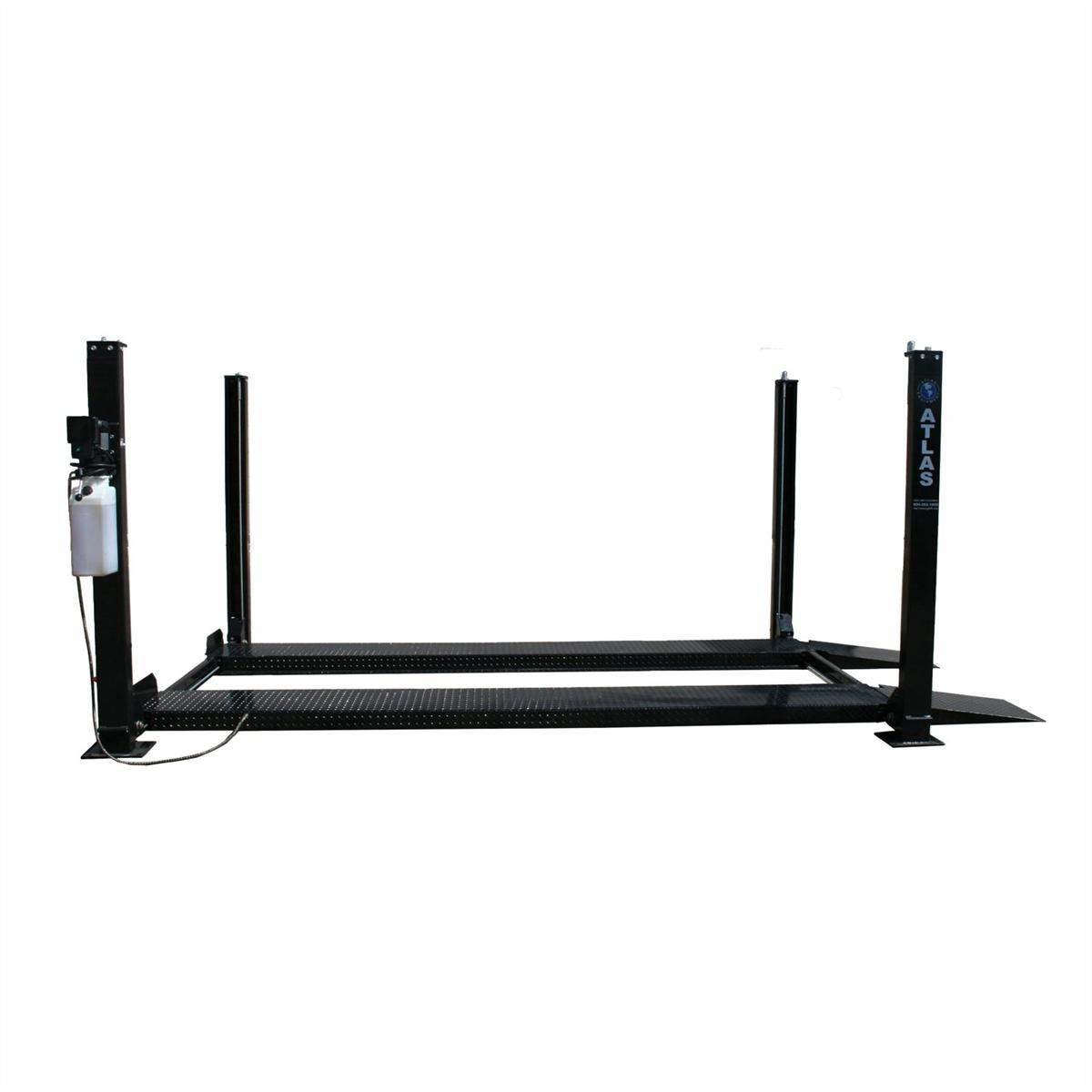

Atlas Garage PRO8000 Portable Hobbyist 8,000 lb. Capacity 4-Post Lift

Features and Benefits:

• 8,000 lb. Capacity
• Free Standing/Portable Design
• Diamond Plated Runways
• Single-Point Lock Release
• Lock Ladder Design
• Double Lock Safety System
• Caster Kit With Polyurethane Wheels Included
• Steel Approach Ramps Included
• Steel Jack Tray Included
• 4 Plastic Drip Trays Included
• 4 Wheel Stops Included
• 2 Rubber Wheel Chocks Included
• Perfect For Storing Or Working On Vehicles
• 110volt Electric Operation (30 AMP BREAKER REQUIRED)
• Shipping Weight 1,800 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only

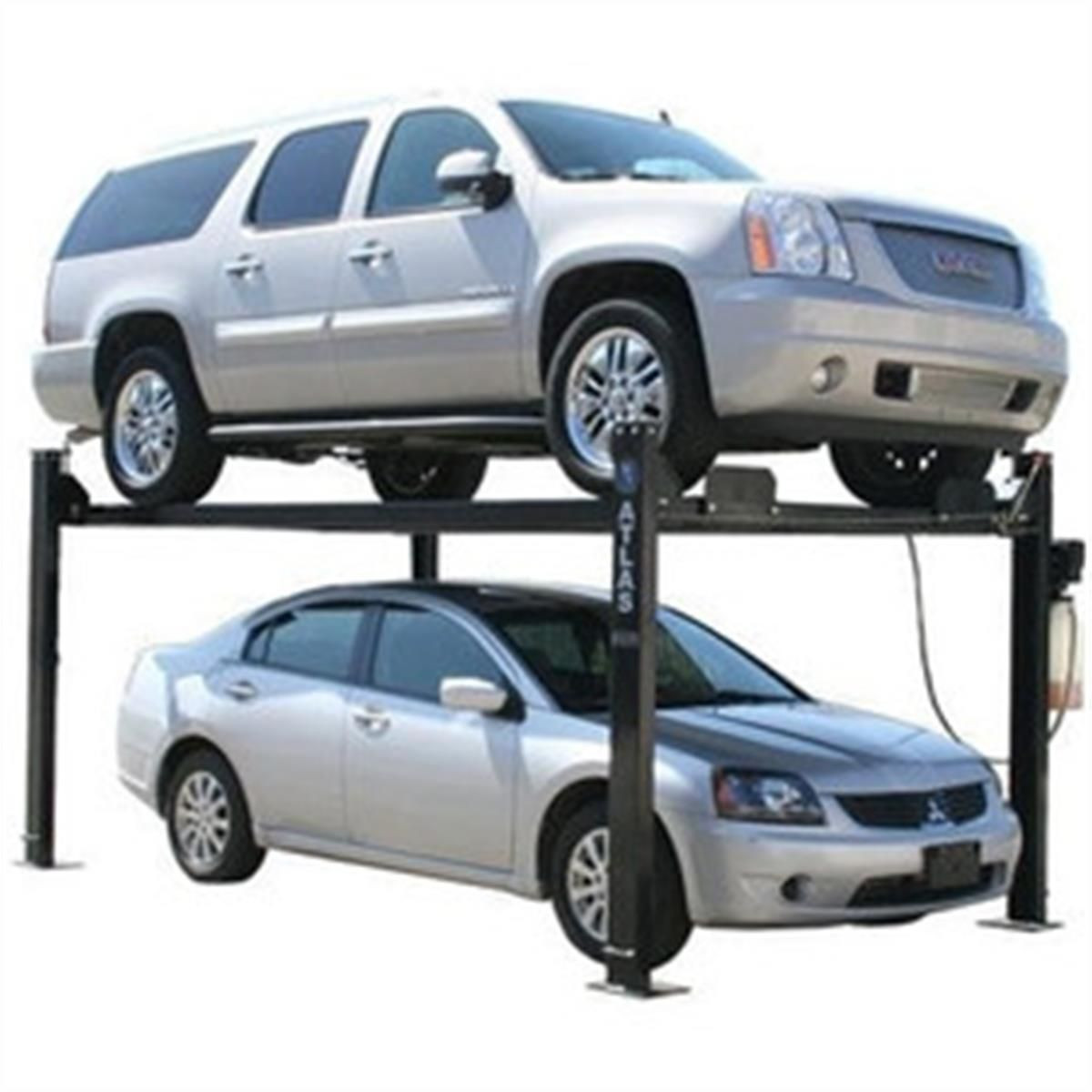

The Atlas® Garage PRO8000 is our most popular 4-post hobbyist lift. Perfect for the customer with too many cars and not enough space. The Garage PRO8000 allows the user to easily double their space by stacking most passenger cars.

The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson.

The Atlas® Garage PRO8000 includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. All that makes the Garage PRO8000 one of the best valued 4-post lifts on the market.

Many customers who purchased this lift also purchased the Atlas® RJ35p.

Atlas® Garage PRO8000 Specifications

• Capacity 8,000 lb.
• Lifting Height To Top Of Runway 72″ (6′)
• Clearance Under Runways 67 (5′ 7″)
• Height Of Columns 83″ (6′ 11″)
• Overall Width (Without Motor) 104 1/2″ (8′ 8 1/2″)
• Overall Width (With Motor) 115″ (9′ 7″)
• Overall Length With Approach Ramp 206 3/4″ (17′ 2 3/4″)
• Approach Ramp 37″ (3′ 1″)
• Runway Width 21 1/2″ (w/ Rails) or 18 3/4″ (Driving Surface)
• Runway Length 165 3/4″ (13′ 9 3/4″)
• Runway Thickness 4 1/2″
• Width Between Runways 37″ (3′ 1″)
• Width Between Runway Rails 31 1/2″ (2′ 7 1/2″)
• Outside Runway To Outside Runway 74 5/8″ (6′ 2 5/8″)
• Clearance Between Columns 94 1/2″ (7′ 10 1/2″)
• Length Between Columns 157 1/2″ (13′ 1 1/2″)
• Maximum Wheel Base 153 1/2″ (12′ 9 1/2″)
• Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2″ (6′ 8 1/2″)
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 1,800 lb.

WARNING: cancer and reproductive harm – www.P65Warnings.ca.gov

Lifting Capacity:

8,000 lbs
