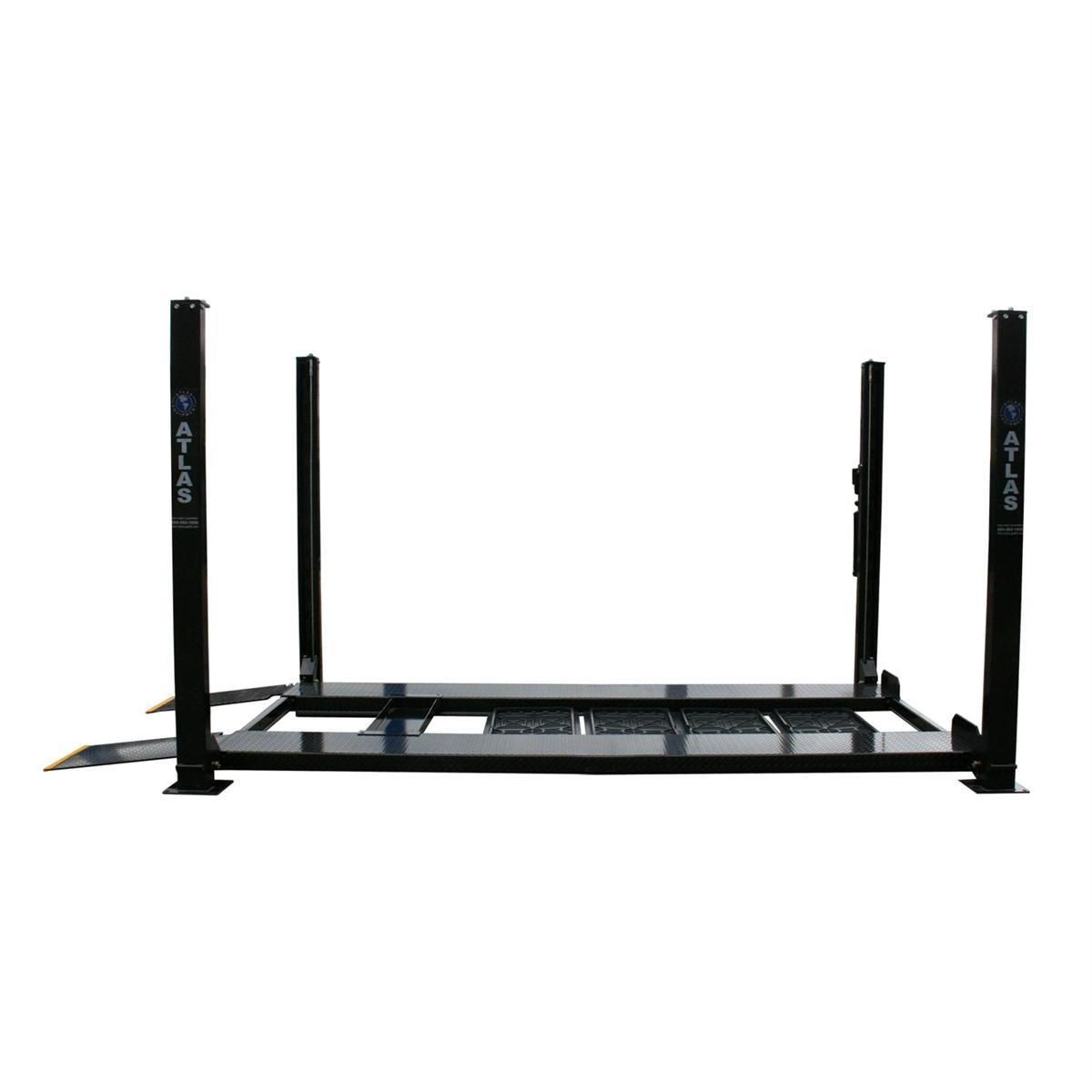

Atlas Garage PRO8000EXT Extra Tall Portable Hobbyist 8,000 lb. Capacity 4-Post Lift

Features and Benefits:

• 8,000 lb. Capacity
• Free Standing/Portable Design
• Extra Tall
• Diamond Plated Runways

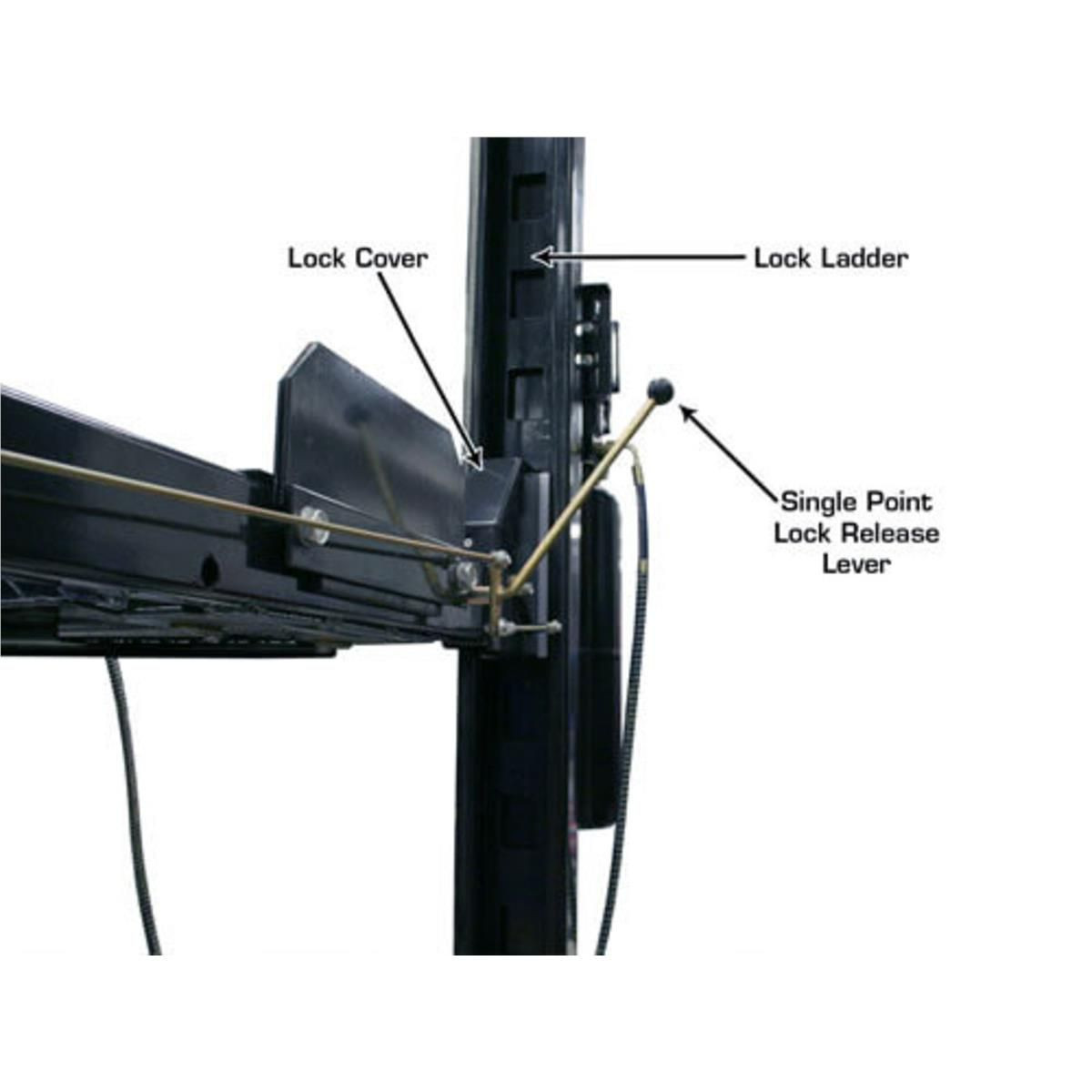

• Single-Point Lock Release

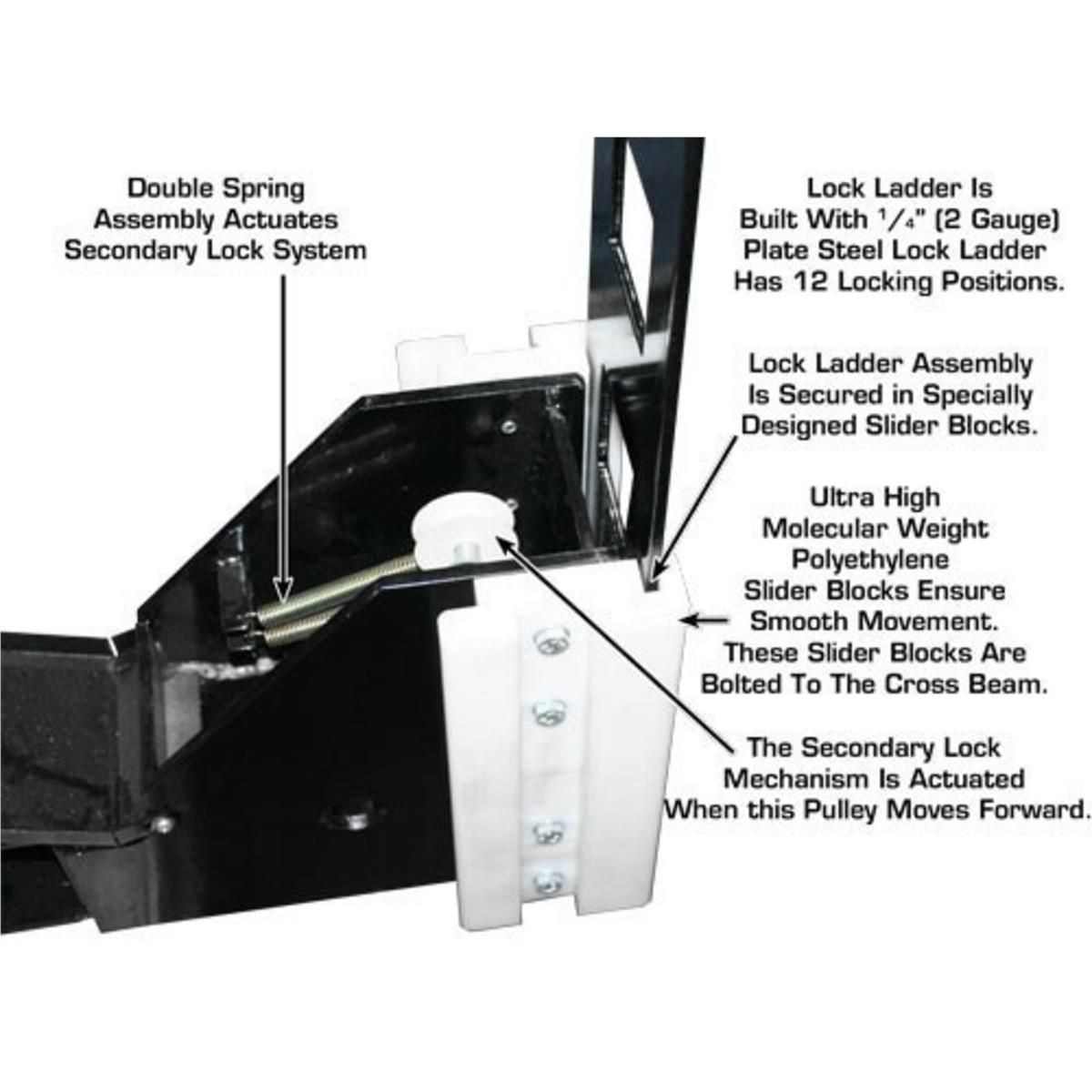

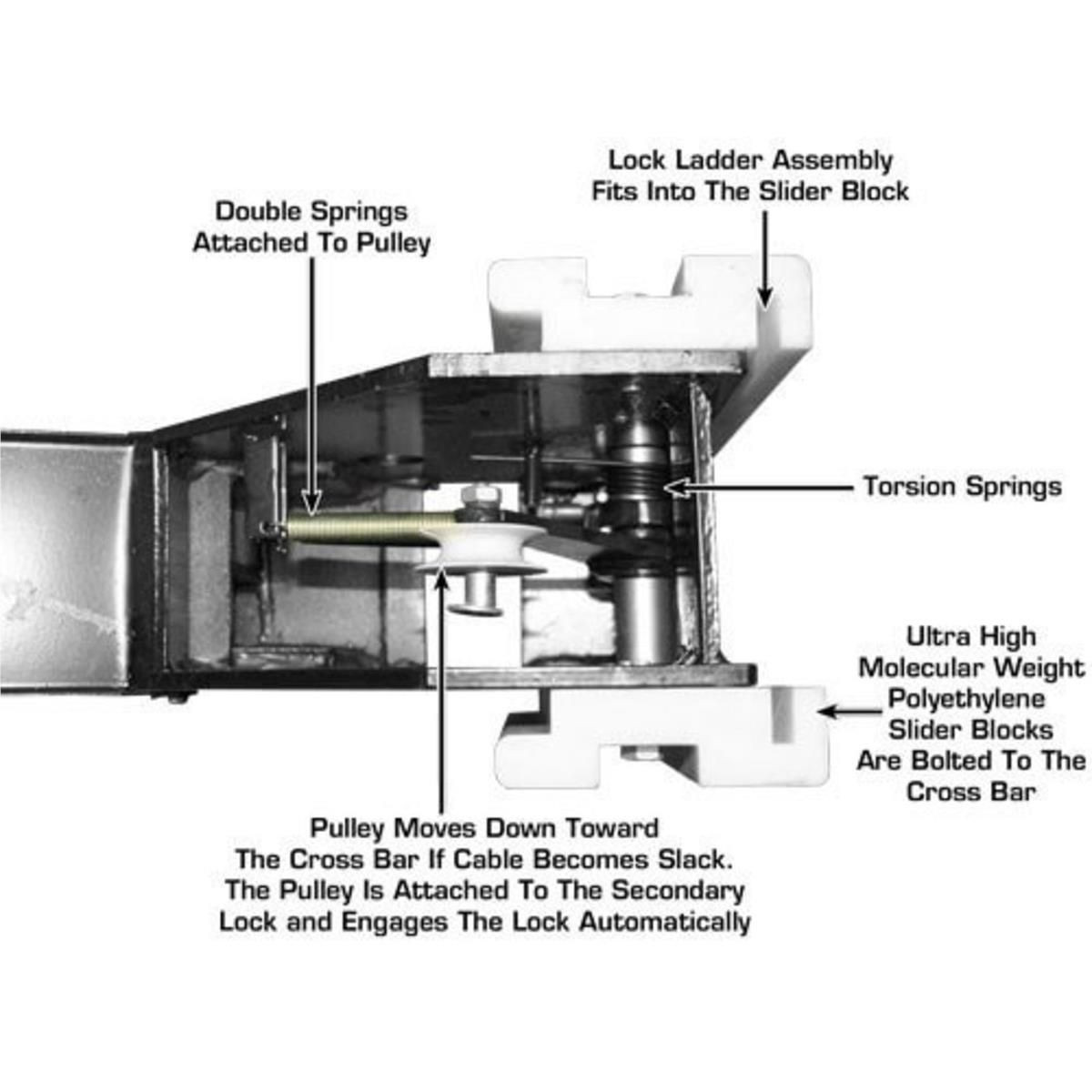

• Lock Ladder Design

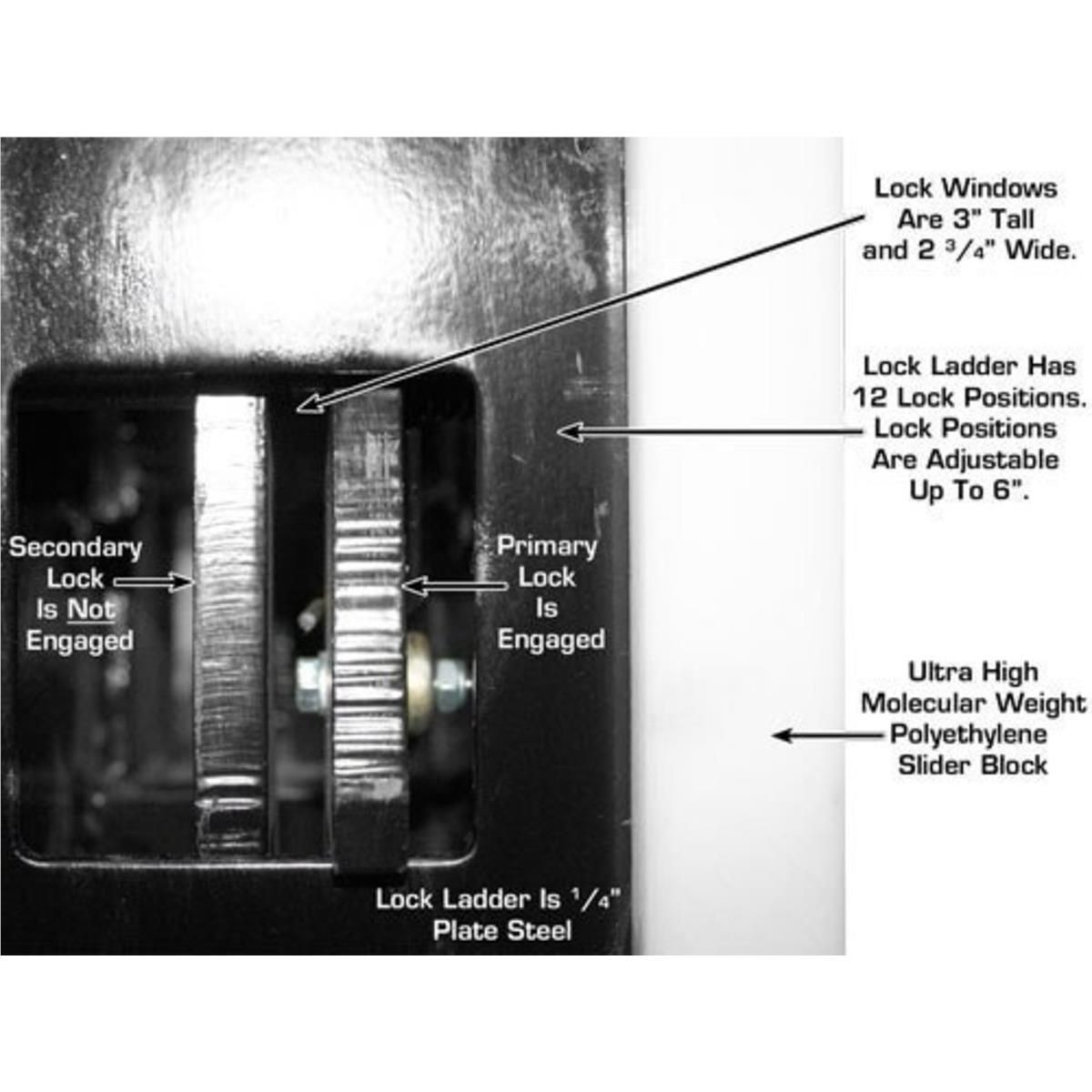

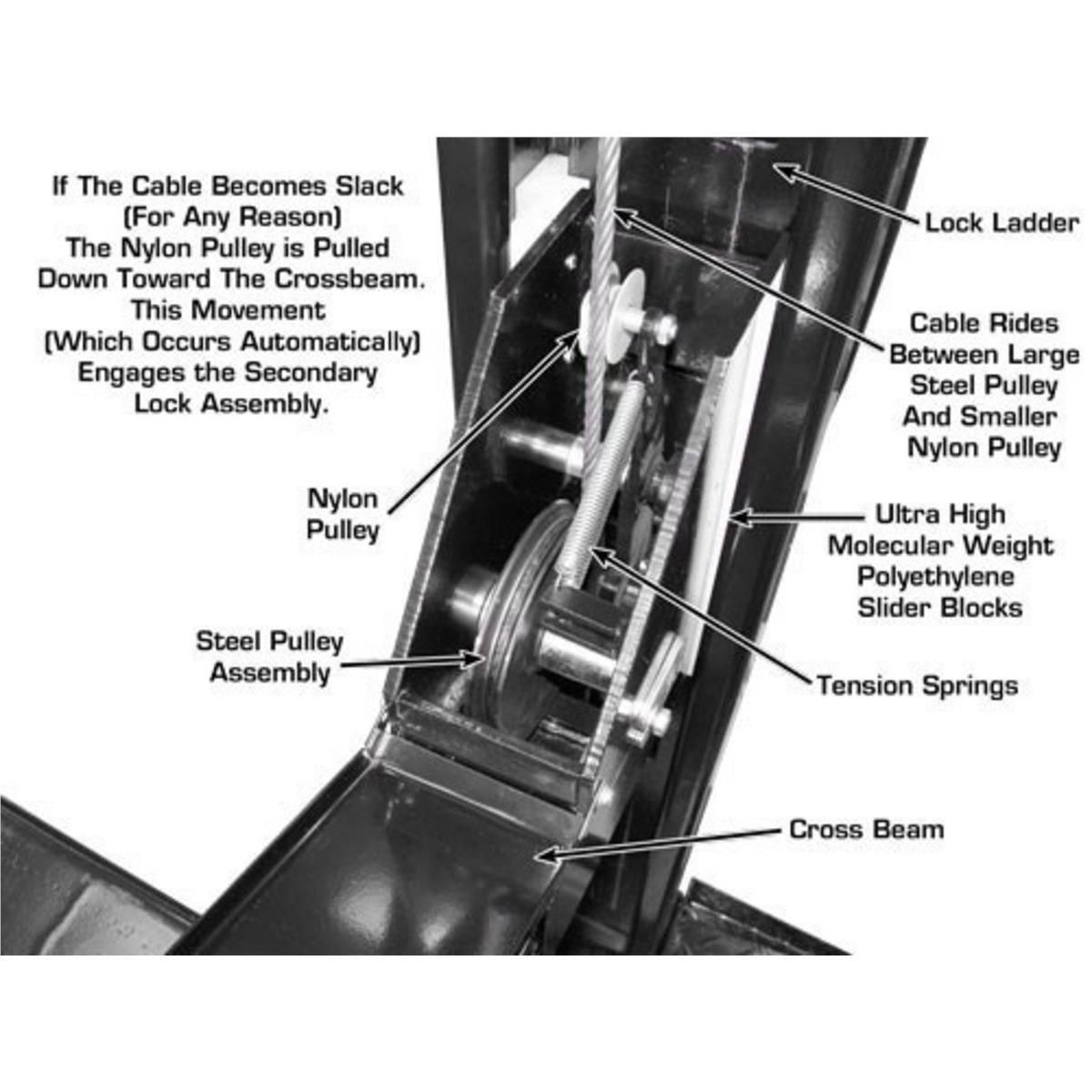

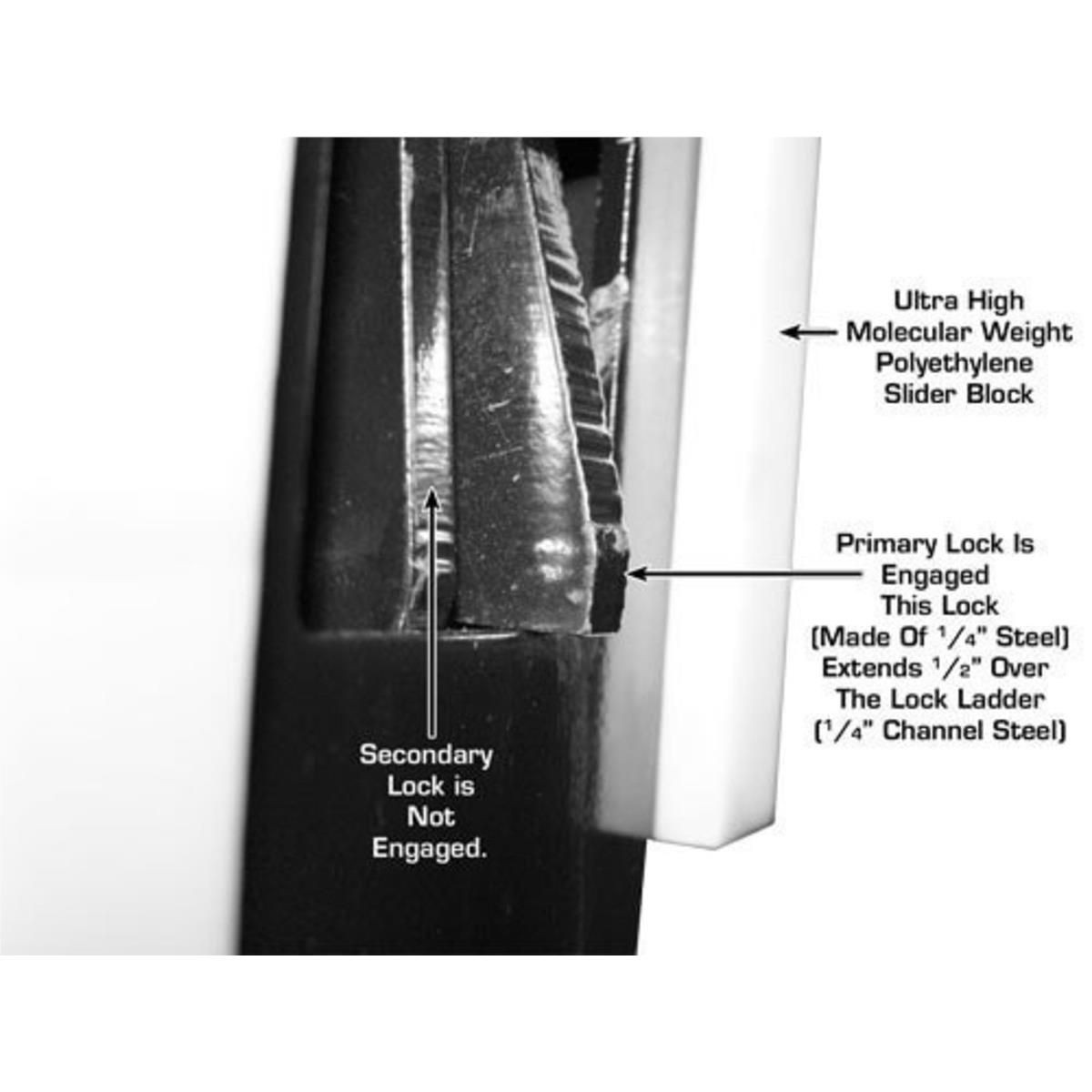

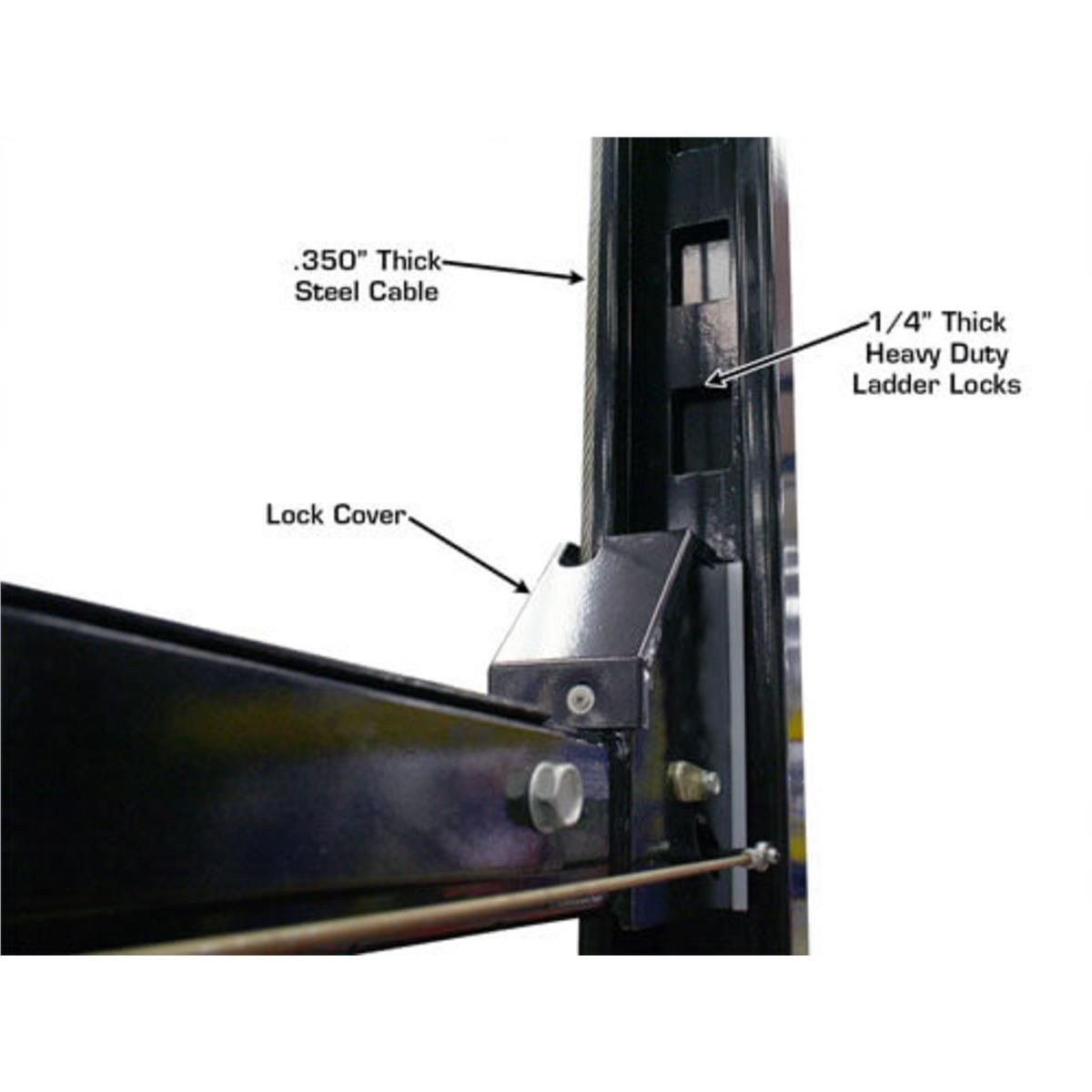

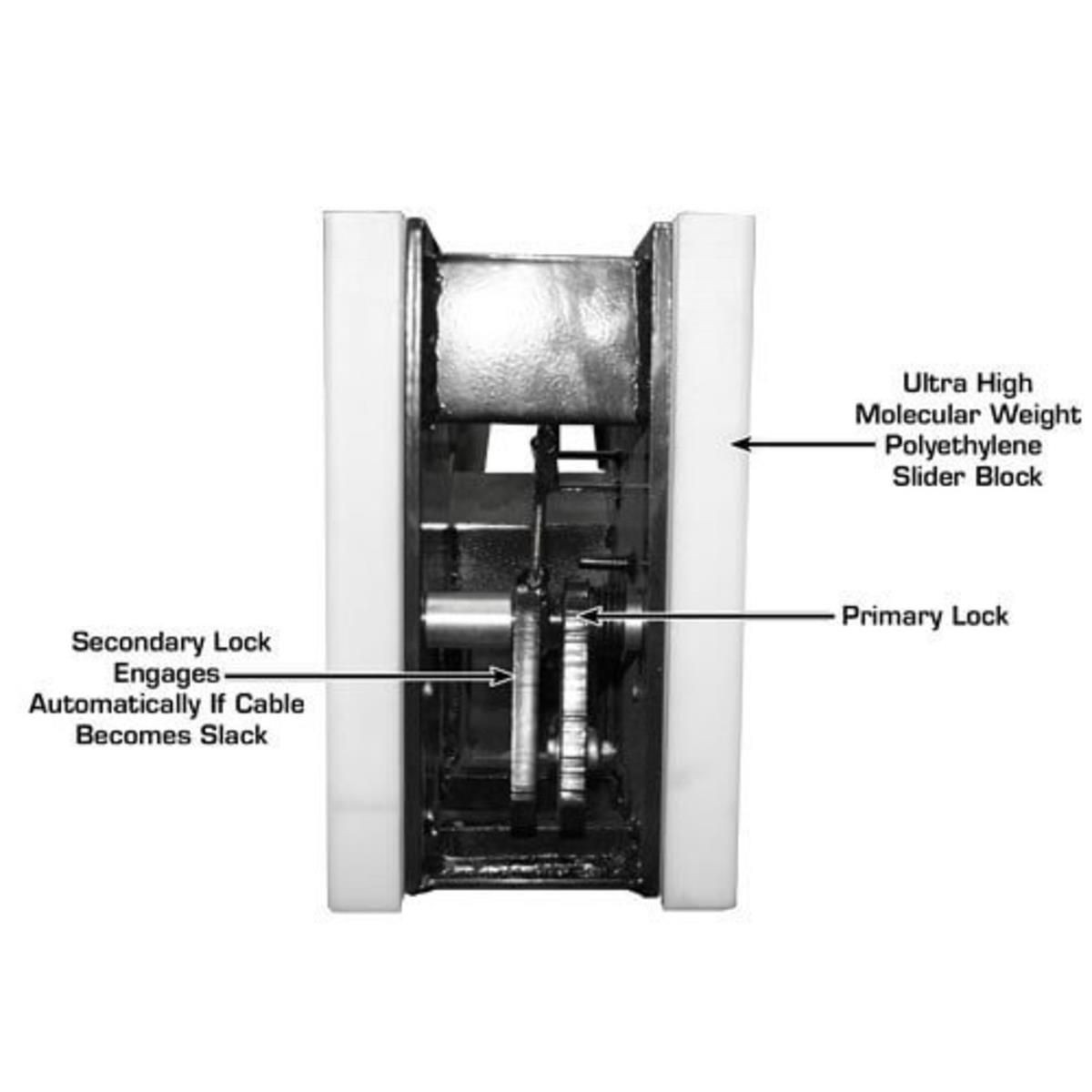

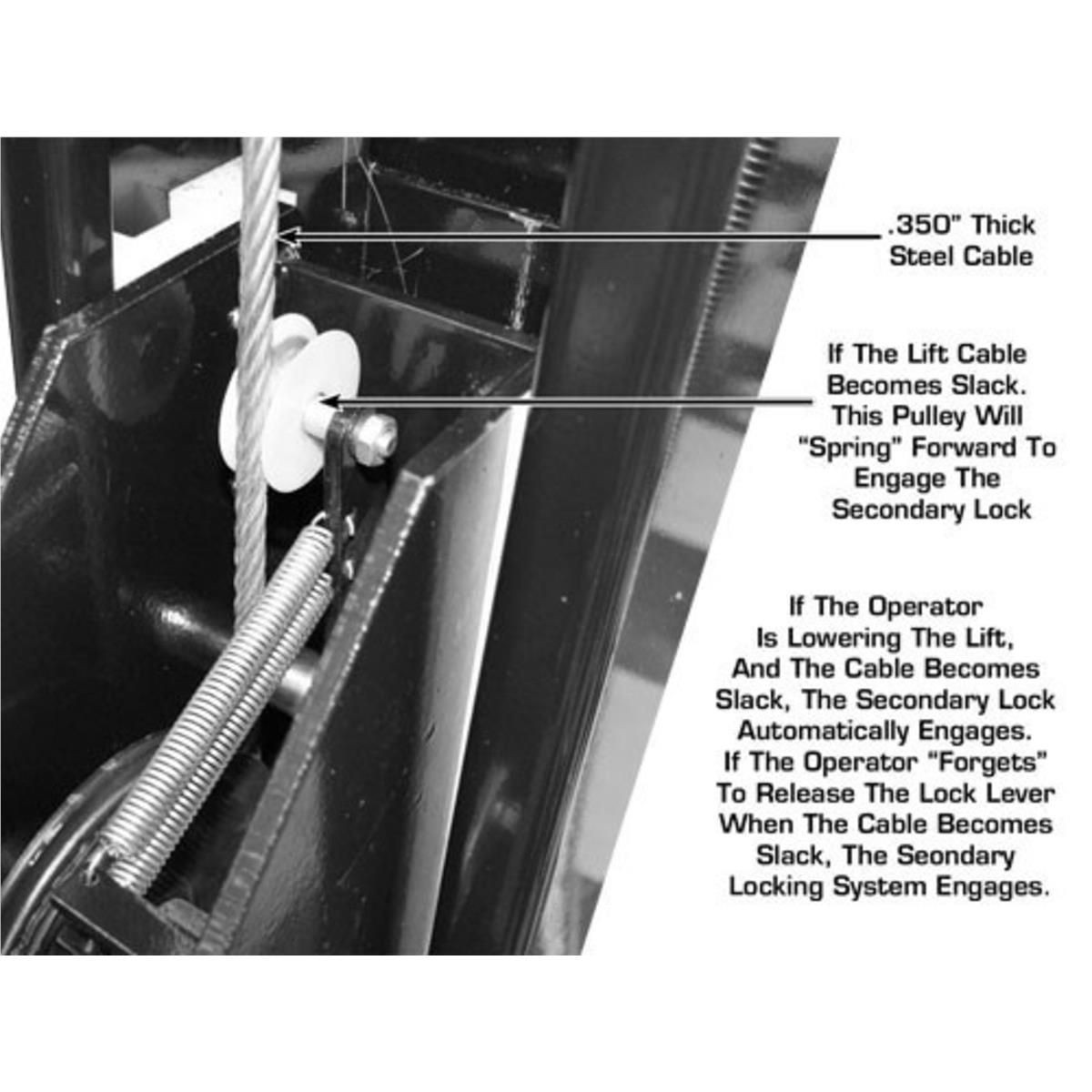

• Double Lock Safety System

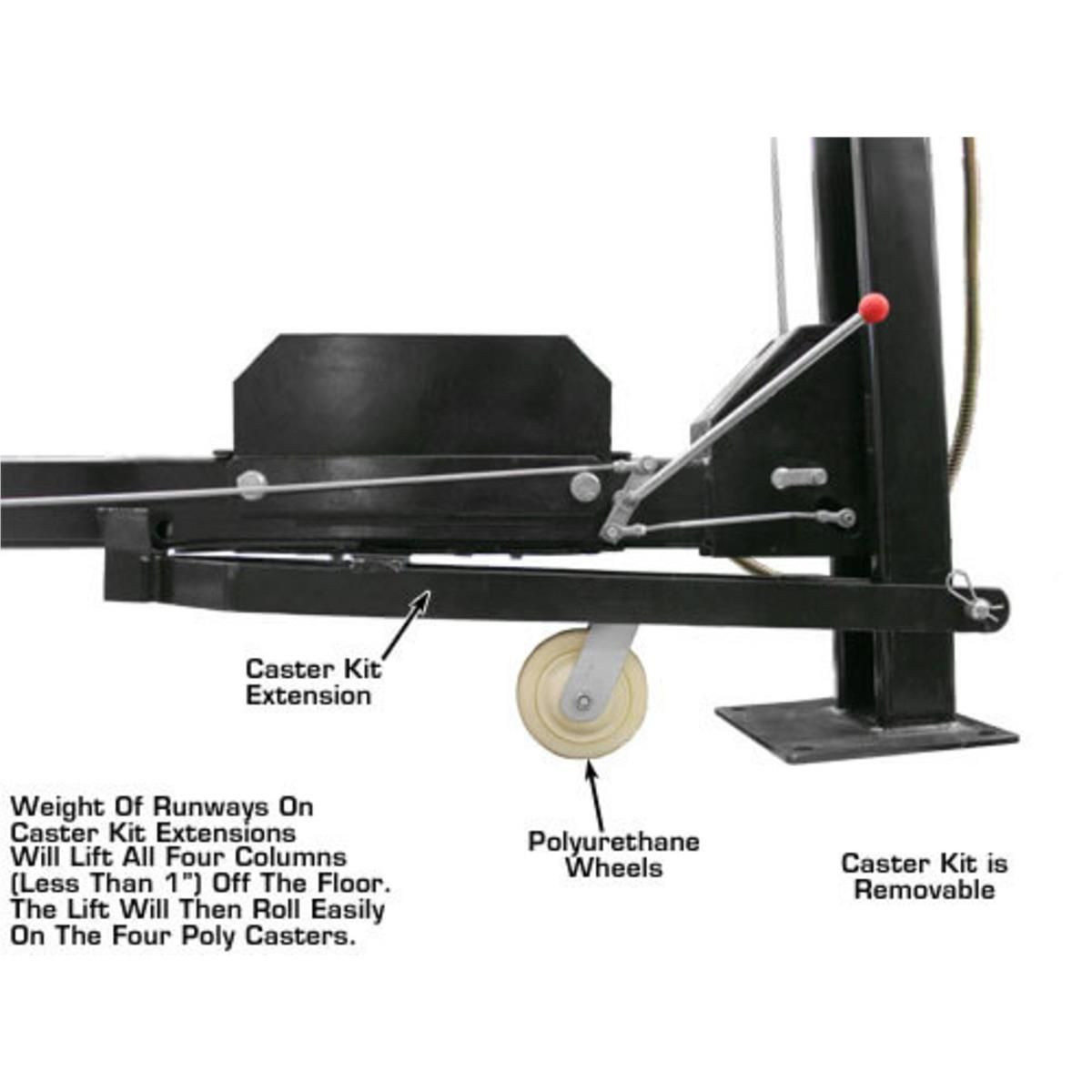

• Caster Kit With Polyurethane Wheels Included

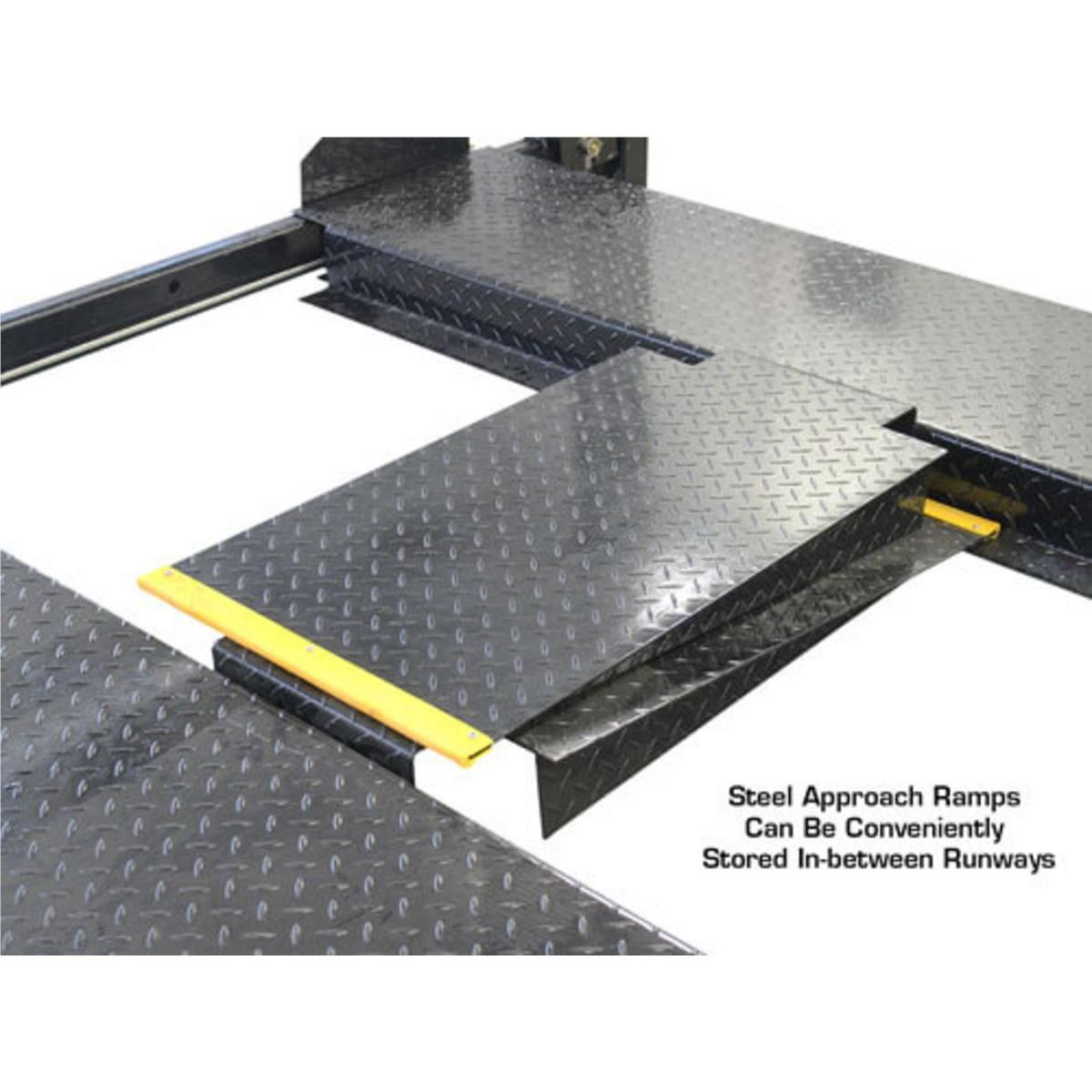

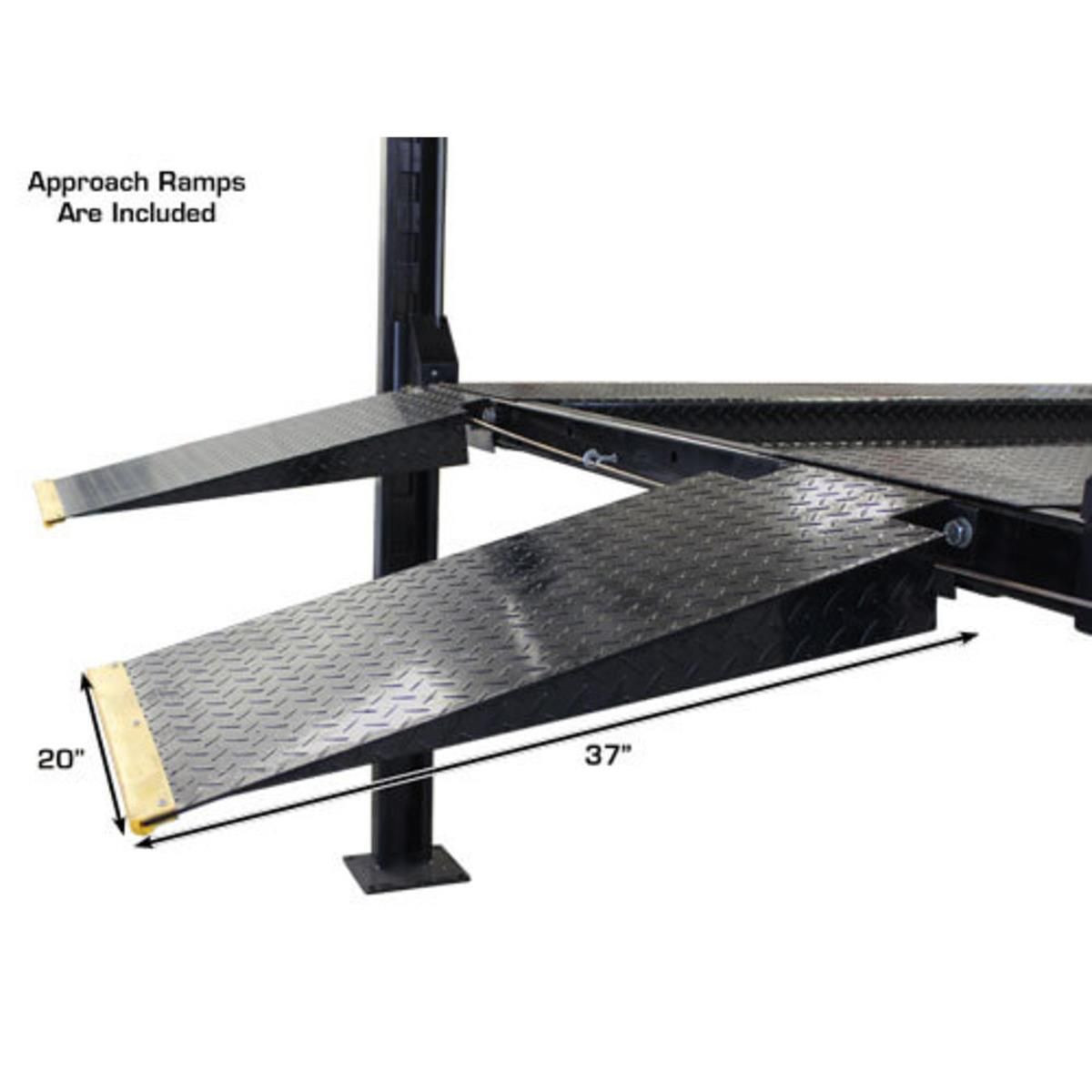

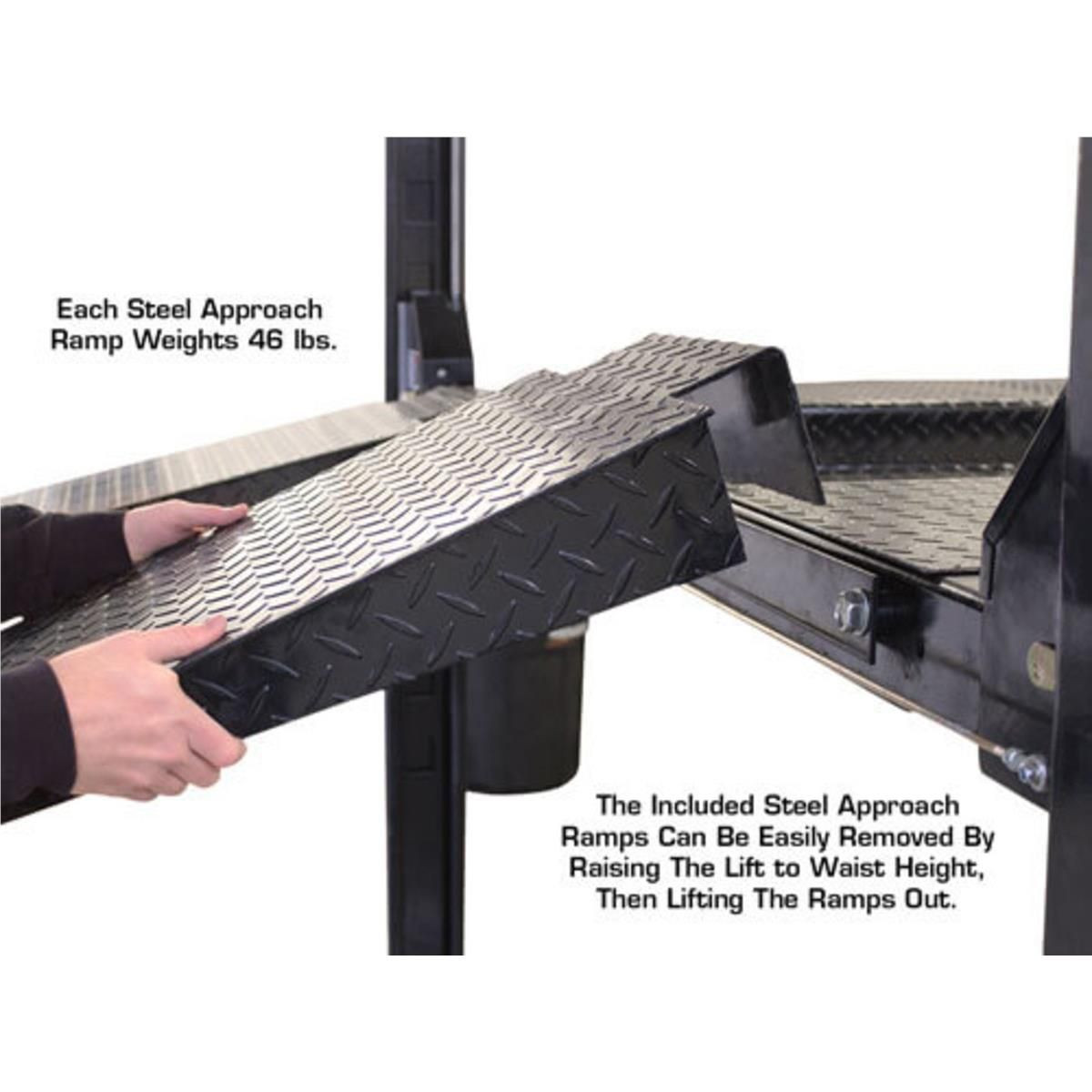

• Steel Approach Ramps Included

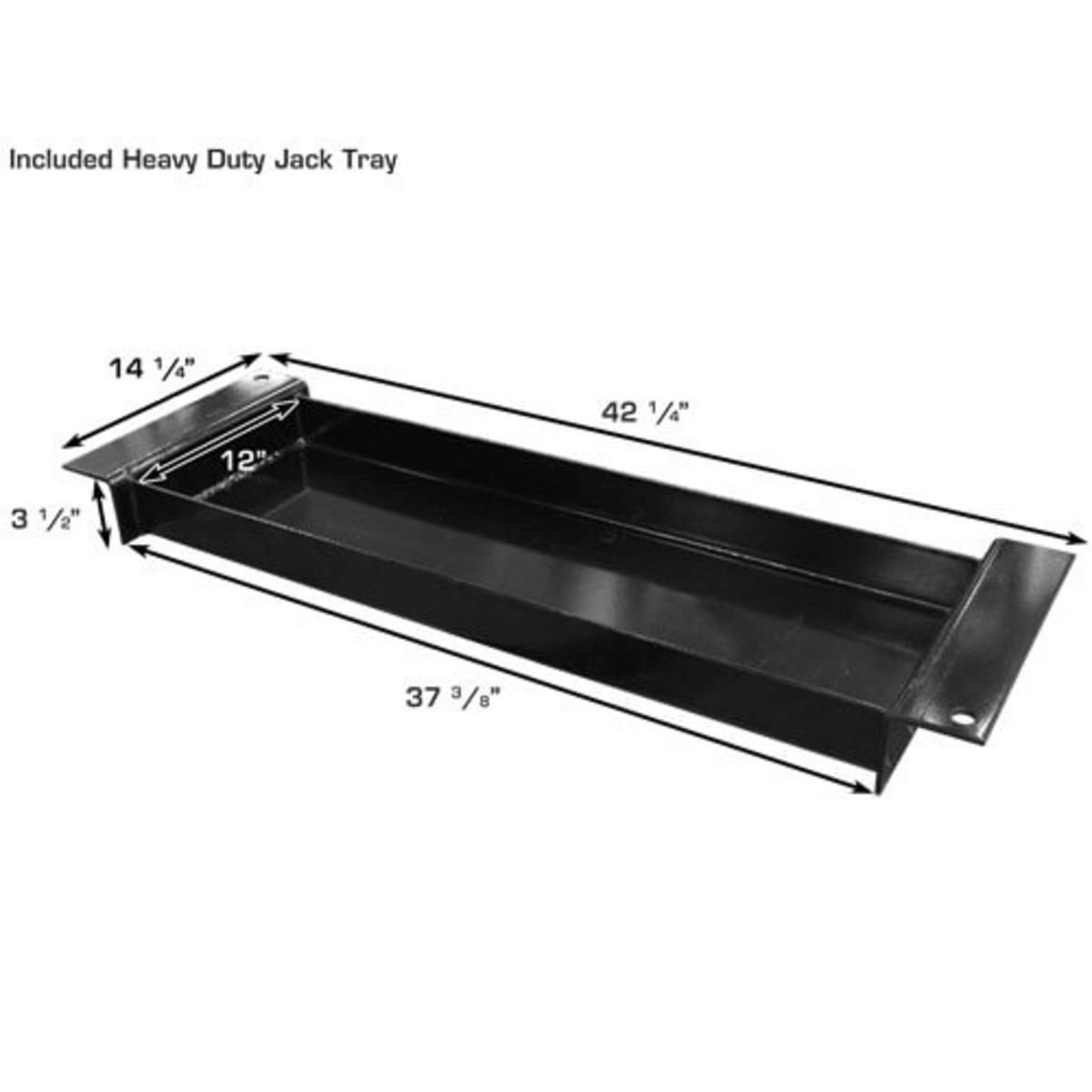

• Steel Jack Tray Included

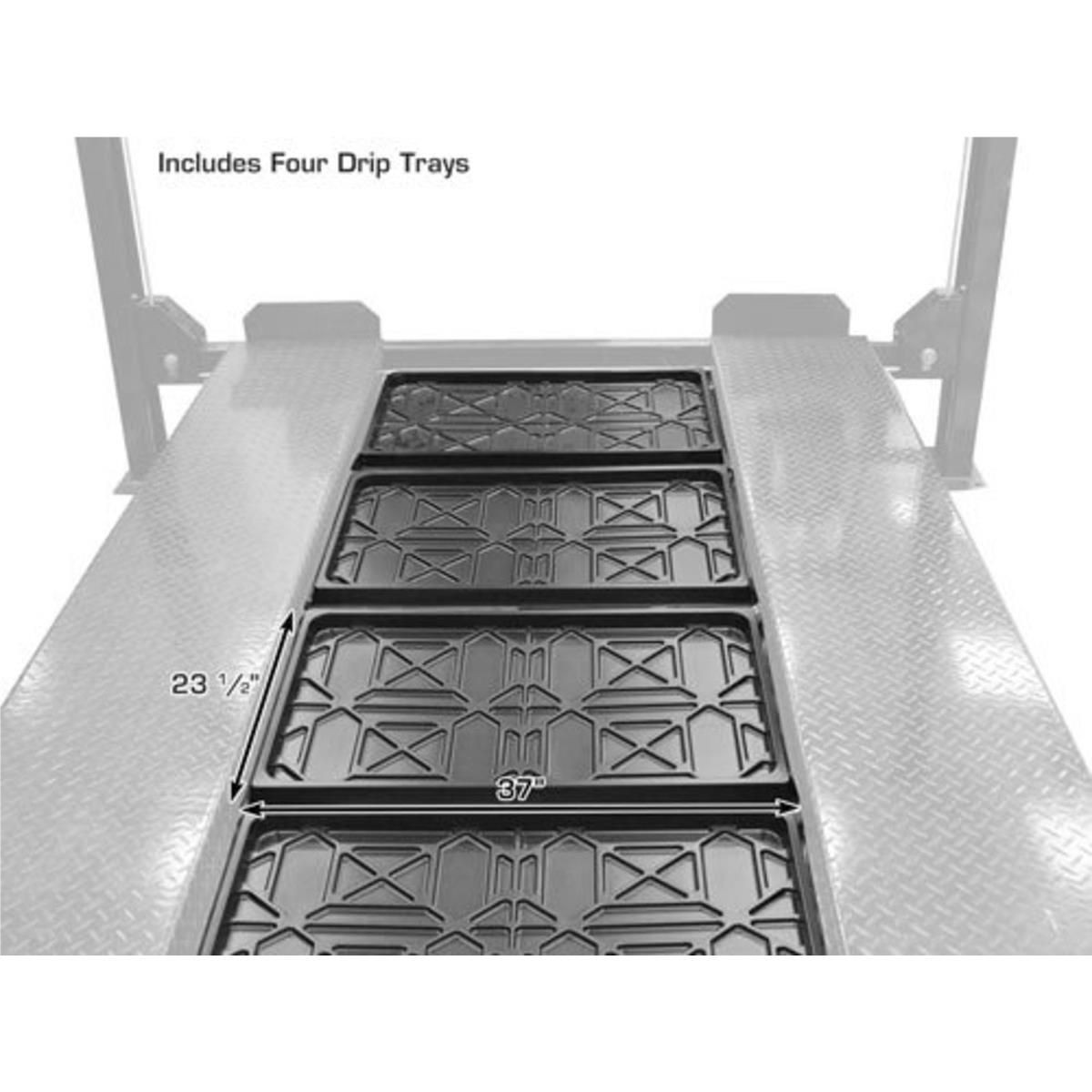

• 4 Plastic Drip Trays Included
• 4 Wheel Stops Included

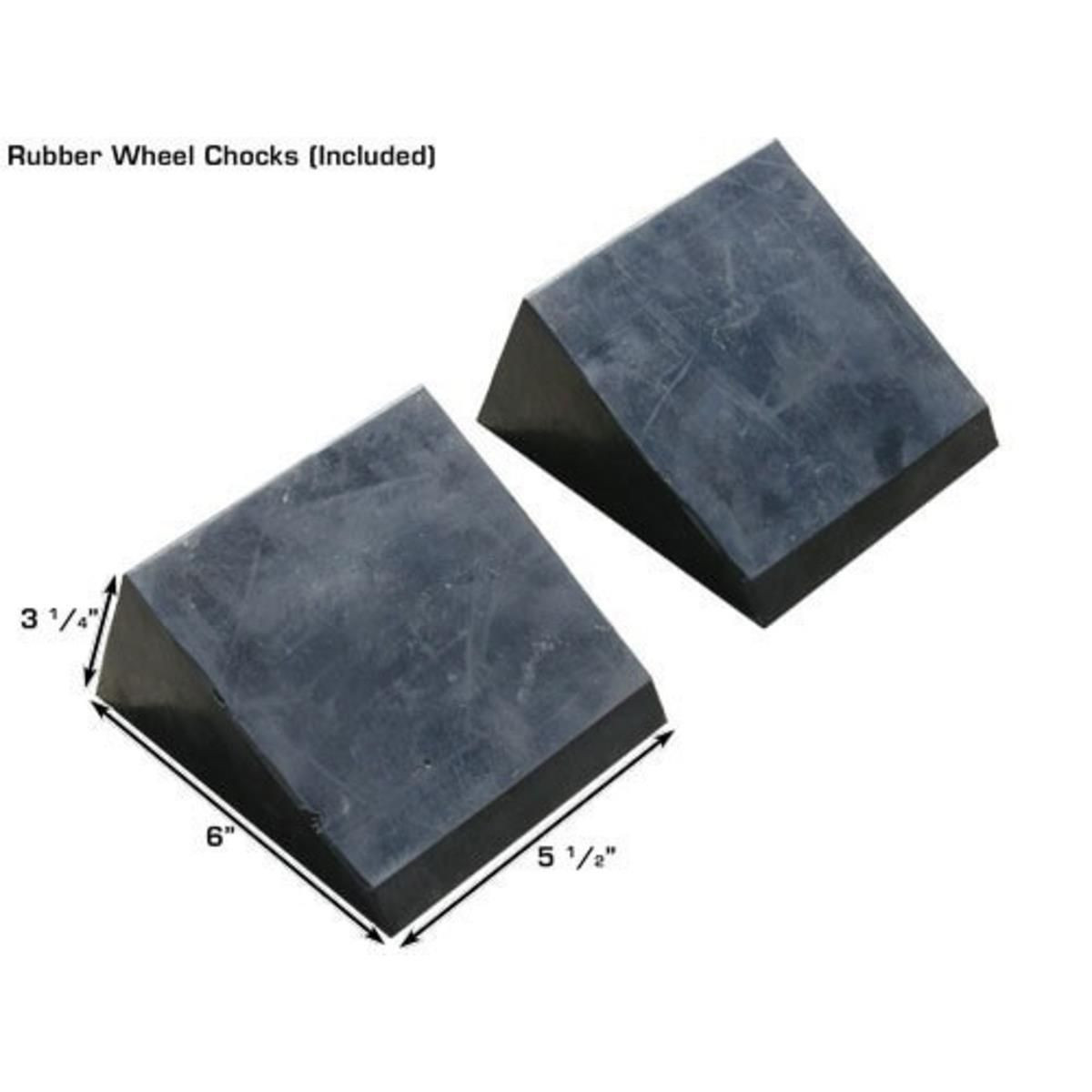

• 2 Rubber Wheel Chocks Included
• Perfect For Storing Or Working On Vehicles

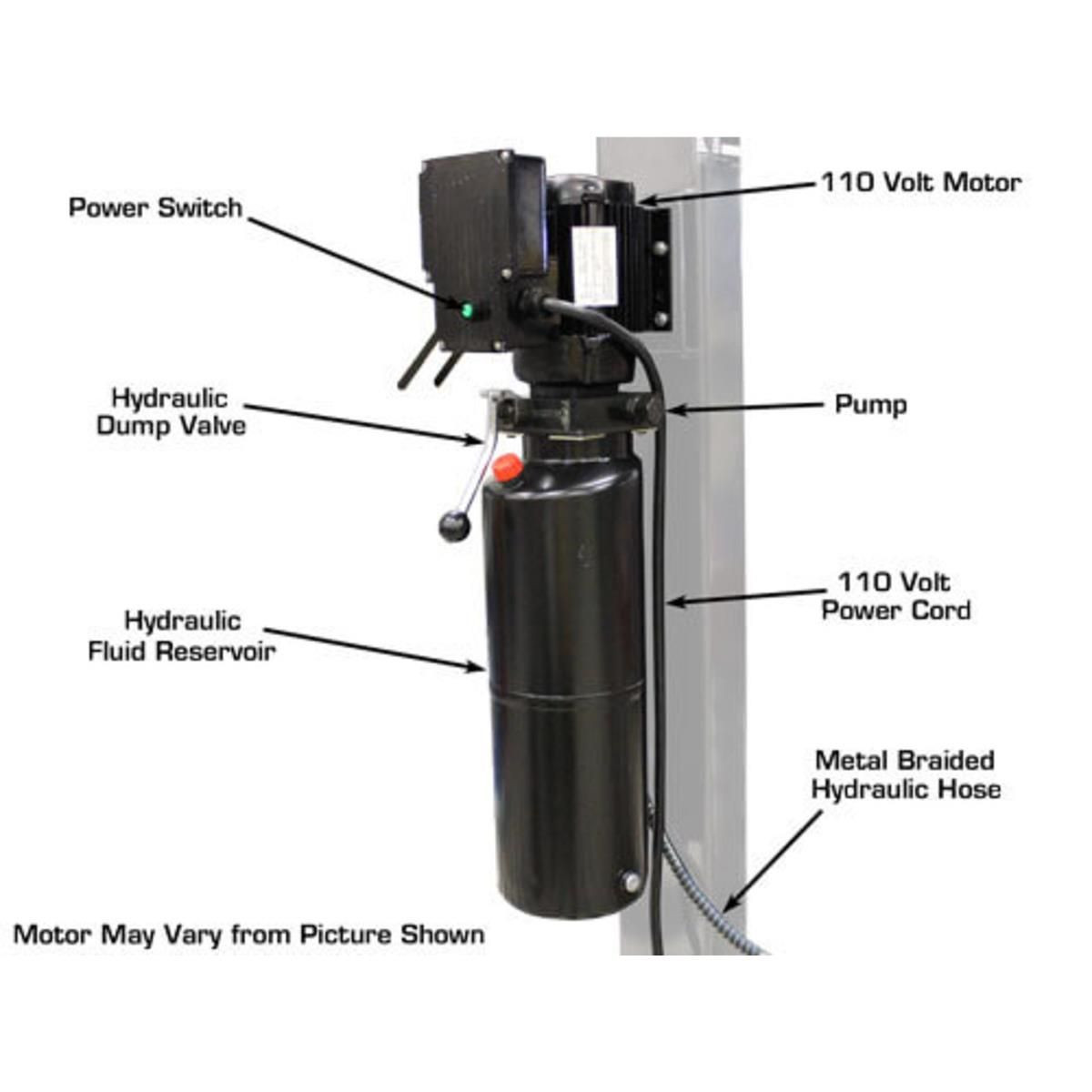

• 110volt Electric Operation (30 AMP BREAKER REQUIRED)

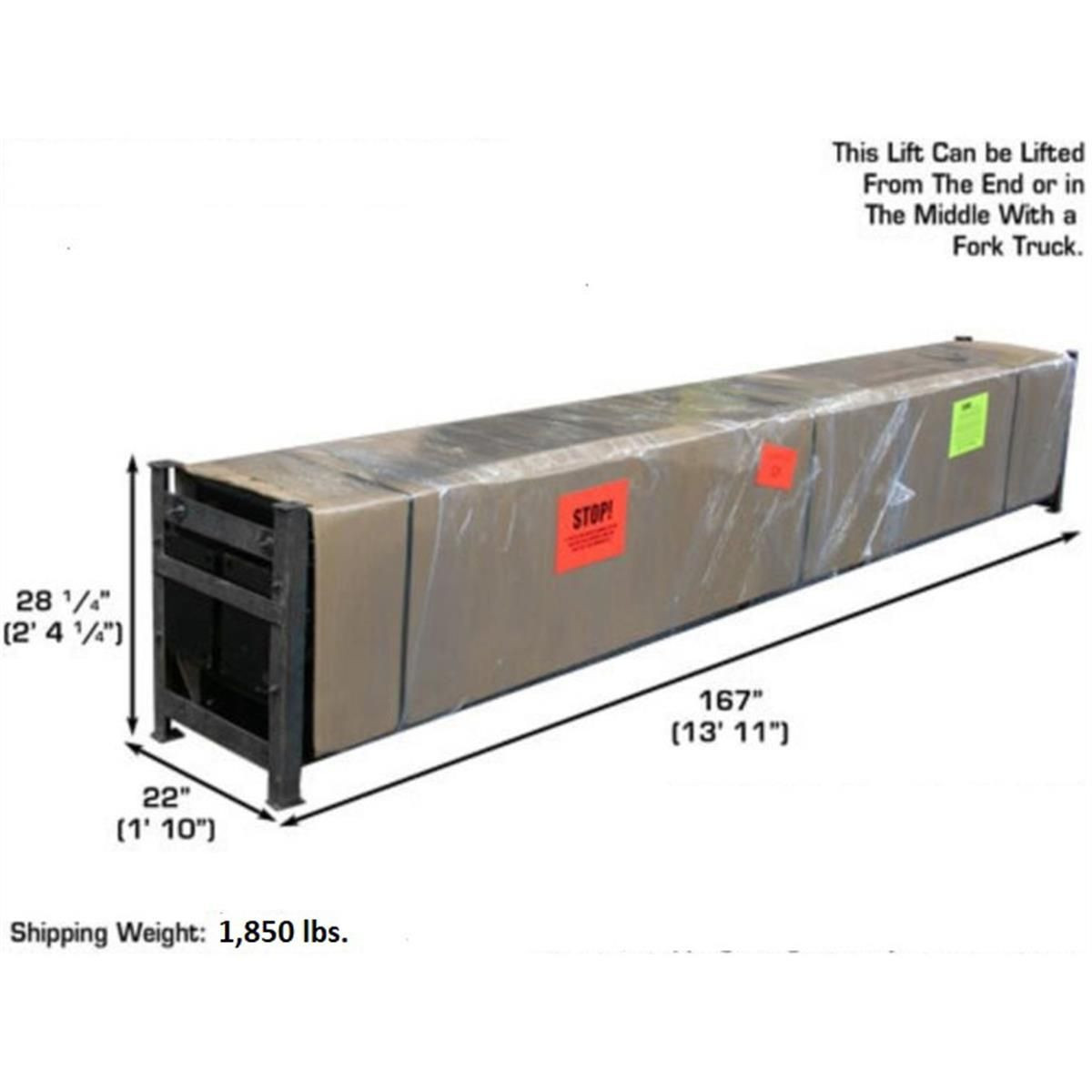

• Shipping Weight 1,850 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only

The Atlas® Garage PRO8000EXT is a true 8,000 LB. four post lift and is one of our most popular hobbyist lifts. This lift incorporates many of the great features of both the Atlas® Garage PRO8000 and the Atlas® Garage PRO9000.

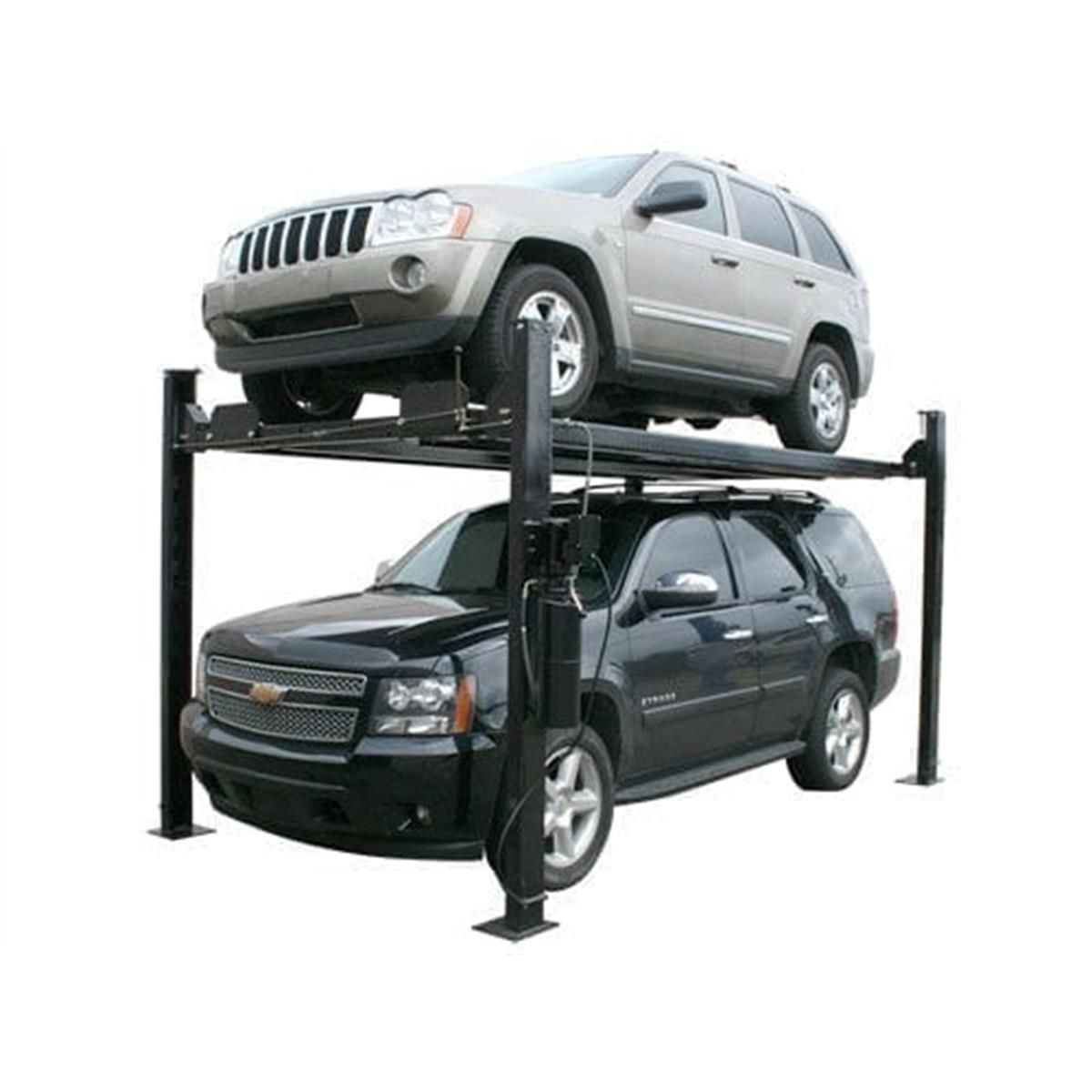

Many of our customers drive an SUV or pick up truck and wanted a storage lift that would “go higher” to allow them to park their taller vehicles under the elevated platform. Many of our competitors sell “taller” lifts. However, their “taller” lifts also have longer runways. Our customers requested that we make a lift which lifts higher, but without the extra length (longer runways take up valuable garage space). Most customers want to store a car on top and park a SUV or pick up truck below. The Atlas® Garage Pro 8000 EXT has been engineered to provide 79″ of clearance UNDER the bottom of the raised runway. If you need the extra lifting height of the Atlas® Garage Pro 9000, but do not need the extra width and runway length provided by that lift, then the Atlas® Garage PRO8000EXT is the perfect choice.

The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson.

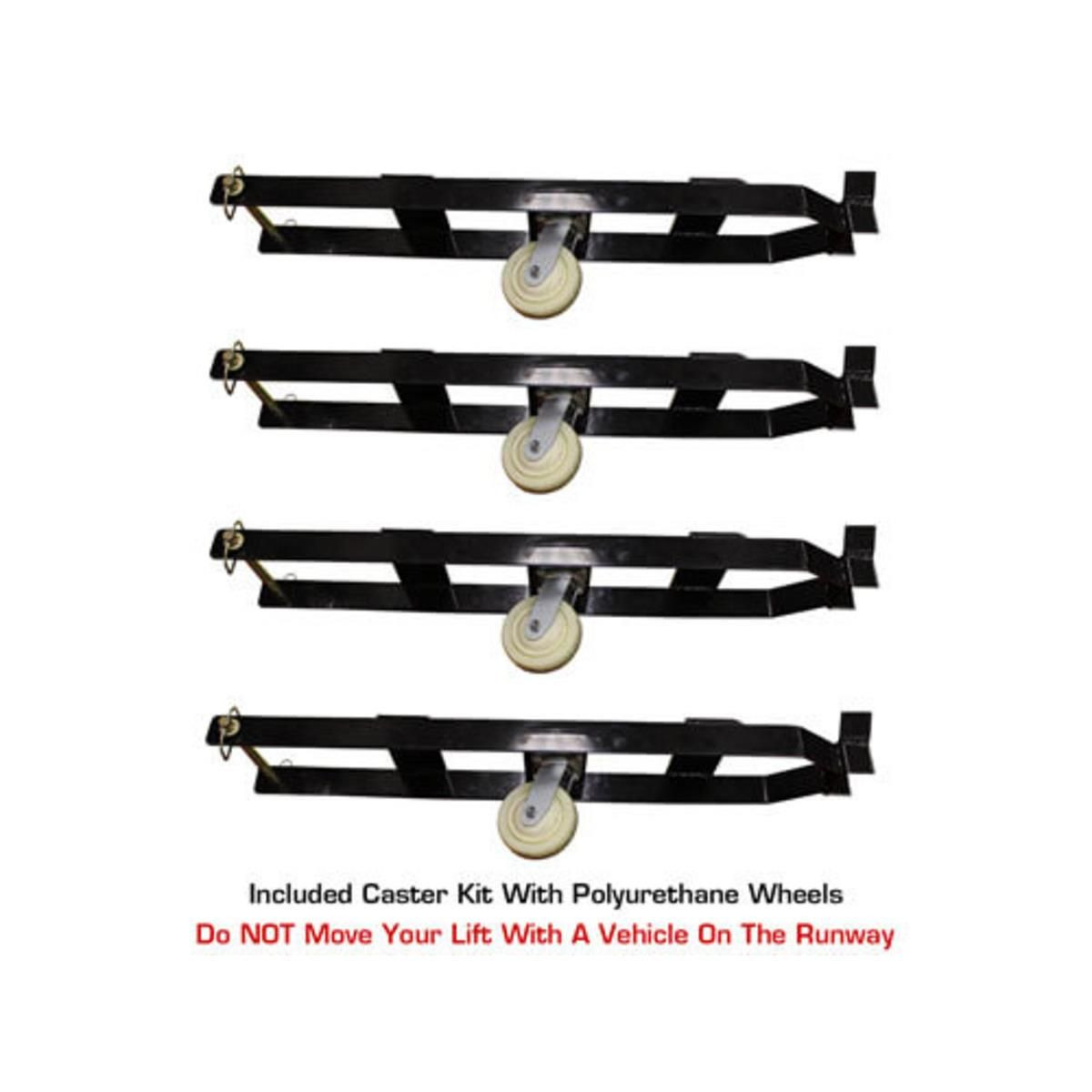

The Atlas® Garage PRO8000EXT includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.

Many customers who purchased this lift also purchased the Atlas® RJ35.

Atlas® Garage XH-PRO8000EXT Specifications

Capacity 8,000 Lb.

• Lifting Height To Top Of Runway 84 1/4″ (7′ 1/4″)
• Clearance Under Runways 79″ (6′ 7″)

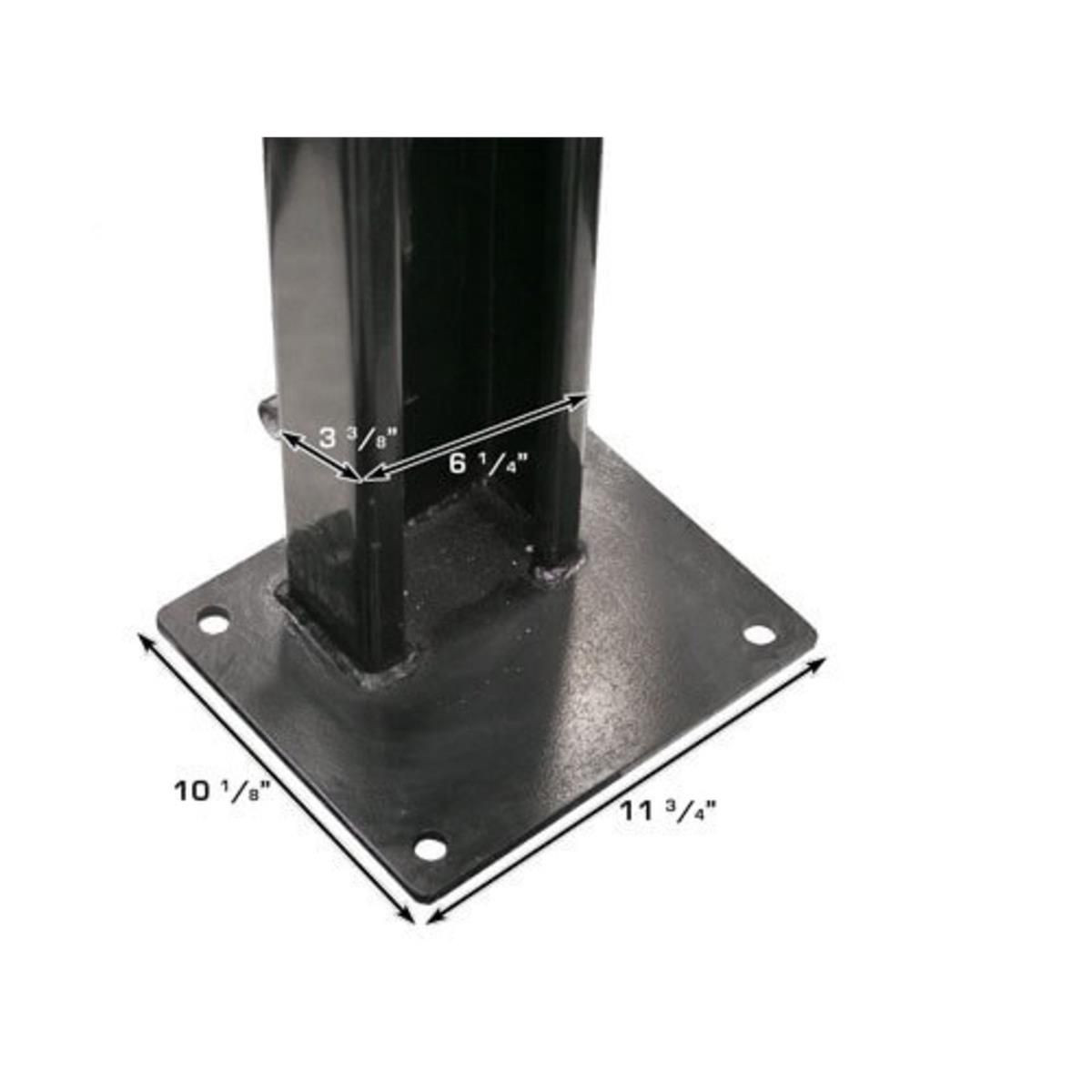

• Height Of Columns 98 1/2″ (8′ 2 1/2″)
• Overall Width (Without Motor) 104 1/2″ (8′ 8 1/2″)
• Overall Width (With Motor) 115″ (9′ 7″)
• Overall Length With Approach Ramp 206 3/4″ (17′ 2 3/4″)
• Approach Ramp 37″ (3′ 1″)

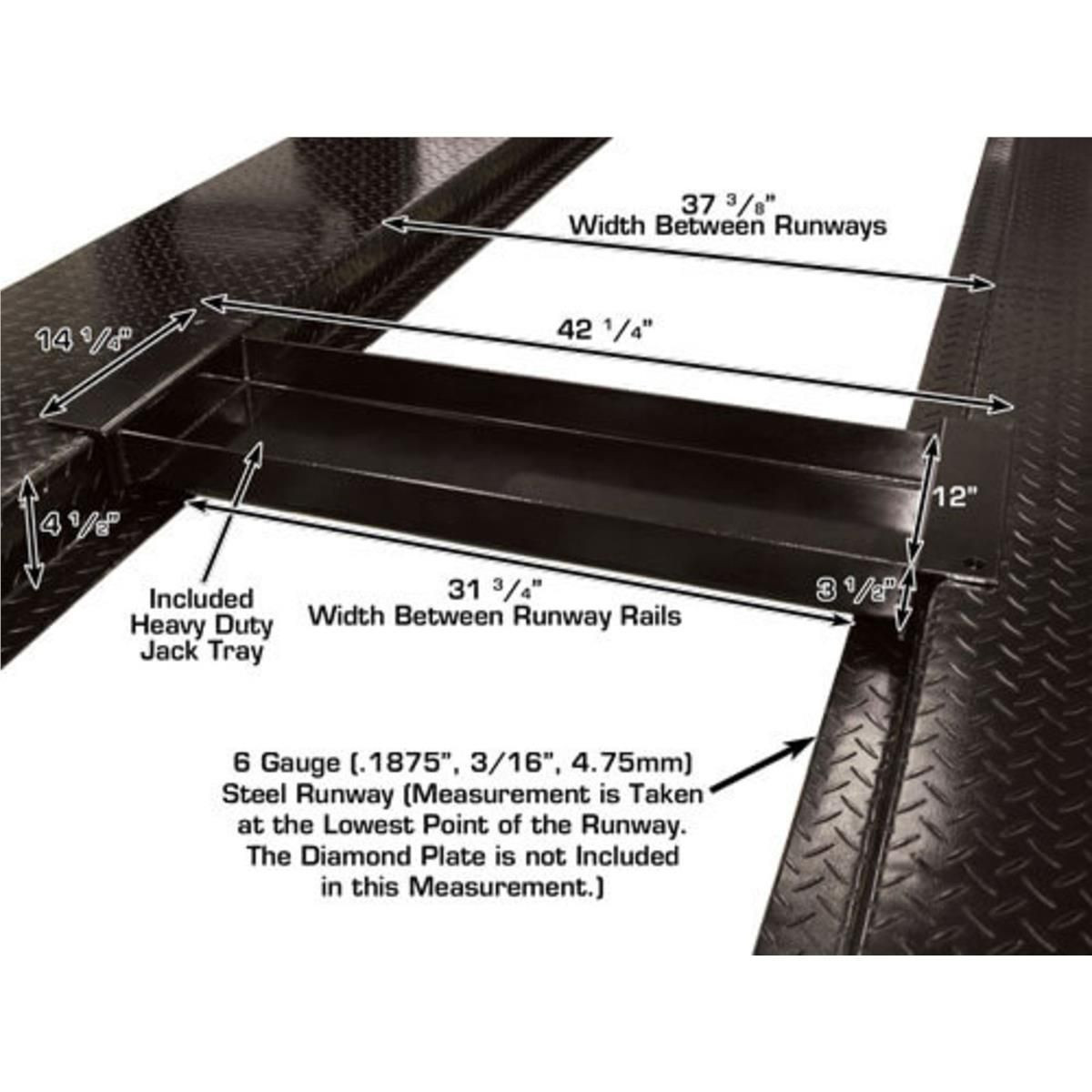

• Runway Width 21 1/4″ (w/ Rails) or 18 3/4″ (Driving Surface)
• Runway Length 165 3/4″ (13′ 9 3/4″)
• Runway Thickness 4 1/2″
• Width Between Runways 37″ (3′ 1″)
• Width Between Runway Rails 31 1/2″ (2′ 7 1/2″)
• Outside Runway To Outside Runway 74 5/8″ (6′ 2 5/8″)
• Clearance Between Columns 94 1/2″ (7′ 10 1/2″)
• Length Between Columns 157 1/2″ (13′ 1 1/2″)
• Maximum Wheel Base 153 1/2″ (12′ 9 1/2″)
• Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2″ (6′ 8 1/2″)
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 1,850 lb.

WARNING: cancer and reproductive harm – www.P65Warnings.ca.gov

Lifting Capacity:

8,000 lbs
