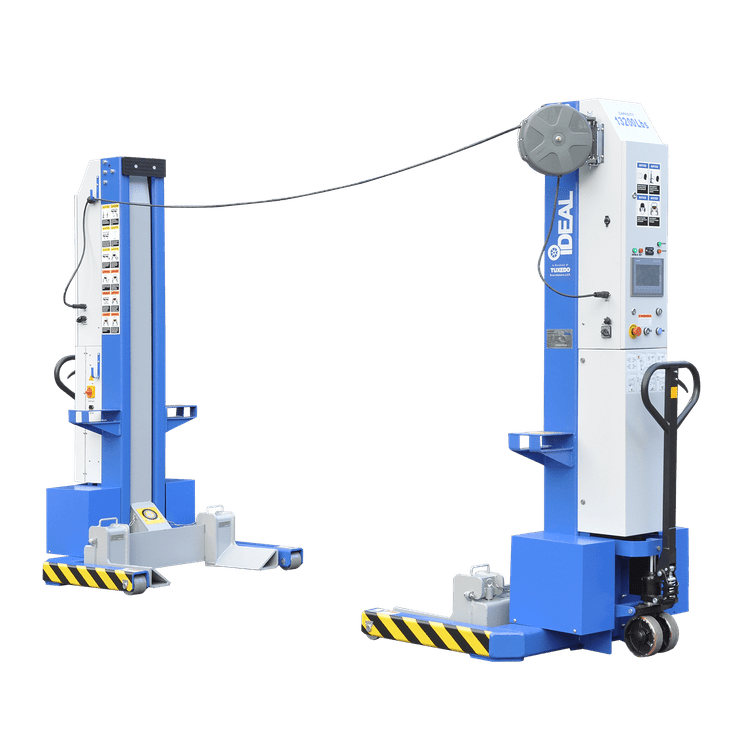

iDEAL MSC-13K-B-226 Mobile Column Lift, Two Column Set, 26,000 lbs.

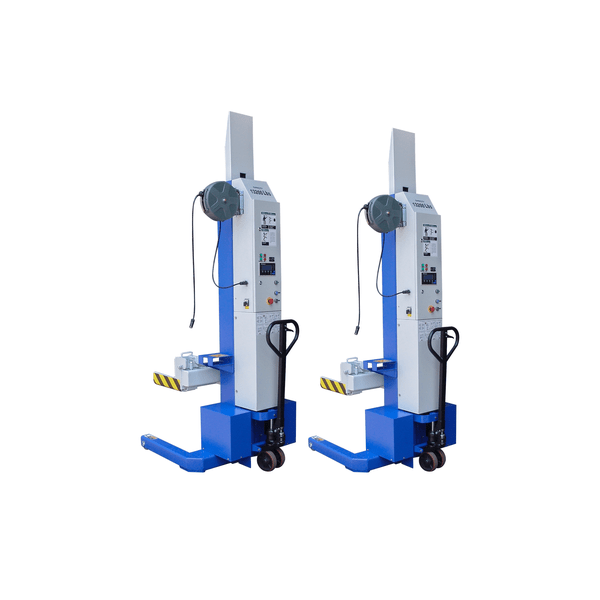

iDEAL MSC-13K-B-226 Mobile Column Lift, Two Column Set, 26,000 lbs. - Image 2

iDEAL MSC-13K-B-226 Mobile Column Lift, Two Column Set, 26,000 lbs.

Original price was: $16,760.00.Current price is: $10,056.00.

Authorized Dealer Full manufacturer warranty and support.
Manufacturer Warranty Warranty coverage included by brand.
Shipping & Availability Contact us for live warehouse availability.
SKU MSC-13K-B-226 Category

Product Details

iDEAL MSC-13K-B-226 26k Lbs Mobile Column Set

The MSC-13K-B can be purchased in sets of 2, 4, or 6 columns with a total capacity up to 78,000lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.

Features

  • Heavy Duty
  • Mobile Column Lift
  • Up To 78,000 Lbs. Capacity
  • Easy To Use Control Panel
  • Operable From Any Column
  • Adjustable Fork Accommodates Many Wheel Sizes
  • Direct Drive Hydraulic Cylinder
  • Independent Mechanical Locking System
  • Battery Operated With Onboard Charging System Sold Separately
  • Easily Moved For Use In Multiple Bays
  • Small Footprint Allows For Out Of The Way Storage
  • Available In Two, Four And Six Column Configuration
  • Optional Accessories For Expanded Service Operations

Specifications

Lift Model MSC-13K-B-226
Column Configurations 2 Column
Capacity 26,000 lbs.
Ac Power (Input, Per Column) 100-140VAC, 60Hz, 1PH
DC Power (Output, Per Column) 24VDC
Lifting Height 67.1″
Column Heights – Min/Max Min. 88.6″ / Max 155.5″
Column Width 44.1″
Fork Adjustable Range 6.3″ 22″
Fork Length 14″
Fork to Column Clearance 9.3″
Rise Time 75 Seconds
Descent Time 60 Seconds
Maximum Distance between Columns 32.8″
Minimum Concrete Surface Strength 3000PSI
Noise Level 70dB(A)
Set – Up / Operation Indoors
Battery Type (Not included) 12VDC Sealed Deep Cycle Battery ( BCI Group 31, AH-105)
Ship Weight 1,210 lbs per Column

Manual

iDEAL MSC-13K-B-226 26k Lbs Mobile Column Set Manual

Warranty

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
