Description

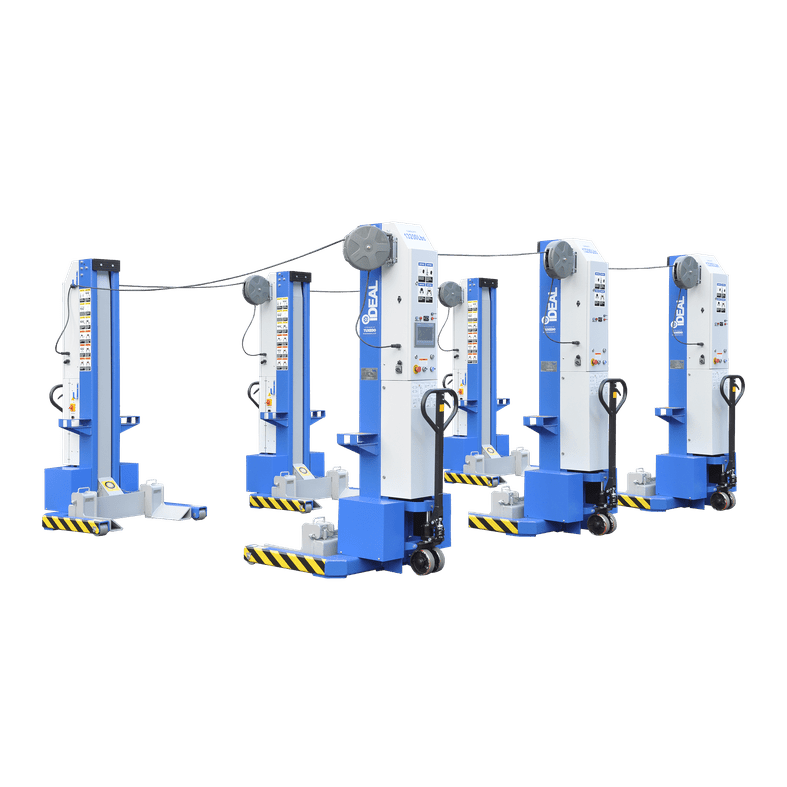

iDEAL MSC-13K-B-678 78,000 lbs Mobile Column Lift
The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.
Features
- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack-style wheel
- Heavy-duty hydraulic system
- Large carriage bearings provide durable, fast, and easy lifting
- LCD screen with keyboard offers easy-to-read visuals of settings and lifting height
- Independent mechanical locking system
- Emergency switch on each column provide the highest safety assurance
- Optional jack stands are available
- Up To 78,000 Lbs. Capacity
- Easy To Use Control Panel
- Operable From Any Column
- Adjustable Fork Accommodates Many Wheel Sizes
- Direct Drive Hydraulic Cylinder
- Independent Mechanical Locking System
- Battery Operated With Onboard Charging System Easily Moved For Use In Multiple Bays
- Small Footprint Allows For Out Of The Way Storage
- Available In Two, Four And Six Column Configuration
- Optional Accessories For Expanded Service Operations
- Batteries not included
Specifications
| Specifications | |
| Lift Models | MSC-13K-B-678 |
| Column Configurations | 6 Column |
| Capacity | 78,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH |
| DC Power (Output, Per Column) | 24VDC |
| Lifting Height | 67.1″ |
| Column Heights Min/Max | Min. 88.6″ / Max 155.5″ |
| Overall Width | 44.1″ |
| Fork Adjustable Range | 6.3″ 22″ |
| Fork Length | 14″ |
| Fork to Column Clearance | 9.3″ |
| Rise Time | 75S |
| Descent Time | 60S |
| Maximum Distance between Columns | 32.8′ |
| Minimum Concrete Surface Strength | 3000 PSI |
| Noise Level | 70 dB(A) |
| Set-Up / Operation | Indoors |
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
| Ship Weight | 1,210 lbs per Column |
Manual
iDEAL MSC-13K-B Mobile Column Lift, Six Column Set, 78,000 lbs. Manual
Warranty
iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
