Description
Description

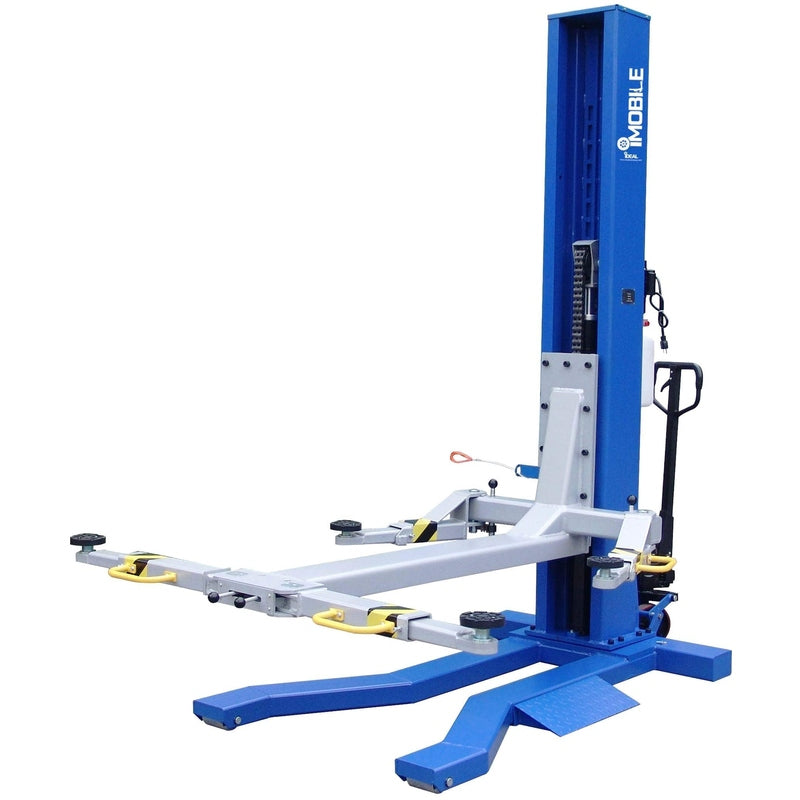

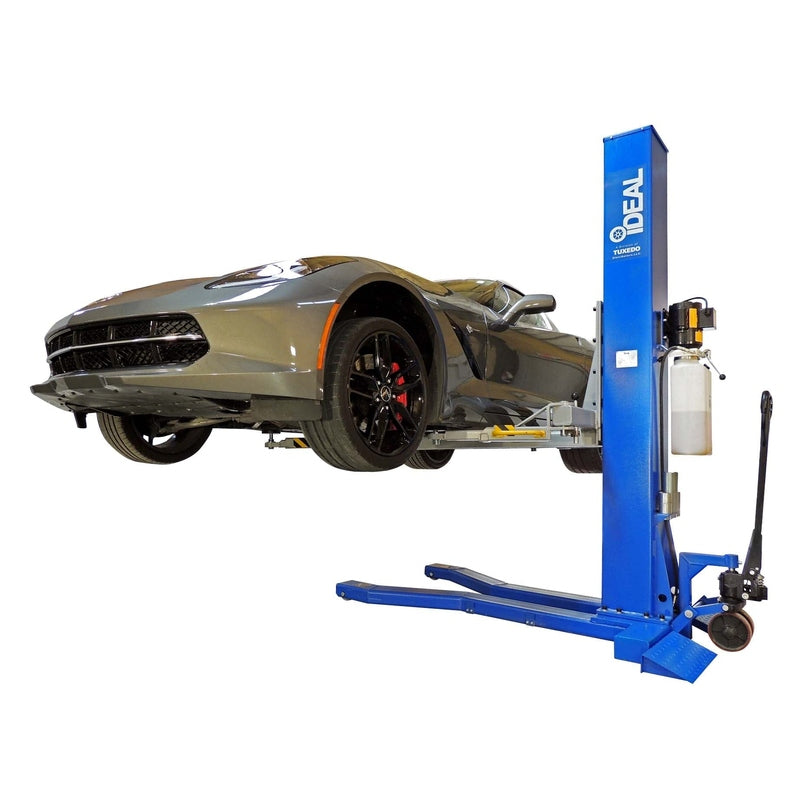

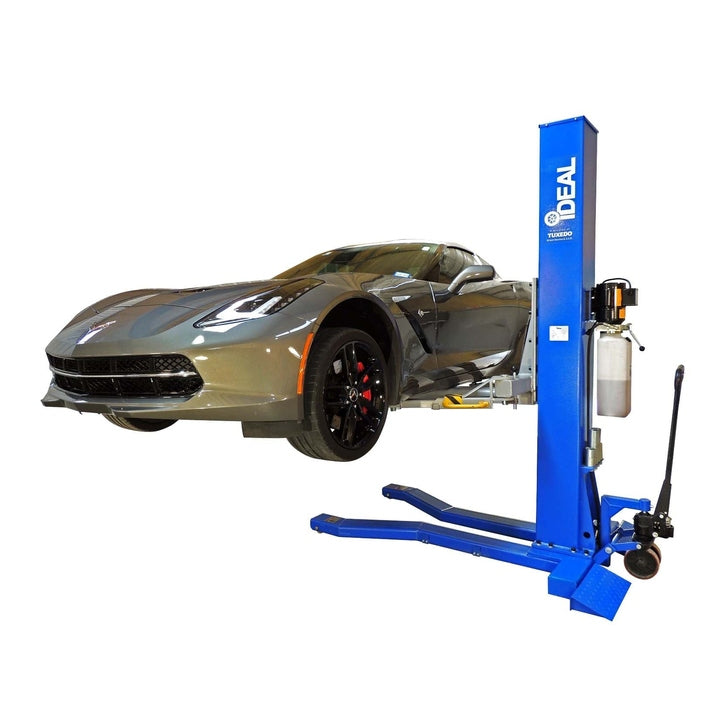

This is the perfect lift for limited space and situations where lift portability is more important than a floor-mounted two-post lift. The low profile design and drive-over ramps make drive-over vehicle loading possible, while the pallet jack feature also allows the lift to be positioned under the vehicle for loading.

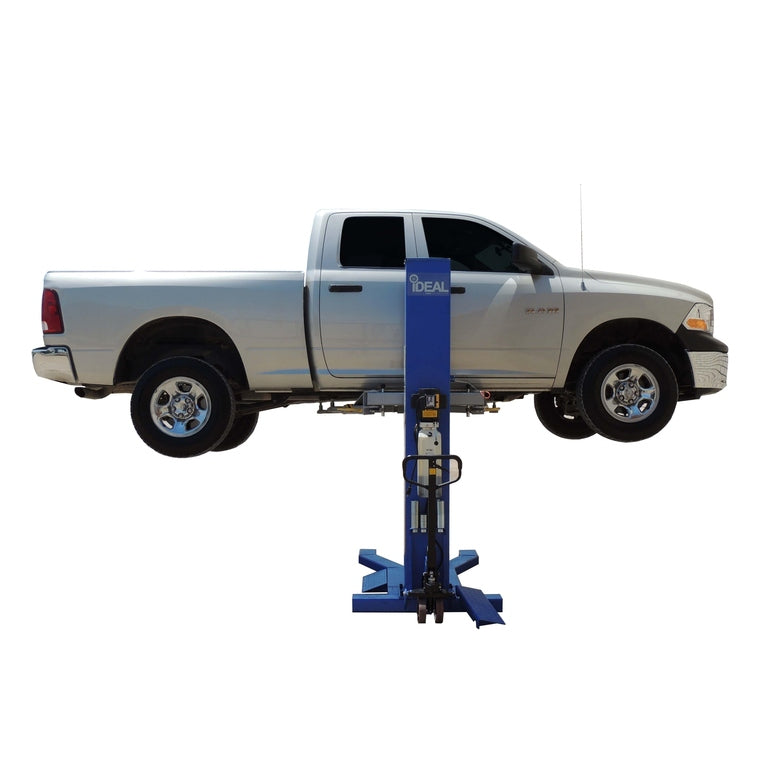

With a lifting height of 72 the iMOBILE MSC-6KLPs design allows access to the underside of most vehicles making it ideal for pre-service inspections or maintenance, while also providing outer vehicle access around most vehicles for wheel service repairs.
Due to the unique design and portability feature, the iMOBILE MSC-6KLP is the perfect solution for a homeowner with limited space or a shop looking to improve workflow or gain additional revenue from previously unusable space

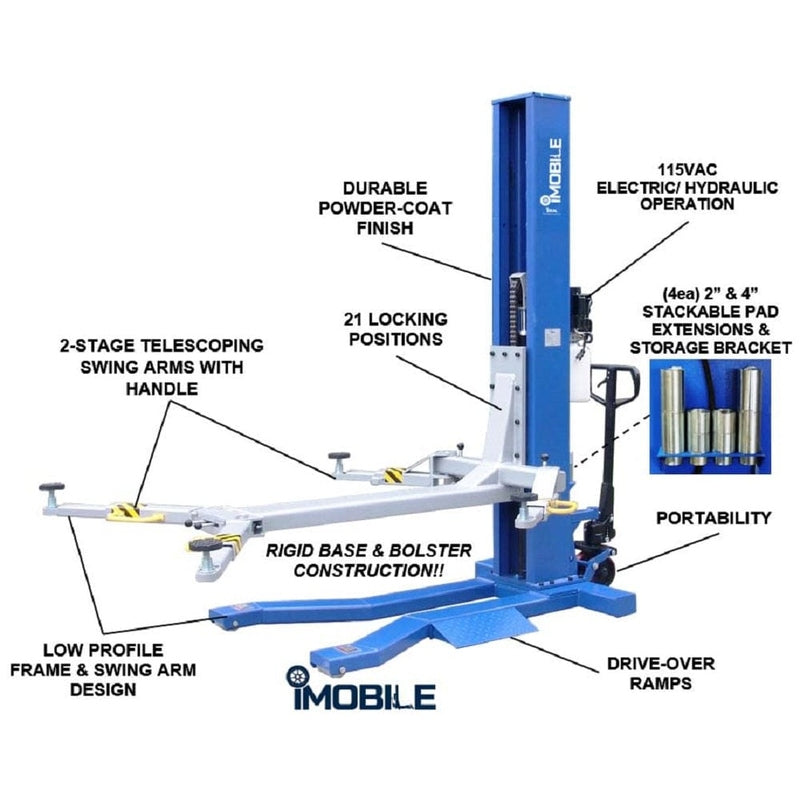

Features
- 6,000 lbs Capacity
- Low Profile Design under 4

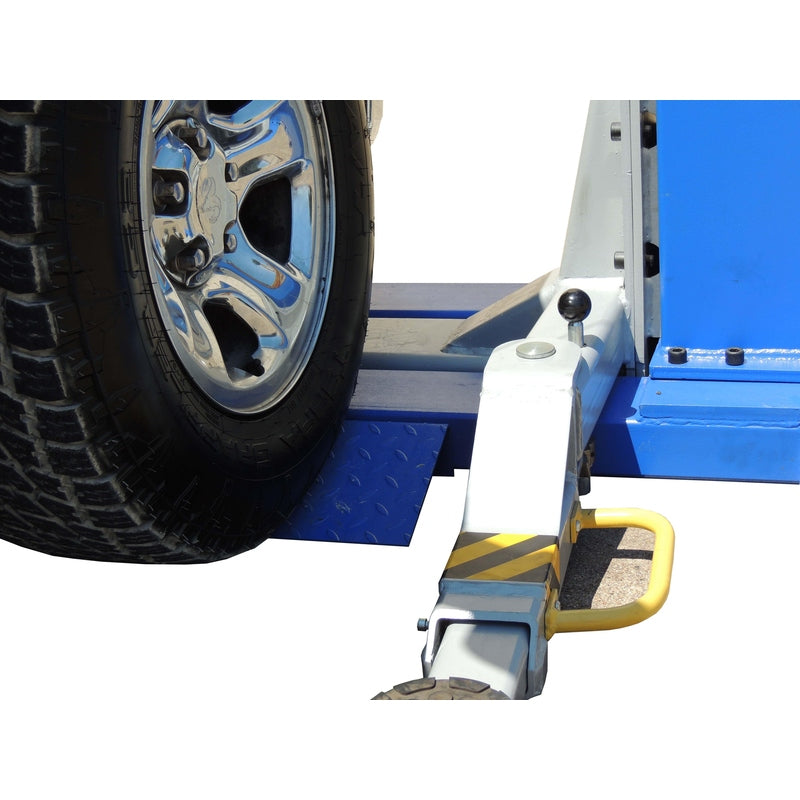

- Drive Over Ramps

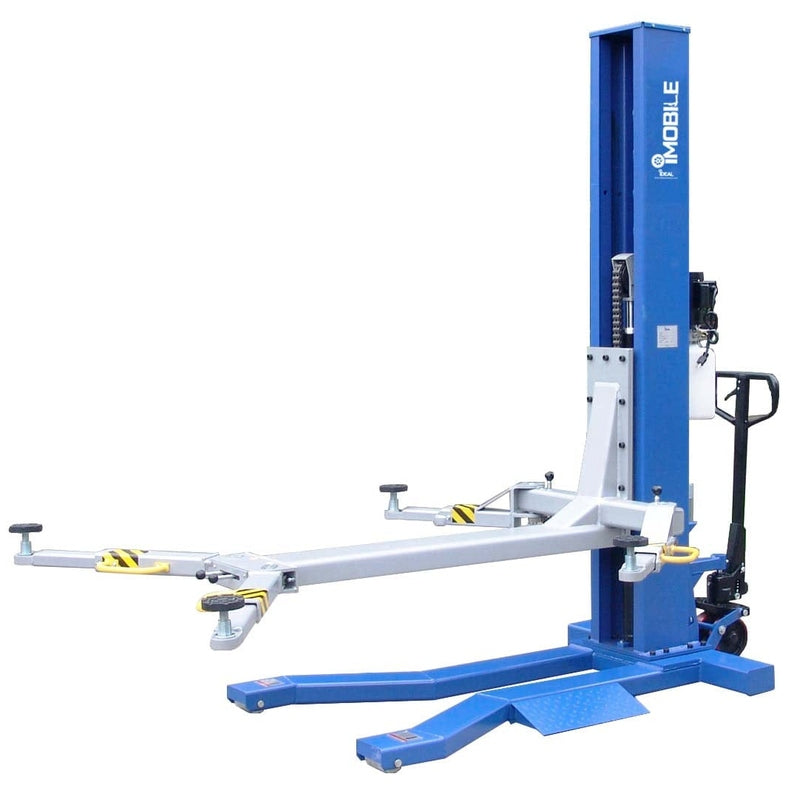

- Portability
- Rigid Base Construction
- Single Point Lock Release

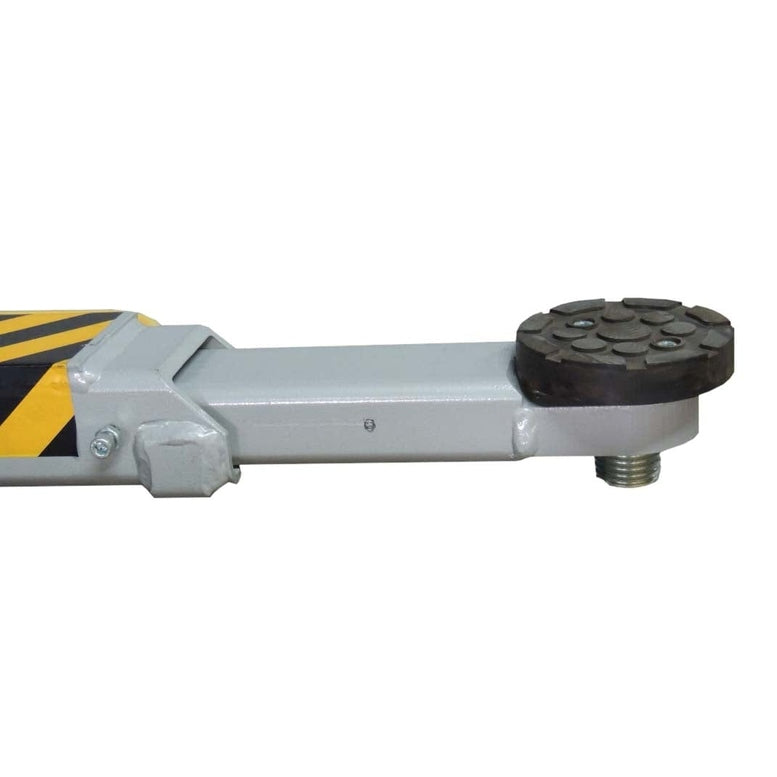

- Telescoping Two Stage Swing Arms

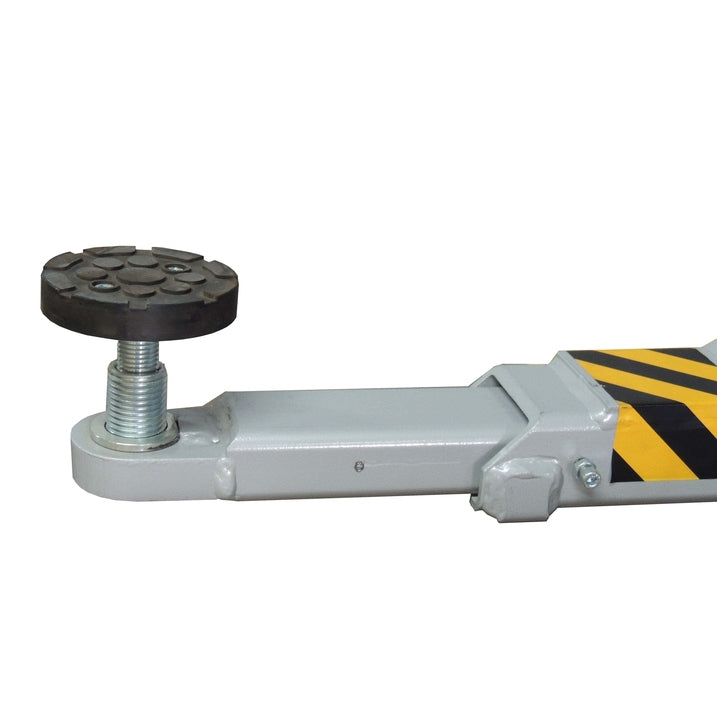

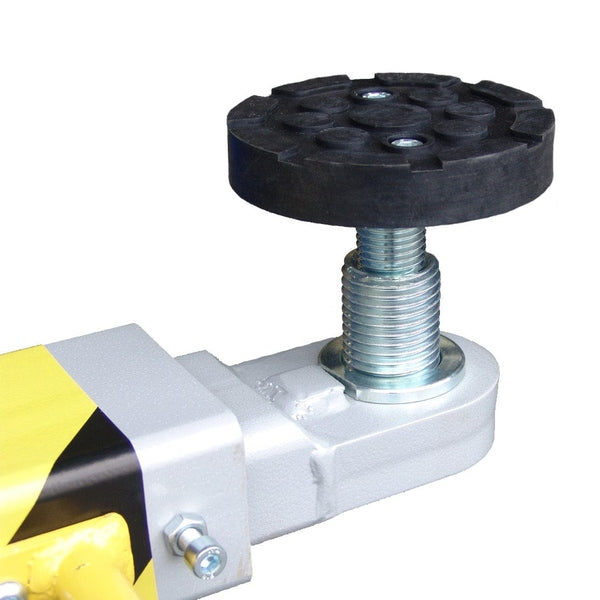

- Double Telescoping Screw Pads

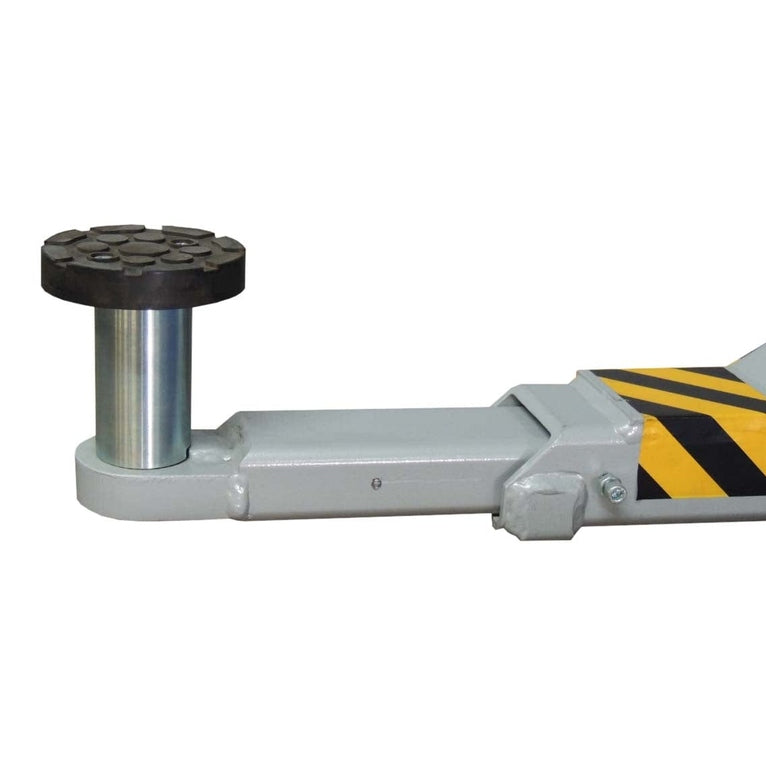

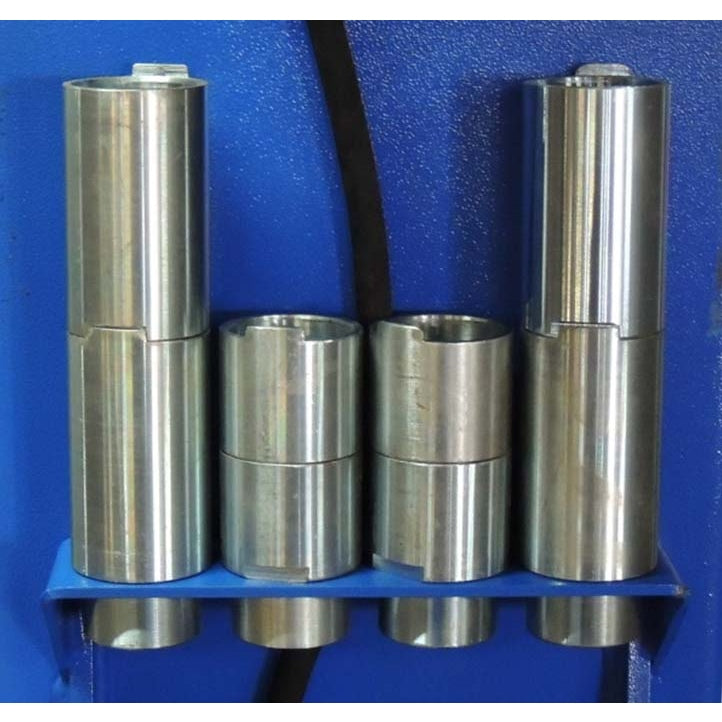

- Stackable pad height extensions (2 sets of 4ea @ 2 & 4)
- Heavy Duty Arm Restraints
- 21 Locking Positions
- Durable powder coat finish

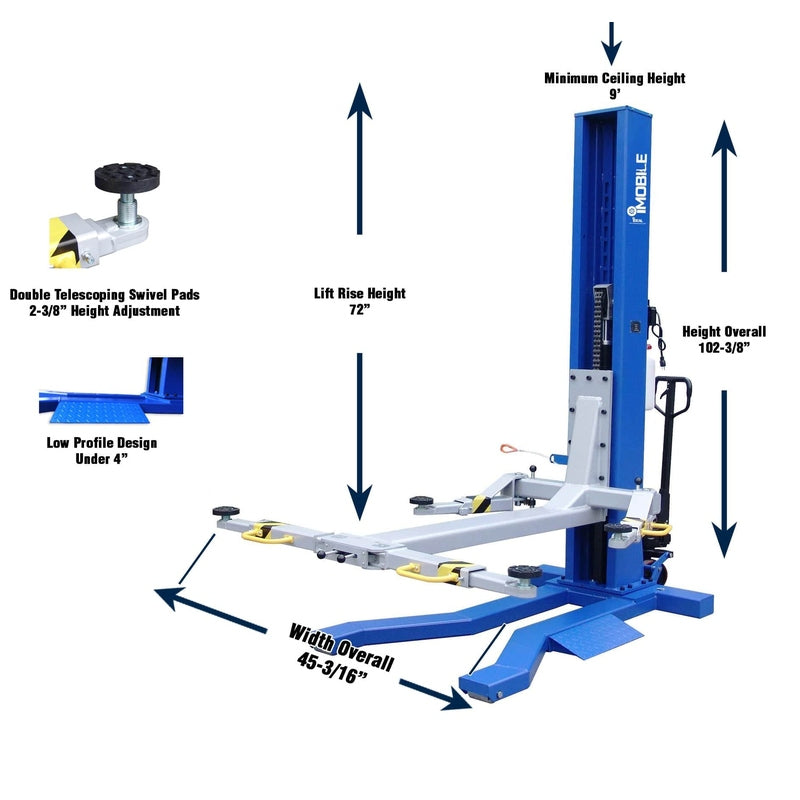

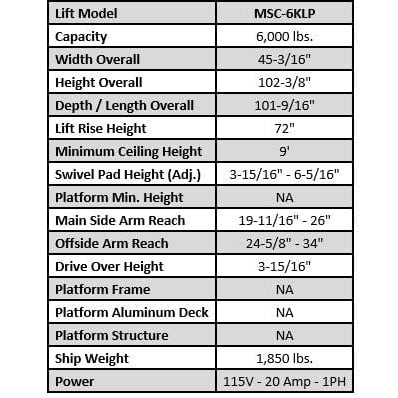

Specifications
| Lift Model | MSC-6KLP |
| Capacity | 6,000 lbs |
| Width Overall | 45-3/16″ |
| Height Overall | 102-3/8″ |
| Depth / Length Overall | 101-9/16″ |
| Lift Rise Height | 72″ |
| Minimum Ceiling Height | 9′ |
| Swivel Pad Height (Adj.) | 3-15/16″ 6-5/16″ |
| Platform Min. Height | NA |
| Main Side Arm Reach | 19-11/16″ 26″ |
| Off Side Arm Reach | 24-5/8″ 34″ |
| Drive Over Height | 3-15/16″ |
| Platform Frame | NA |
| Platform Aluminum Deck | NA |
| Platform Structure | NA |
| Ship Weight | 1,850 lbs |
| Power | 115V 15 Amp 1Ph |
Manual
iDEAL MSC-6KLP 6,000 lb Mobile Single Column Lift – Low Profile Manual
Warranty
iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
