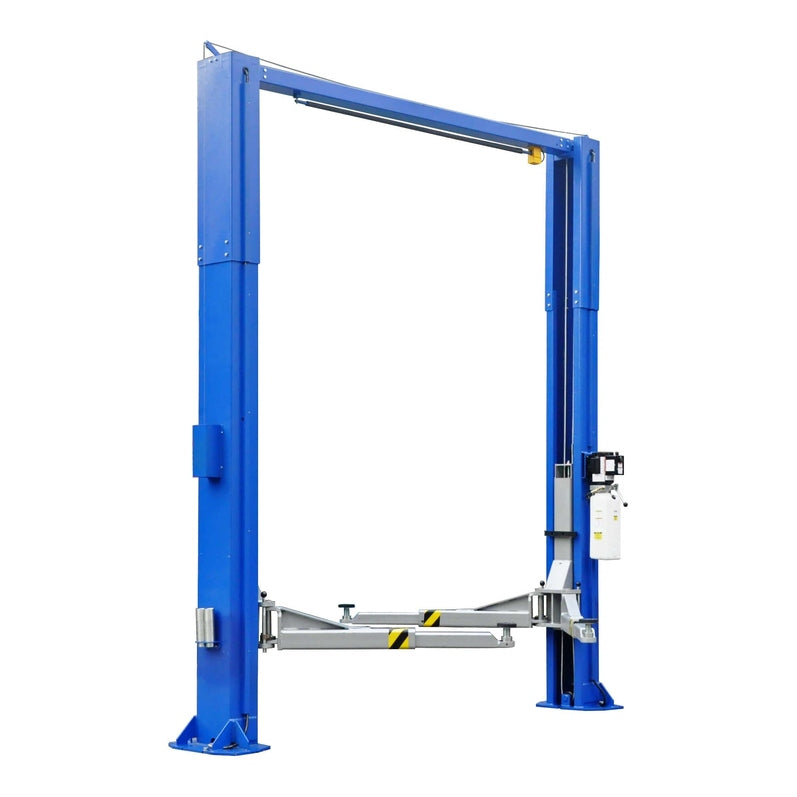

iDEAL TP12KSC-DX Heavy Duty 2 Post Clear Floor Lift

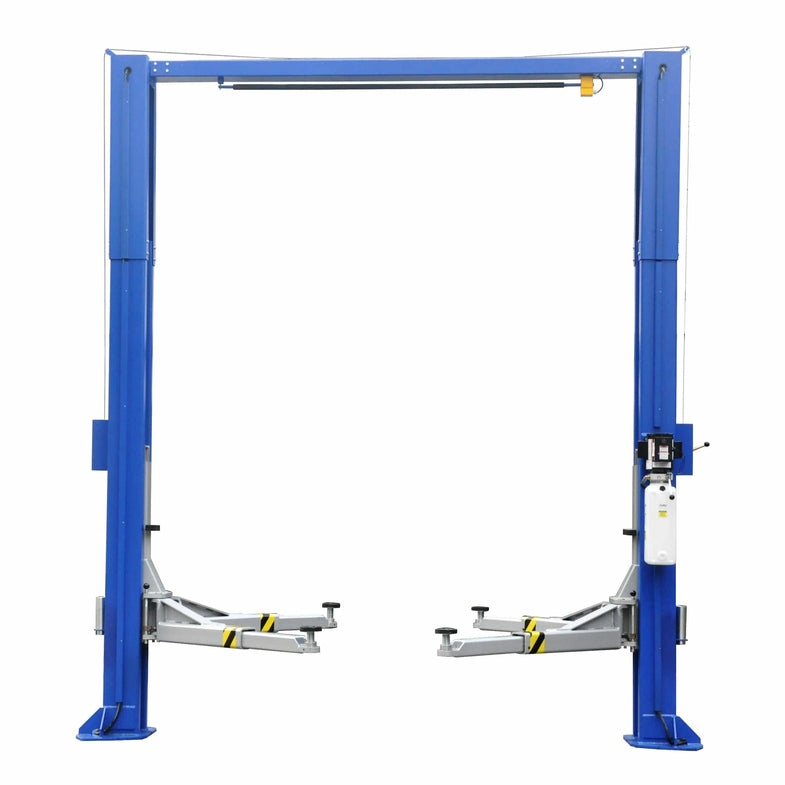

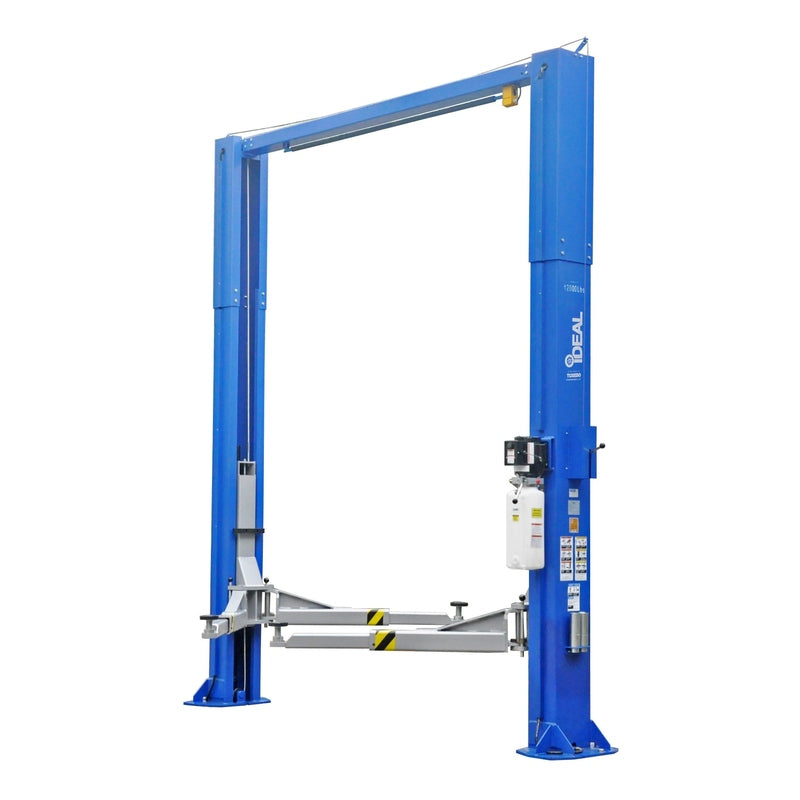

The New iDEAL TP12KSC-DX 12,000 lb. ALI Certified Heavy Duty Two Post Lift is a
premium symmetric design clear floor vehicle lift with the latest design features, now
including low-profile swing arms, adjustable swivel pads & single point cable lock
release.
The symmetric arm configuration provides stable lifting, making it perfect for
super duty & light duty trucks along with most passenger cars. The direct push drive
cylinders, hose & door guards, and automatic arm restraints complete the package for a premium, high-quality lift, all at a great value!
Features

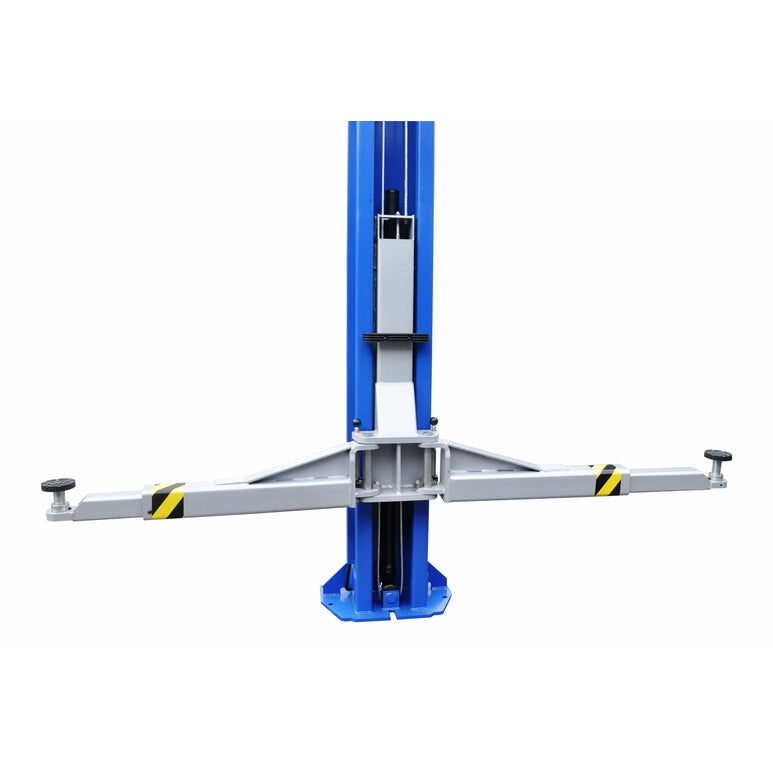

- New Low Profile Swing Arm Design

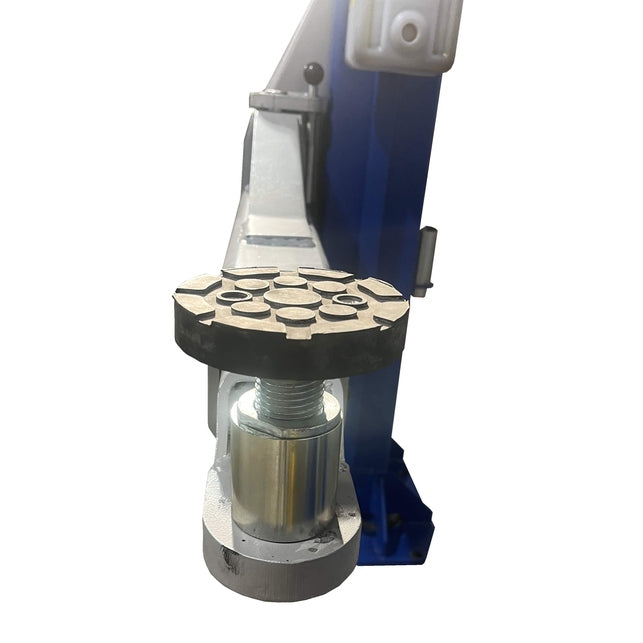

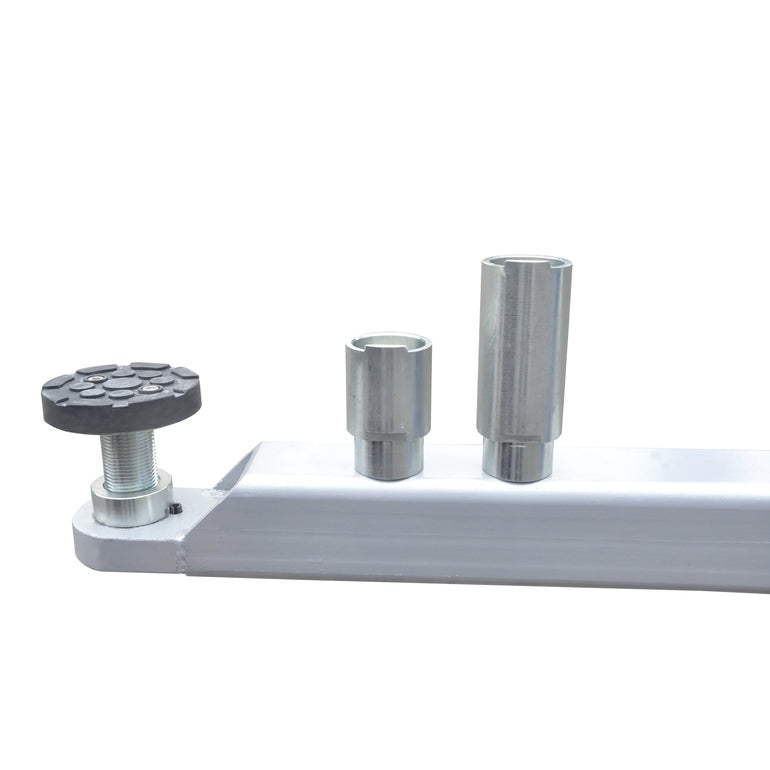

- New Adjustable Height Swivel Pads
- New 2.6″ & 5″ Stackable Height Adaptors

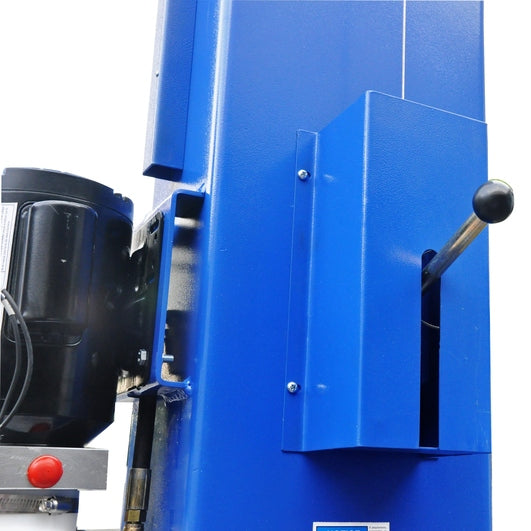

- New Single Point Cable Lock Release

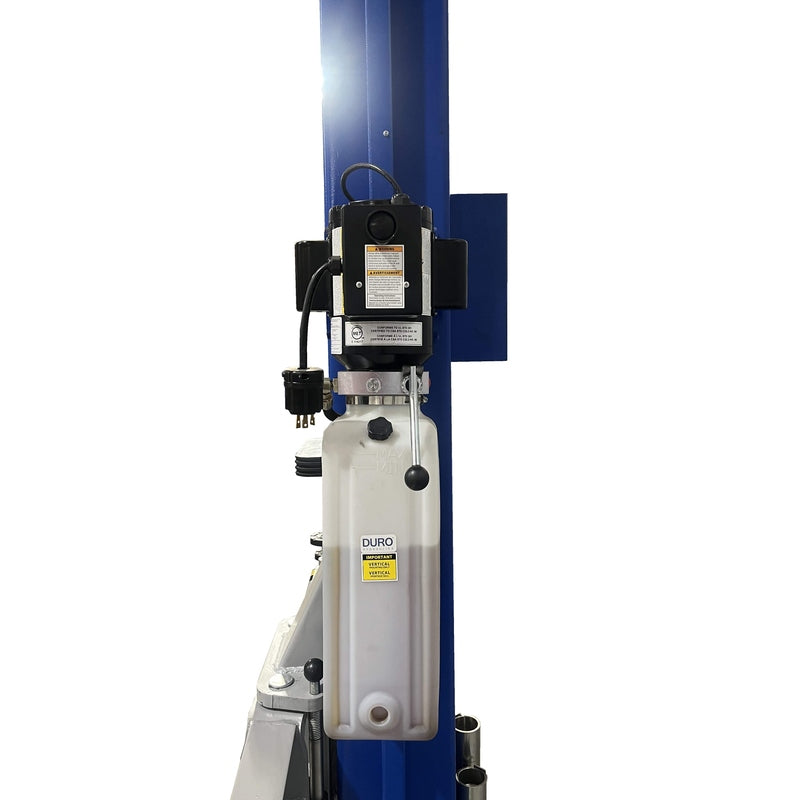

- New Met UL/CSA Certified Duro Power Unit

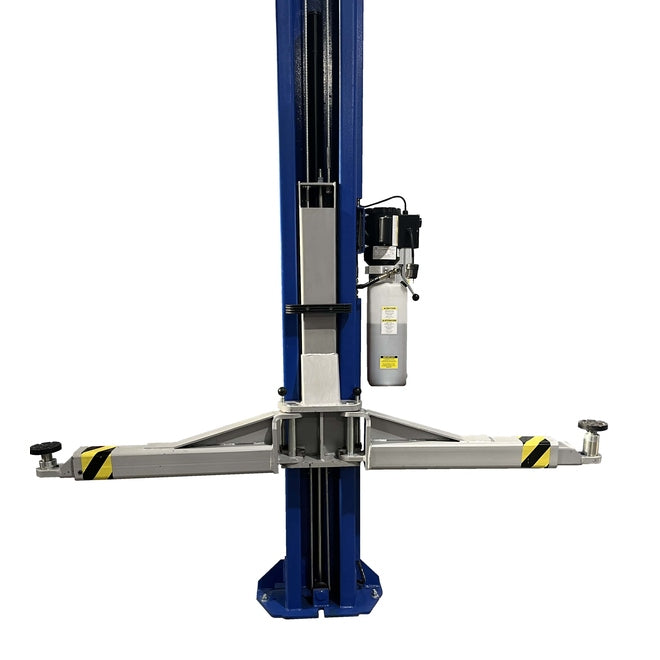

- Symmetric Lift Arms
- Automatic Arm Restraints

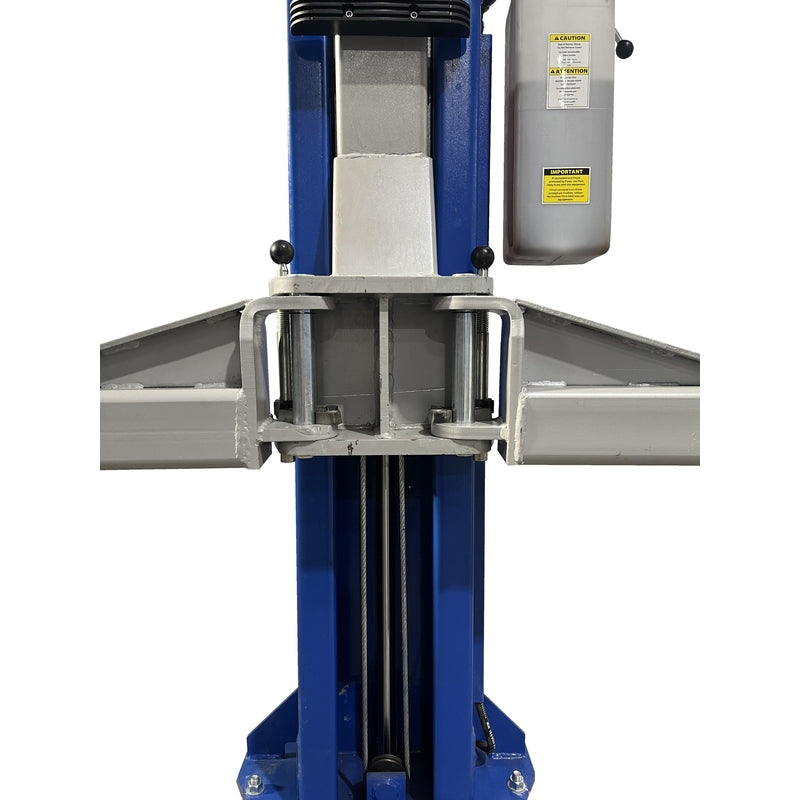

- Direct Push Drive Cylinders

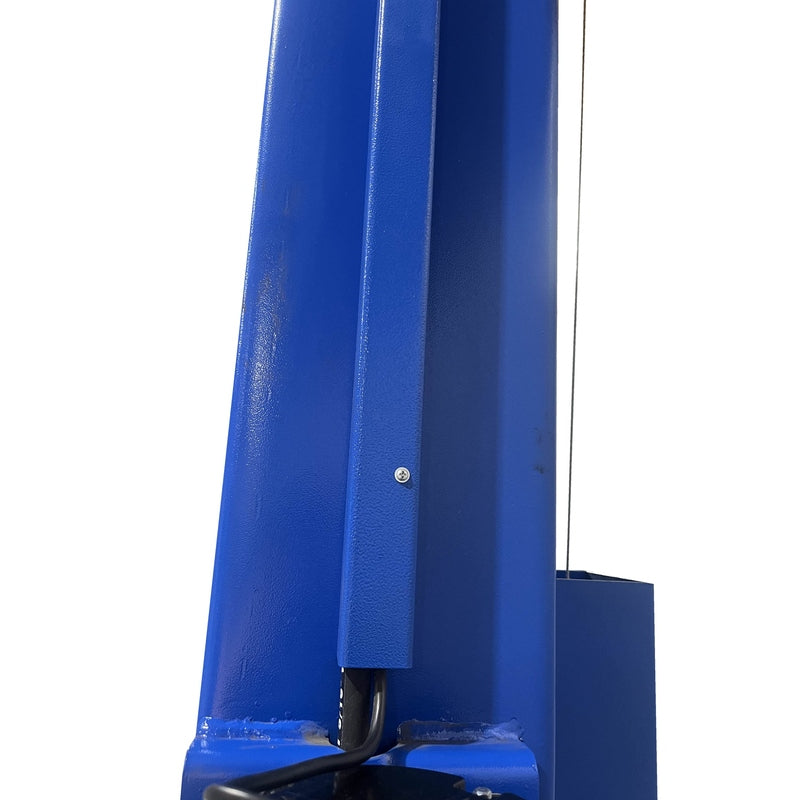

- External Hose Guards
- Rubber Door Guards
- Durable Powder-Coat Finish
- Ali Certified
- Limited Warranty Policy (5 Yr Structural / 1 Yr Parts)

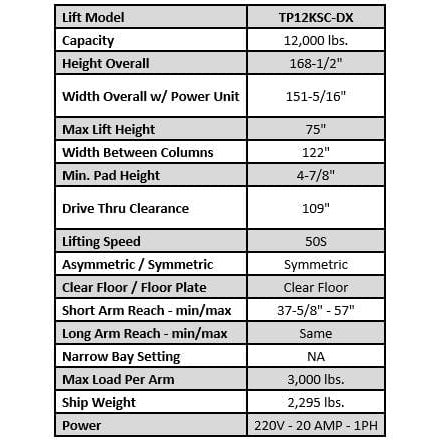

Specifications
| Lift Model | TP12KSC-DX |
| Capacity | 12,000 lbs |

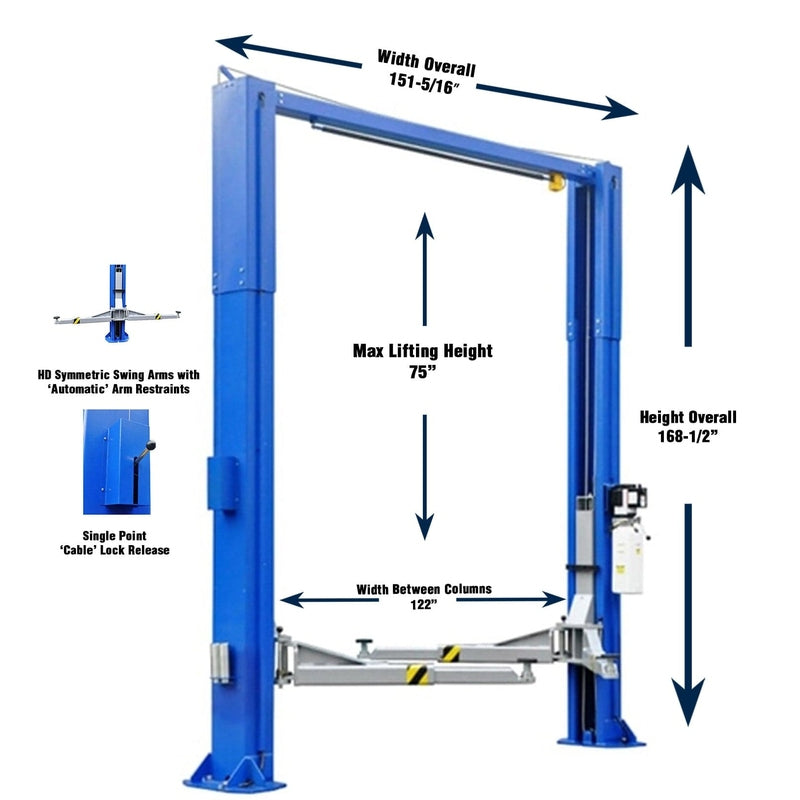

| Height Overall | 168-1/2″ |
| Width Overall w/ Power Unit | 151-6″ |
| Max Lift Height | 75″ |
| Width Between Columns | 122″ |
| Min. Pad Height | 4-7/8″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37-5/8″-57″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,000 lbs |
| Ceiling Height Required | 170″ |
| Ship Weight | 2,295 lbs |
| Power |
220V – 20 AMP – 1 PH
|
Manual
iDEAL TP12KSC-DX Heavy Duty 2 Post Clear Floor Lift Manual
Warranty
iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
