Description

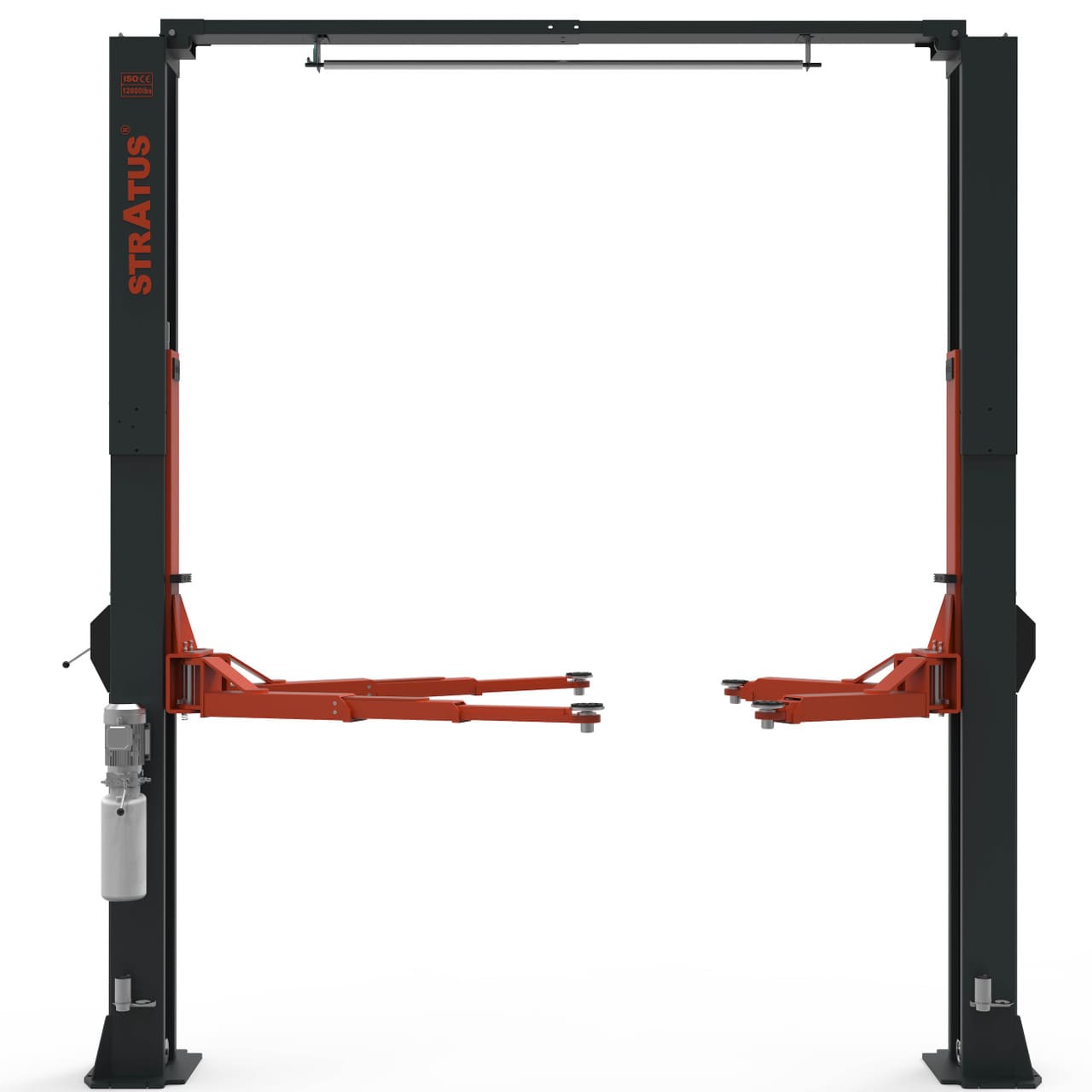

The Stratus SAE-C12X is a 12,000-lb two-post car lift built for shops that service three-quarter-ton and one-ton trucks, full-size vans, and SUVs alongside everyday passenger work. Its clear-floor overhead design keeps the bay floor between the columns completely open — there is no floor plate or cable trough to step over, so a transmission jack, oil drain, or creeper rolls straight through and you work the underside unobstructed.
A single-point manual release drops both columns together from one lever, and the direct-drive hydraulics raise a full load to working height in about 60 seconds. Twin overhead limit switches stop the carriages at the top of travel, and every unit is factory proof-loaded — a dynamic test at 115% of rated capacity and a static test at 150% — before it ships. The columns wear a two-tone powder-coat finish (Granite Gray RAL 7026 with Rein Orange RAL 2004) that stands up to brake fluid, degreaser, and daily shop traffic.
The SAE-C12X runs on 220V single-phase power through a 4 HP direct-drive motor and is backed by a 5-year structural warranty. It ships as freight with the anchor bolts, screw-up rubber pads, and truck adapters already in the crate.
Features
- Clear-floor overhead design — the bay floor between the columns stays open, with full under-vehicle access and nothing to trip over.
- Single-point manual release — one lever releases the locks on both columns together for a controlled descent.
- Direct-drive hydraulics — a 4 HP, 220V single-phase power unit raises a full load in about 60 seconds.
- Dual overhead limit switches — two top limiter switches stop the carriages at the top of travel.
- Factory proof-load tested — each lift is verified with a dynamic test at 115% of rated capacity and a static test at 150%.
- Telescoping swing arms — front and rear arms reach from 35 1/16″ to 70 7/8″ to spot a wide range of wheelbases and pickup points.
- Two-tone powder-coat finish — Granite Gray (RAL 7026) with Rein Orange (RAL 2004) for chemical and wear resistance.
What’s Included
- 4 screw-up rubber lift pads (60 mm / 2 5/16″ peg)
- 4 truck adapters, 4″ (60 mm / 2 5/16″ peg)
- 16 anchor bolts, 3/4″ diameter x 6″ long
- Owner’s, installation, operation, and maintenance manual
Sold separately: cradle pads (60 mm peg) and a tripod jack stand.

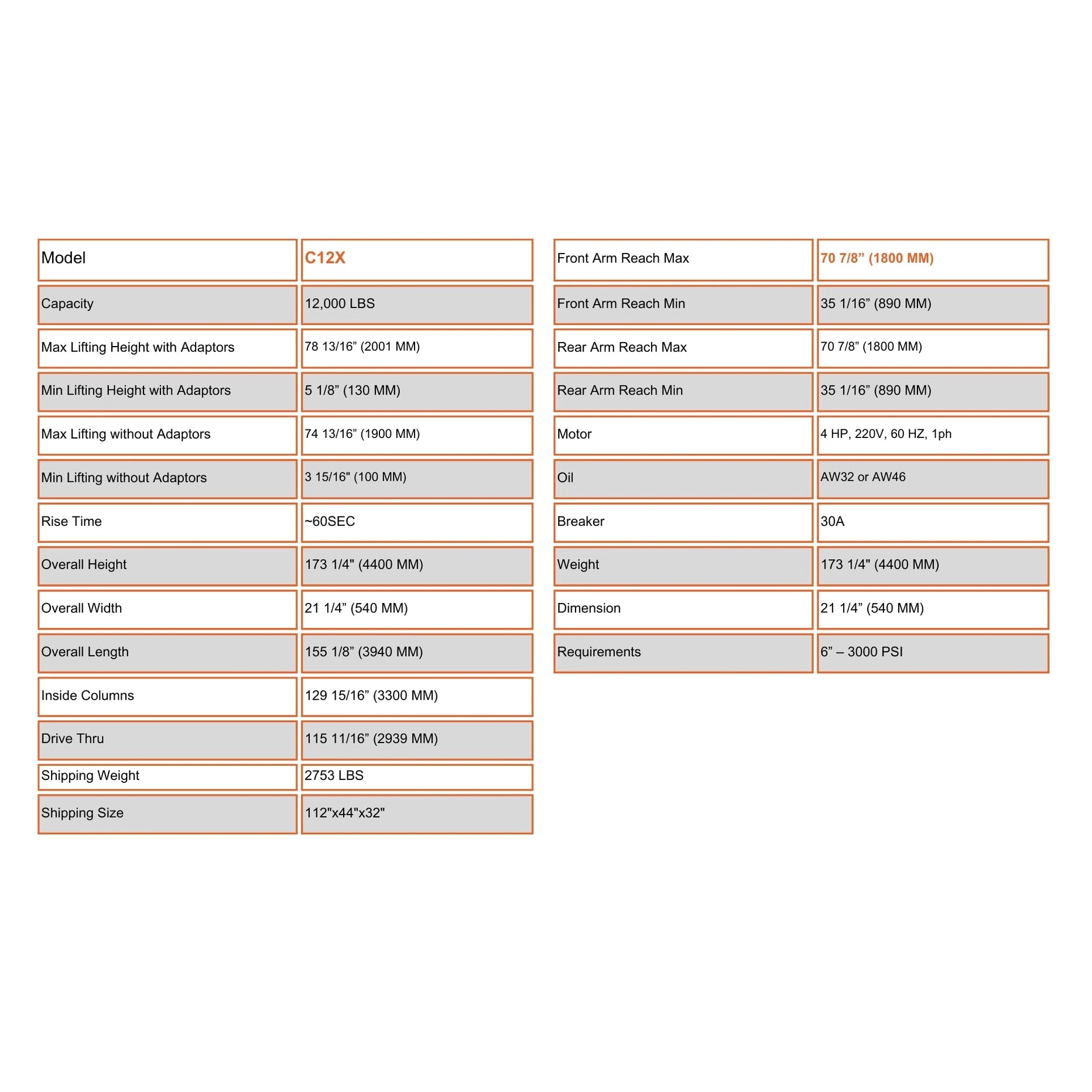

Specifications
| Stratus SAE-C12X 12,000 lb Two-Post Lift Specifications | |
|---|---|
| Lifting capacity | 12,000 lbs |
| Max lifting height (with adapters) | 78 13/16″ (2,001 mm) |
| Max lifting height (without adapters) | 74 13/16″ (1,900 mm) |
| Minimum pad height (without adapters) | 3 15/16″ (100 mm) |
| Minimum pad height (with adapters) | 5 1/8″ (130 mm) |
| Rise time | About 60 seconds |
| Overall height | 173 1/4″ (4,400 mm) |
| Overall width (outside of columns) | 155 1/8″ (3,940 mm) |
| Width between columns | 129 15/16″ (3,300 mm) |
| Drive-thru clearance | 115 11/16″ (2,939 mm) |
| Arm reach (front & rear) | 35 1/16″ – 70 7/8″ (890 – 1,800 mm) |
| Column base plate | 21 1/4″ x 16 9/16″ (540 x 420 mm) |
| Motor | 4 HP, 220V, 60 Hz, single-phase |
| Recommended breaker | 30A |
| Hydraulic fluid | AW32 or AW46 |
| Concrete requirement | 6″ minimum (6–12″ recommended), 3,000 PSI, cured at least 28 days |
| Anchor bolts | 3/4″ diameter x 6″ (16 included) |
| Shipping weight | 2,753 lbs |
| Shipping dimensions | 112″ x 44″ x 32″ |
| A 220–250V, 30A plug is not included with the lift. Hydraulic fluid is not included. | |
Warranty
Stratus backs the SAE-C12X with a 5-year warranty on the lifting structure, 3 years on hydraulic components, and 2 years on electrical parts.
FAQ
Will the SAE-C12X lift my heaviest truck?
Yes — it is rated at 12,000 lbs, which covers full-size three-quarter-ton and one-ton pickups, full-size vans, and SUVs with margin to spare on everyday passenger vehicles. Each lift is proof-load tested at 115% of rated capacity (dynamic) and 150% (static) at the factory.
What concrete does it need?
Stratus specifies a minimum of 6 inches of reinforced concrete (6 to 12 inches recommended) at 3,000 PSI, cured for at least 28 days. The lift anchors with the 16 included 3/4″ x 6″ bolts, torqued to about 90 ft-lb (no less than 80, no more than 110).
What electrical service does it require?
The 4 HP motor runs on 220V single-phase power on a 30A breaker. The unit ships without a plug — you supply a 220–250V, 30A plug — and the supply is three-wire (green/yellow is ground, the other two are hot). The factory power cord reaches about 11 feet, so plan the disconnect location accordingly. Have a licensed electrician make the connection.
How much overhead clearance do I need?
The lift stands 173 1/4″ (about 14 feet 5 inches) at the overhead beam. Confirm your ceiling clears that height plus room for the tallest vehicle you plan to raise.
Is the SAE-C12X ALI or ANSI certified?
Stratus does not list the SAE-C12X as ANSI/ALI ALCTV or ANSI/UL 201 certified, and the manufacturer notes that not all of its lift models meet those standards. The unit is proof-load tested to 115% (dynamic) and 150% (static) of rated capacity. If third-party certification is a requirement for your shop, confirm the current certification status with MGS before ordering.
How does it ship, and can I install it myself?
The SAE-C12X ships by LTL freight, crated at about 2,753 lbs and roughly 112″ x 44″ x 32″. Delivery is to a commercial address or freight terminal; residential and lift-gate delivery may carry additional carrier fees, and the buyer arranges unloading. Installation and electrical hookup are the buyer’s responsibility — have a licensed electrician wire the disconnect. Contact MGS at sales@mygaragesupplies.com or 307-381-1810 to confirm delivery options and scheduling.
Can I adjust the lifting speed?
Yes. The oil-flow valve adjusts travel speed — tightening it (clockwise) slows the lift, loosening it (counter-clockwise) speeds it up.
