Description
Description

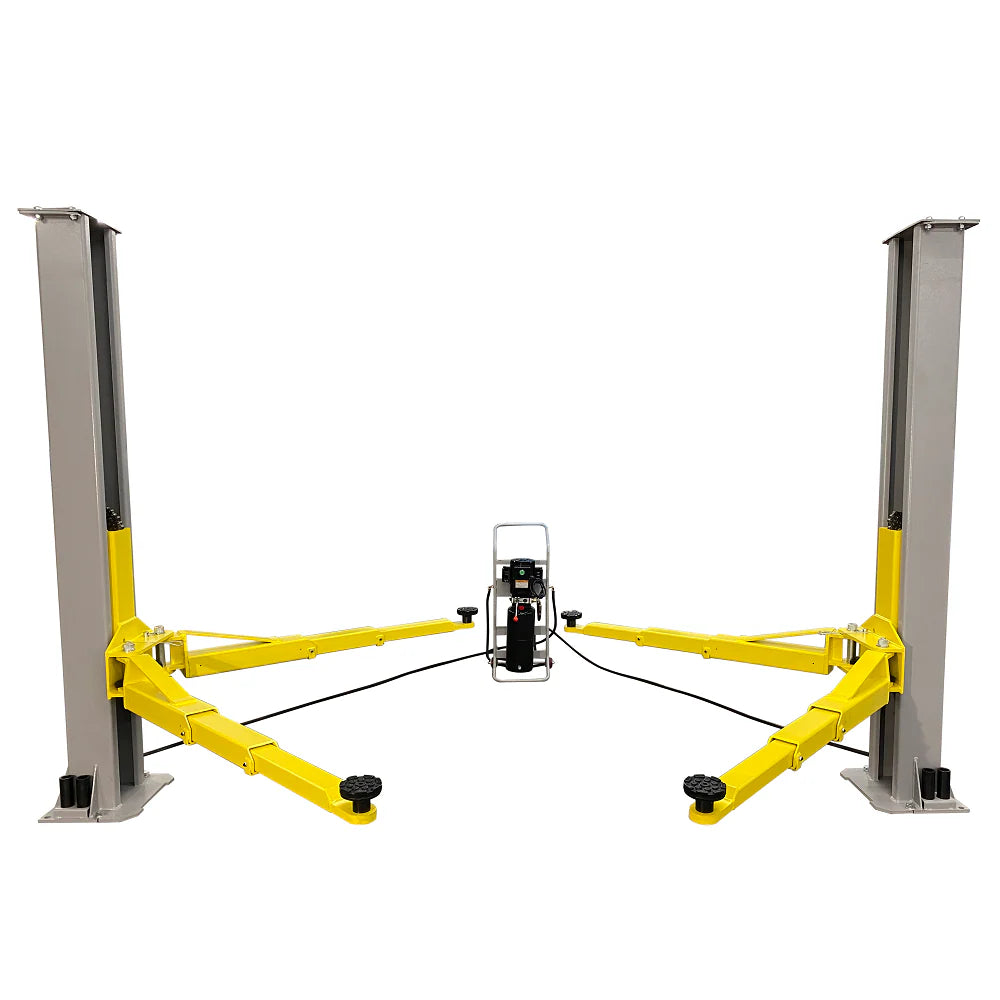

The Triumph C-7000 is a portable two-post automotive lift rated for 7,000 lb. Because it isn’t limited by cables, each post can be set at any width from 48 to 120 inches (center to center), so the same lift handles compact cars and full-size light trucks without a fixed footprint.
A single operator can take the C-7000 down and store it in under 10 minutes. The flush mounting system keeps the anchor points level with the floor, so you keep 100% of your usable floor space when the lift is out of the way — practical for a shop or garage that also has to store or park vehicles.
With an overall height of 7’11” (95″) and a maximum lifting height of 69 inches, the C-7000 fits under lower ceilings that rule out taller two-post lifts, while still leaving room to stand and work underneath. It runs on standard 110V power, and a welded automatic locking ladder system holds the load at height.
Features

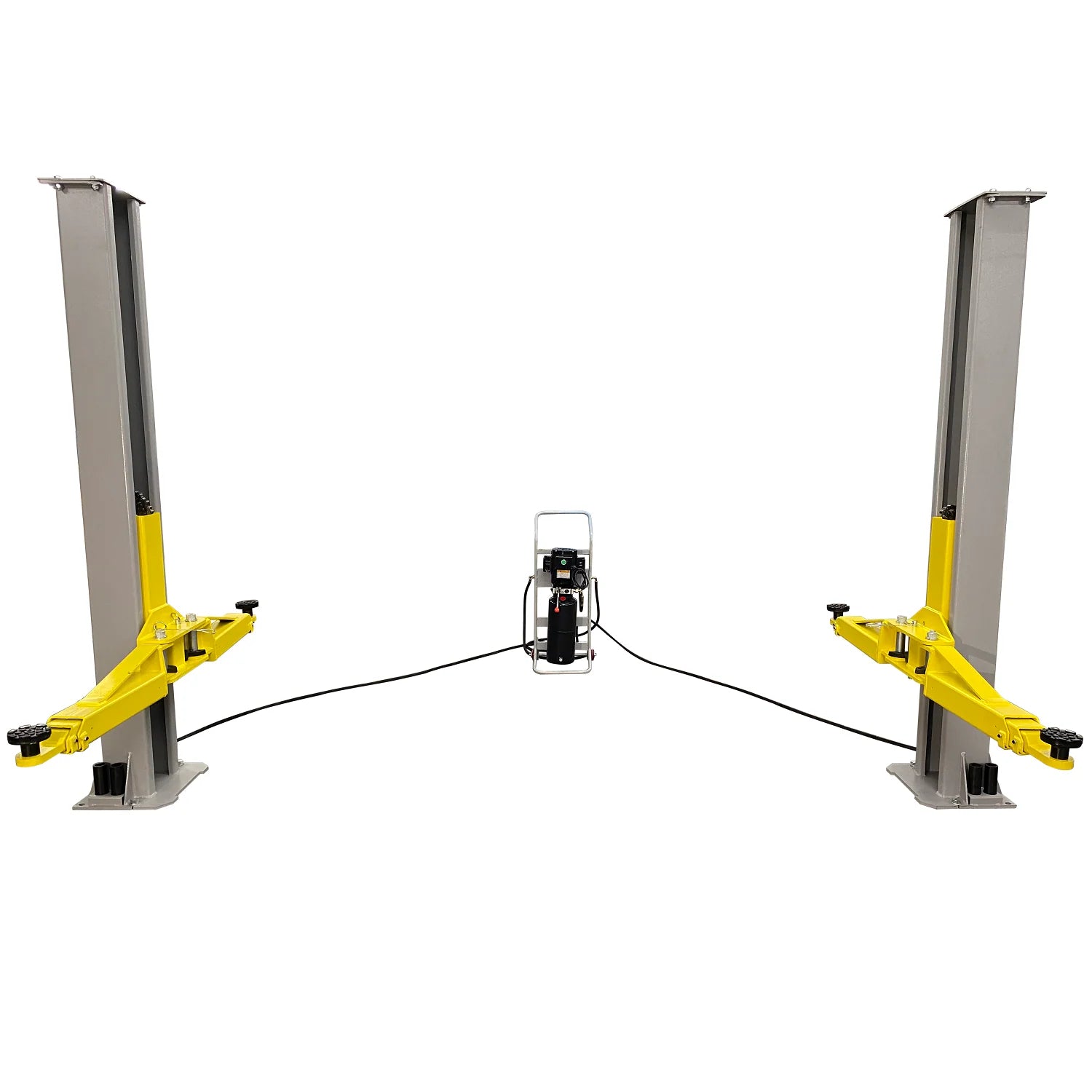

- Cable-free width adjustment — posts mount at any width up to 120 inches (center to center)
- Portable: disassembles and stores in under 10 minutes by a single operator
- Flush mounting system preserves 100% of usable floor space
- Welded automatic locking ladder system
- Runs on standard 110V power
- Includes 3″ and 6″ pad extensions / truck adapters with rubber lifting pads
What’s Included
- Two lifting posts (columns)

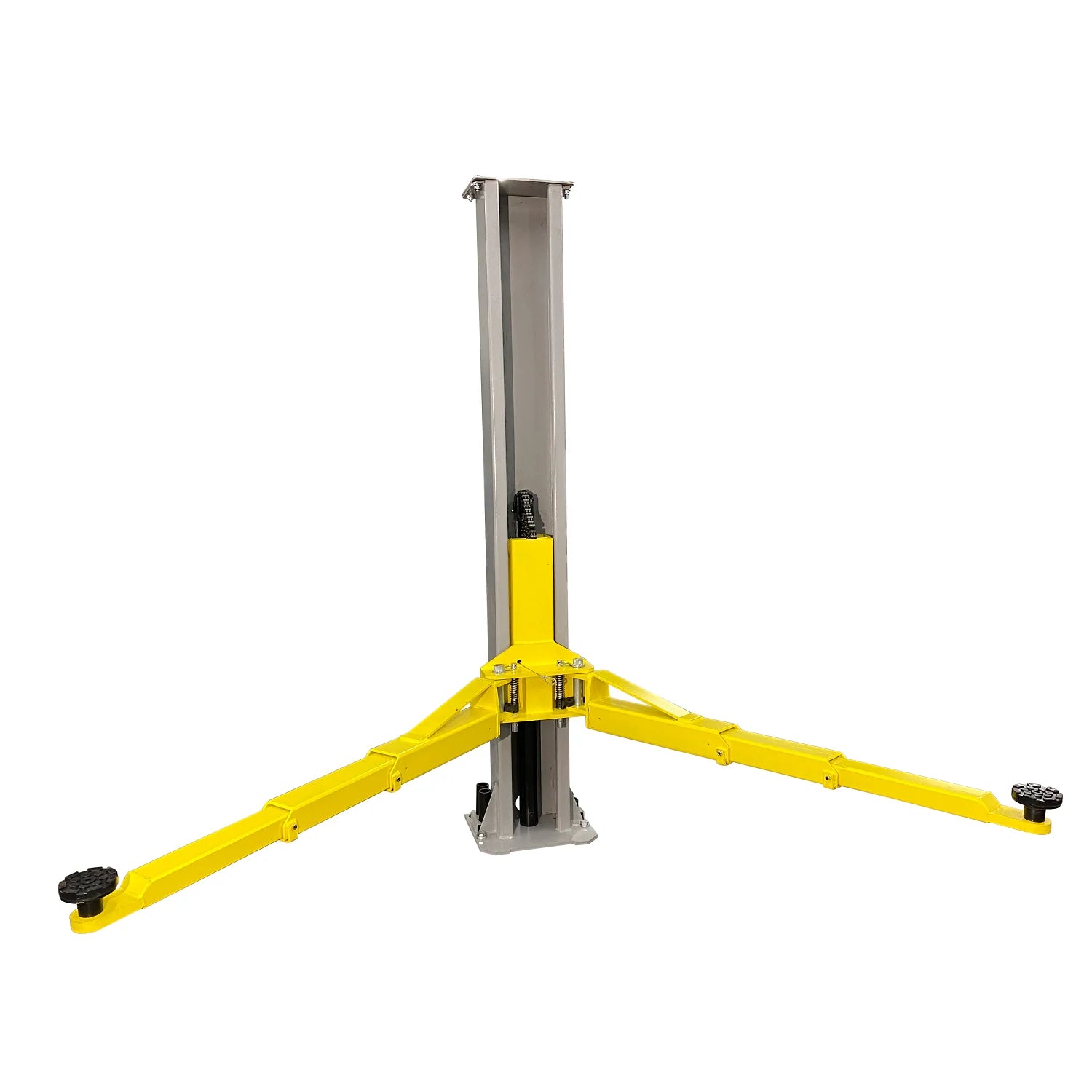

- Swing arms with rubber lifting pads
- 3″ and 6″ pad extensions / truck adapters
- 110V hydraulic power unit
Column casters (wheels mounted to the back of the posts) are not included.
Specifications
| Triumph C-7000 Specifications | |
|---|---|
| Capacity | 7,000 lb |
| Lifting Height | 69″ |
| Overall Height | 7’11” (95″) |
| Width Between Posts | 48″–120″ (center to center) |
| Base Plate Size | 18″ x 15″ |
| Lowered Arm Clearance | 4.5″ |
| Pad Extensions / Truck Adapters | 3″ and 6″ |
| Locking System | Automatic locking ladder system (welded) |
| Power | 110V |
Warranty
The Triumph C-7000 is covered by a 1-year parts warranty (parts only, no labor). If something fails, you call MGS, we troubleshoot over the phone, and the needed part ships free of charge by ground service. Labor to install the replacement part isn’t covered, and rubber lifting pads are not covered. Hydraulic cylinders carry a 30-day full warranty; after 30 days, a seal kit is provided.
FAQ
Will the C-7000 fit under a low ceiling?
Its overall height is 7’11” (95″), lower than many two-post lifts, so it fits shops and garages with limited ceiling height while still lifting to 69 inches.
What power does it need?
The C-7000 runs on standard 110V power and does not require a 220V service.
Can one person set it up and move it?
Yes. Because it isn’t limited by cables, it mounts at any width up to 120 inches, and a single operator can take it down and store it in under 10 minutes.
How is the lift delivered?
It ships by LTL freight on a 48-foot semi. You are responsible for unloading — the driver does not unload it, and liftgate service isn’t available for auto lifts, so you’ll need a forklift, Bobcat, tractor, tow truck, or backhoe on site. If you can’t unload at your location, we can route it to the carrier’s nearest freight terminal for pickup with a trailer or van. You schedule the delivery appointment directly with the freight company.
Documents
Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
Reviews
There are no reviews yet.
