Description
Tuxedo Light Duty 2 Post Lift 9,000 lb. Capacity

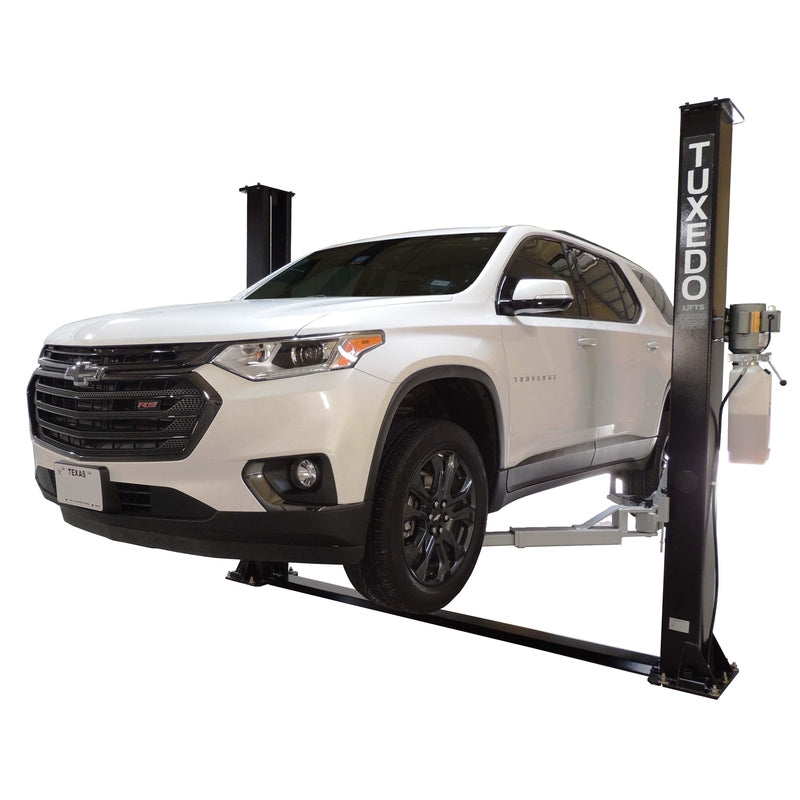

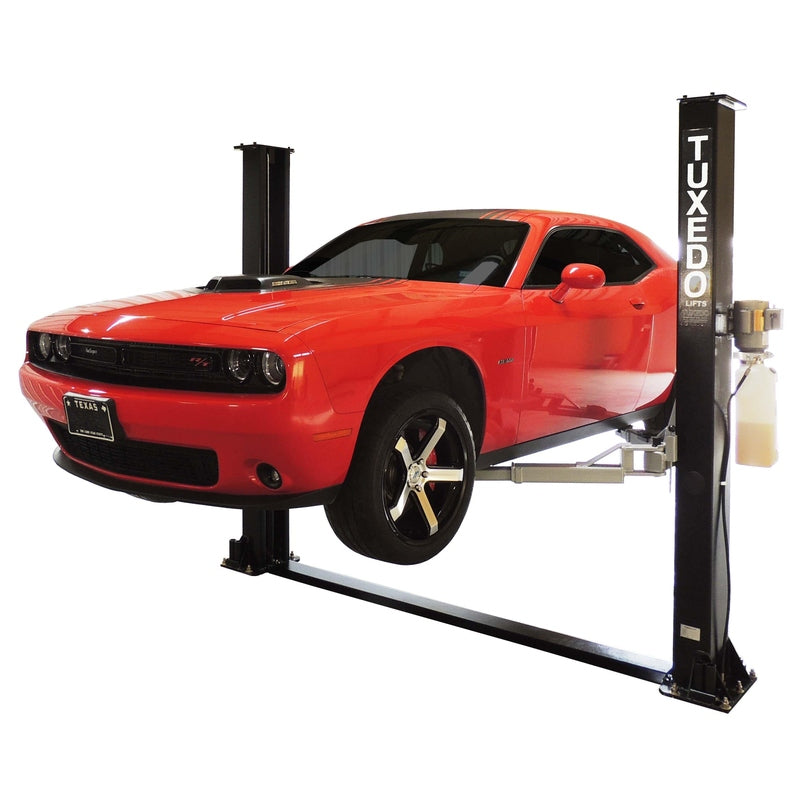

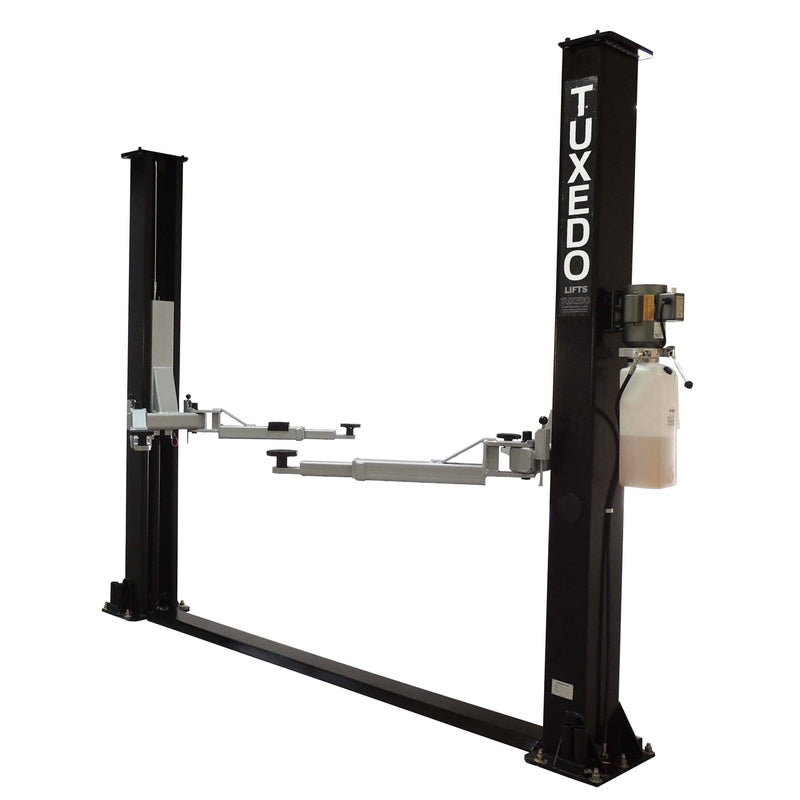

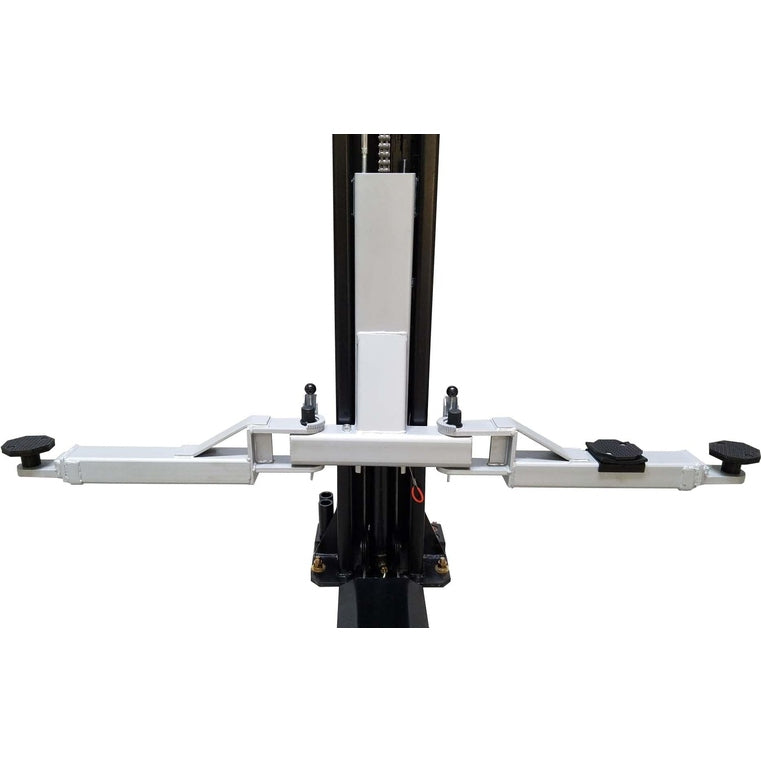

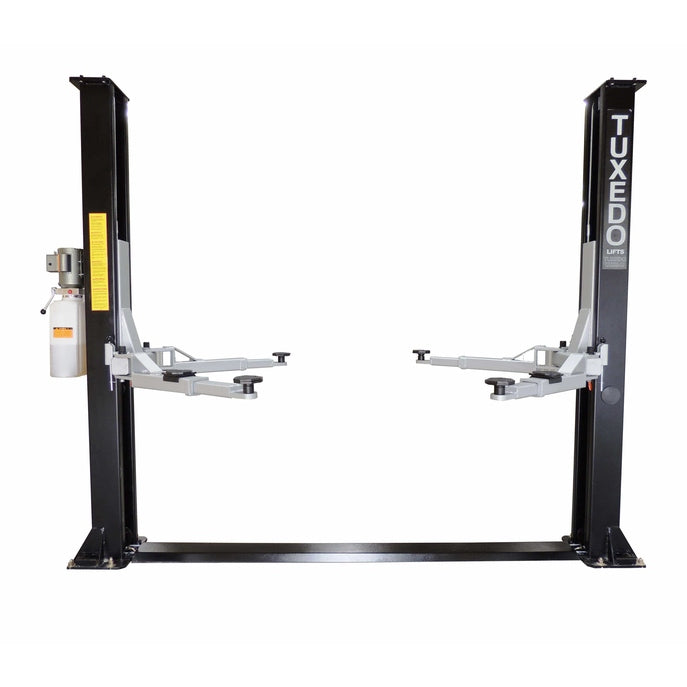

The TUXEDO TP9KF-TUX 9,000 lb. Light Duty Two Post Lift is an economy designed open top / floor plate vehicle lift with standard lift features including: symmetrical swing arms, low profile 4 lifting pads, stackable height adaptors, saddle pad adaptors and dual point carriage lock releases. The one piece column combined with reliable chain drive cylinders makes it the perfect service lift for passenger cars, light duty trucks & most SUVs. The automatic arm restraints and durable powder-coat finish provide an economically priced lift with all the features, all for a great value!
Features
- 9,000 lbs capacity
- Symmetric Arms
- Chain Drive Cylinders

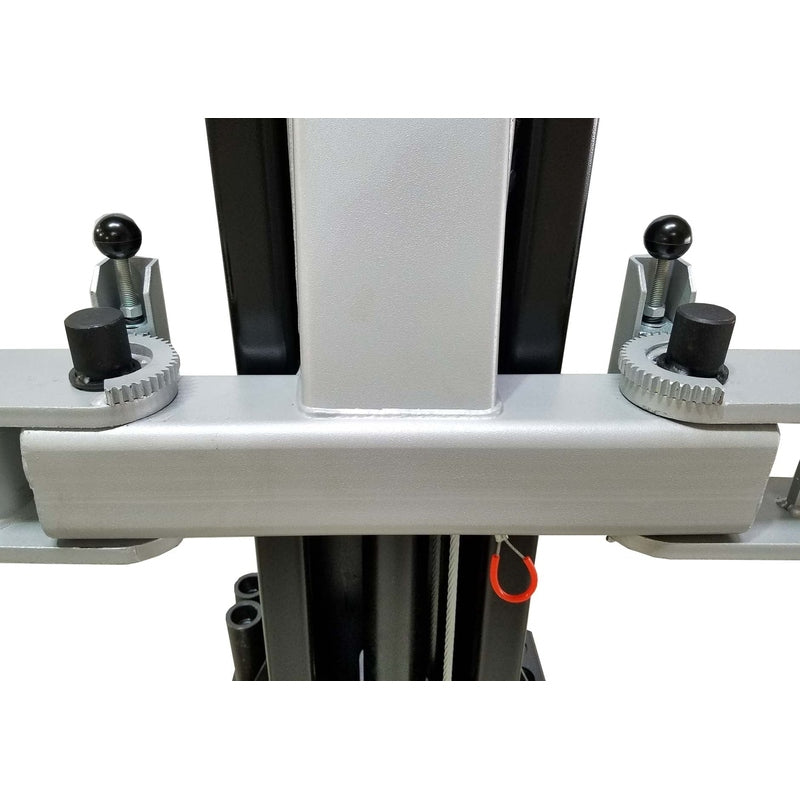

- Dual Point Lock Release
- Auto Arm Restraint System

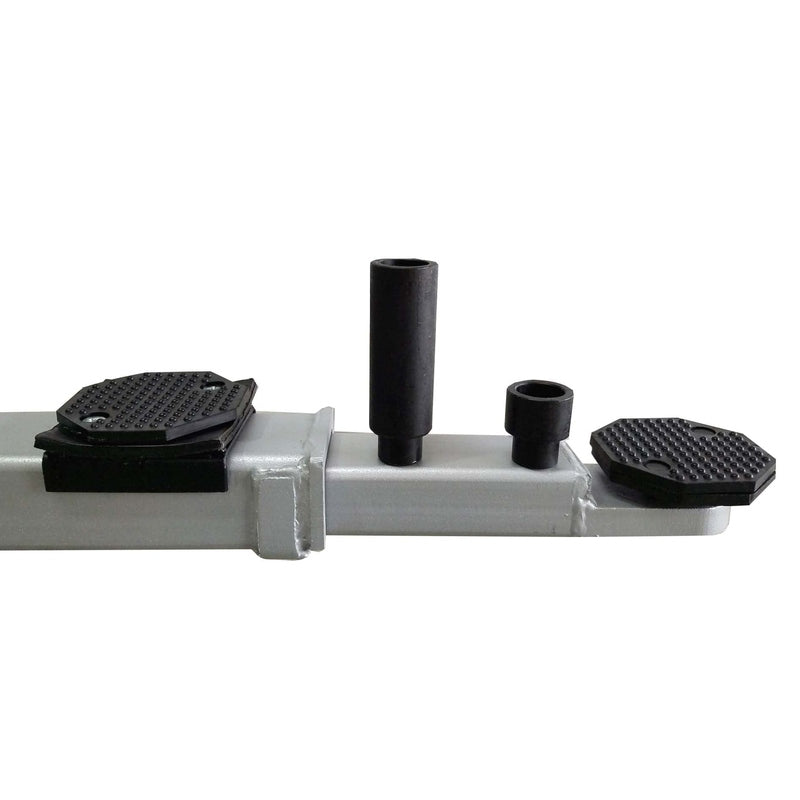

- Low profile drop-in Lift Pads
- SADDLE PAD ADAPTORS (1 Pair)
- Stackable Adapters Included
- Black color standard

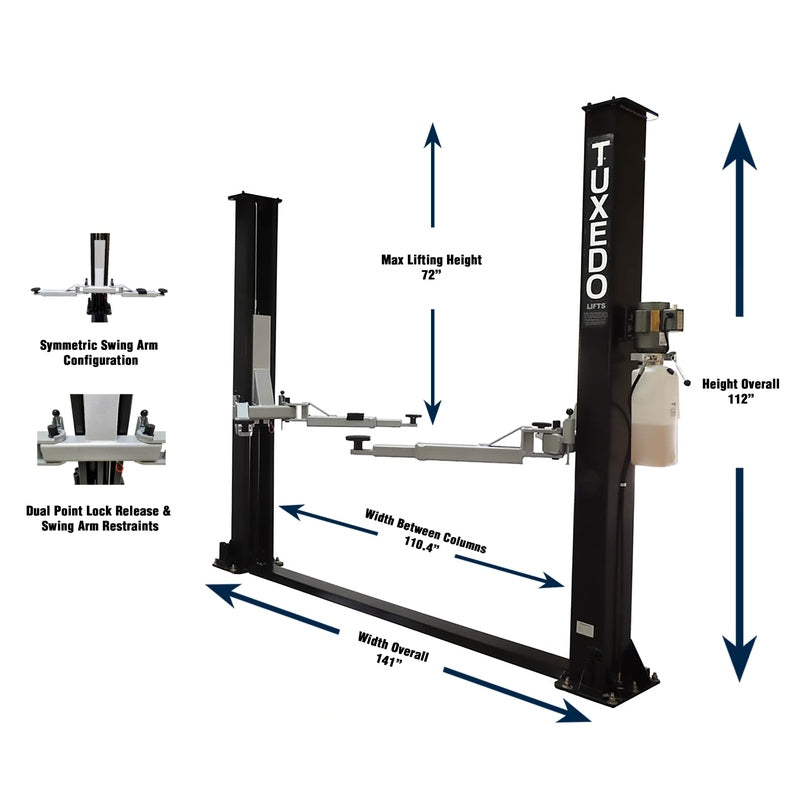

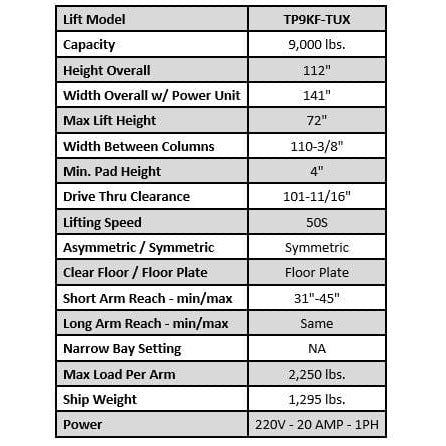

Specifications
| Lift Model | TP9KF-TUX |
| Capacity | 9,000 lbs. |
| Height Overall | 112″ |
| Width Overall w/ Power Unit | 141″ |
| Max Lift Height | 72″ |
| Width Between Columns | 110-3/8″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 101-11/16″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach min/max | 31″-45″ |
| Long Arm Reach min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,295 lbs |
| Power | 220V 20 AMP 1PH |
Manual
Tuxedo TP9KF-TUX 9,000 lb Two Post Lift Manual
Warranty
Tuxedo covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. Tuxedo pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
