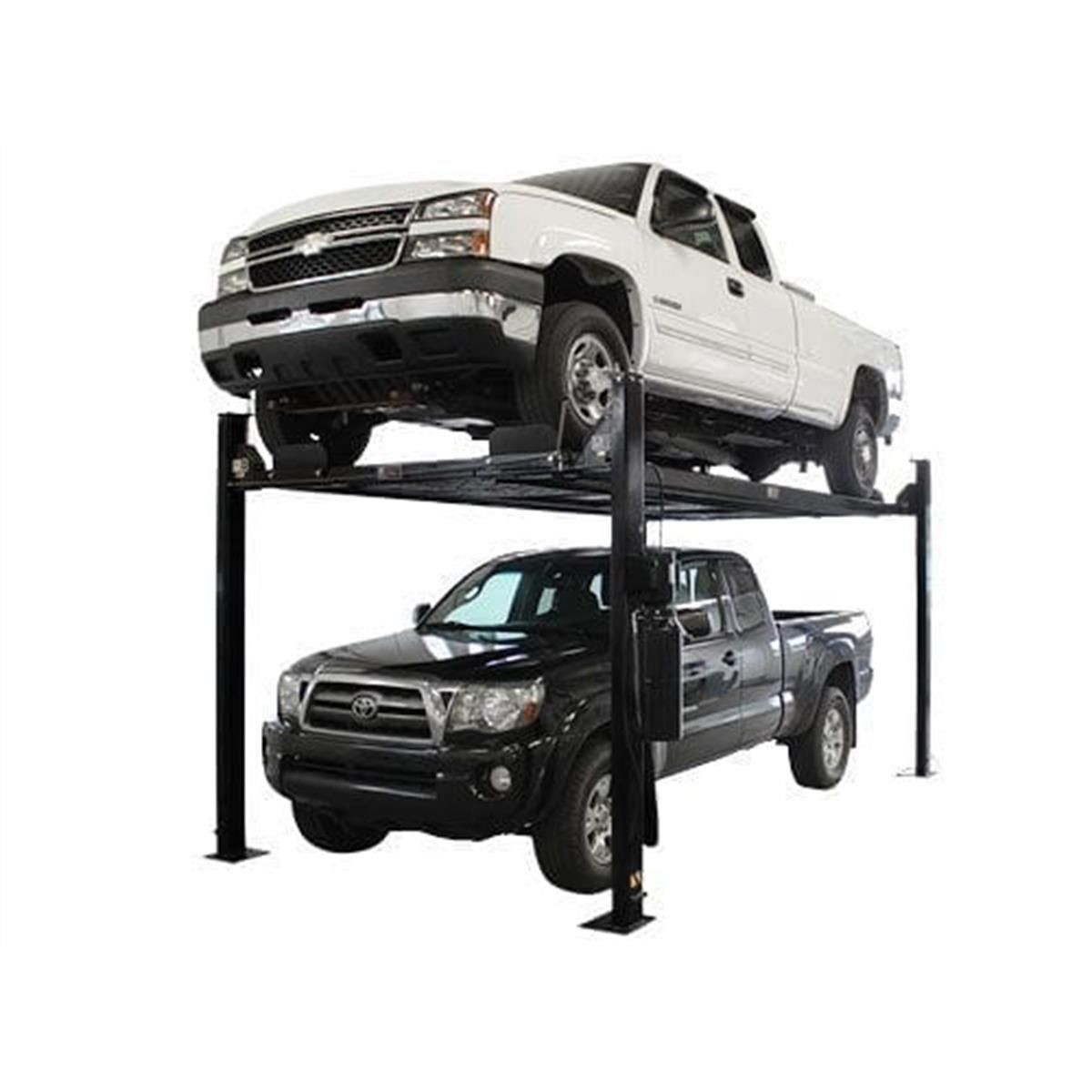

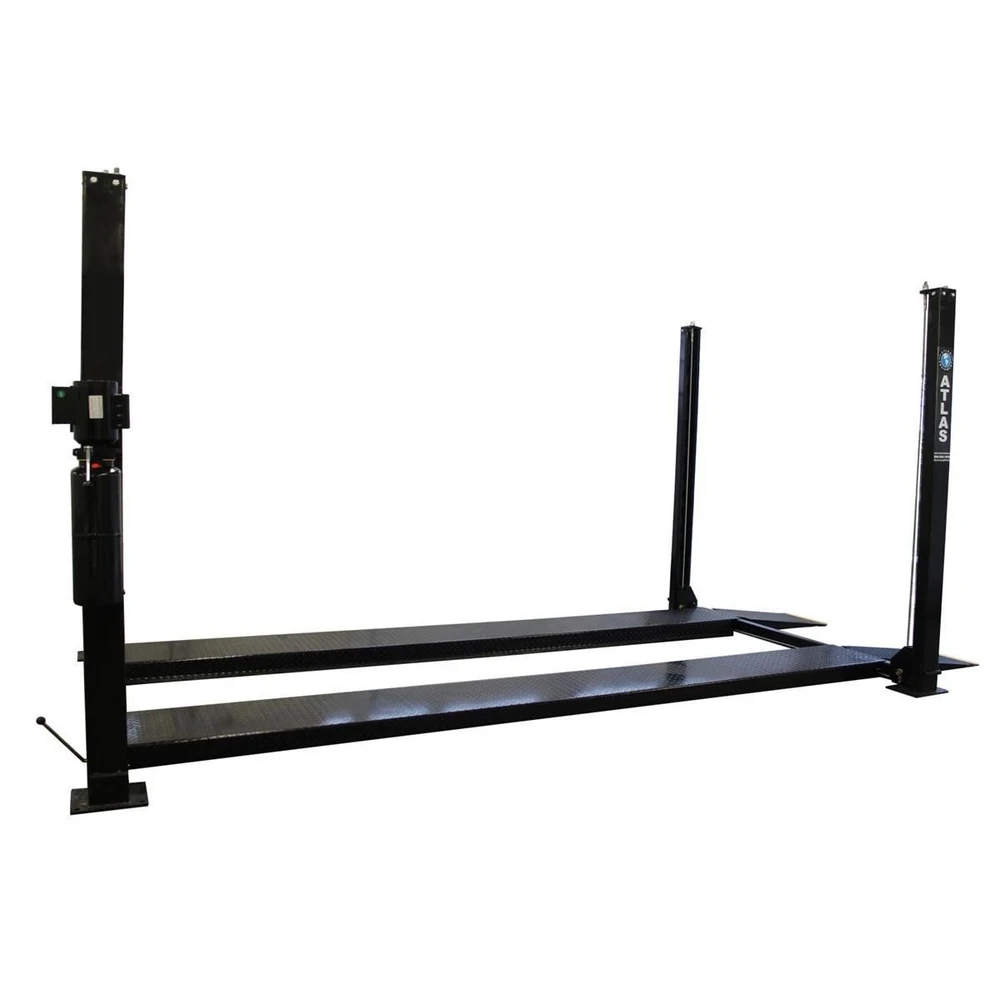

Atlas Garage PRO8000EXT-L Extra Tall/Extra Long Portable Hobbyist 8,000 lb. Capacity 4-Post Lift

Features and Benefits:

• 8,000 lb. Capacity
• Free Standing/Portable Design
• Extra Tall/Extra Long
• Diamond Plated Runways

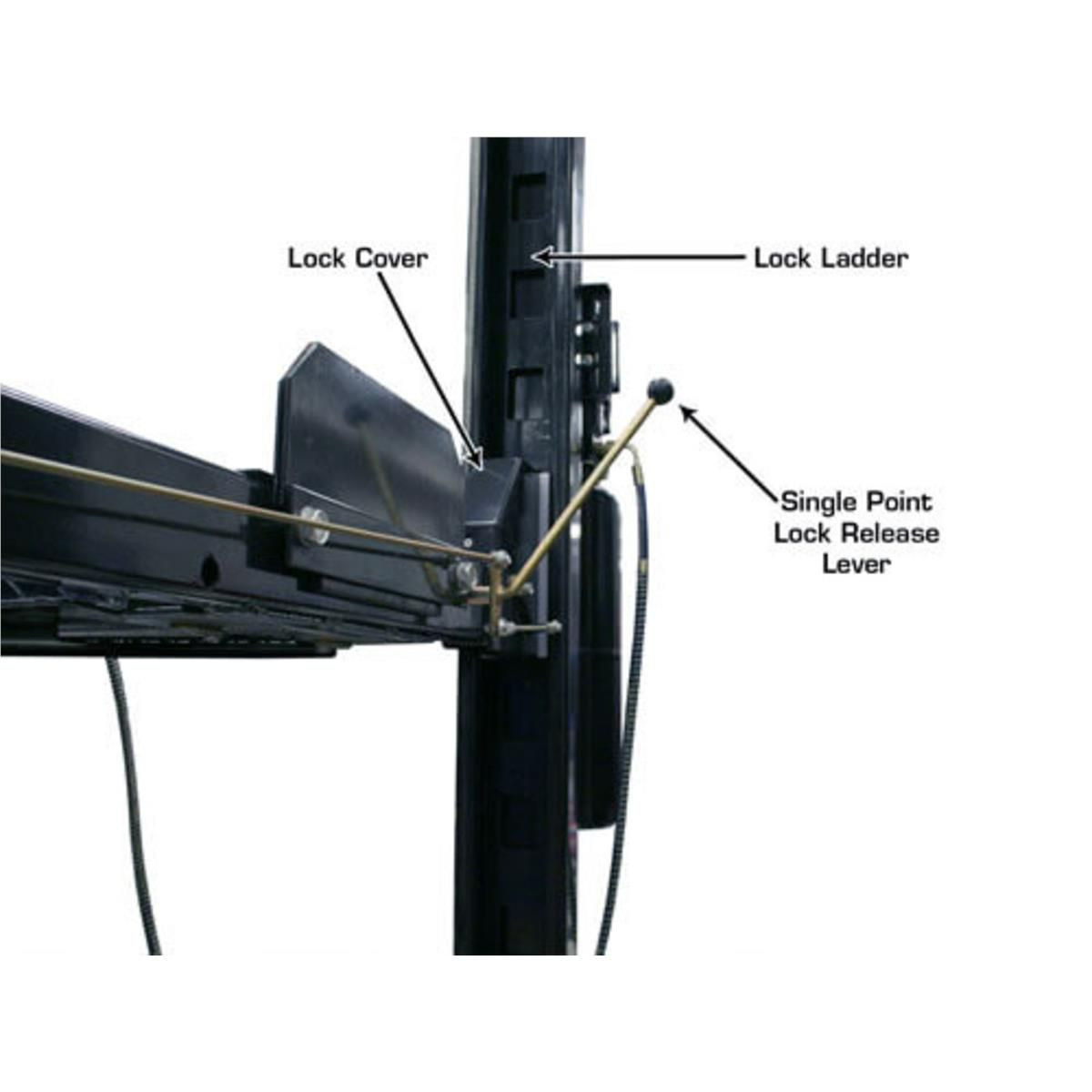

• Single-Point Lock Release

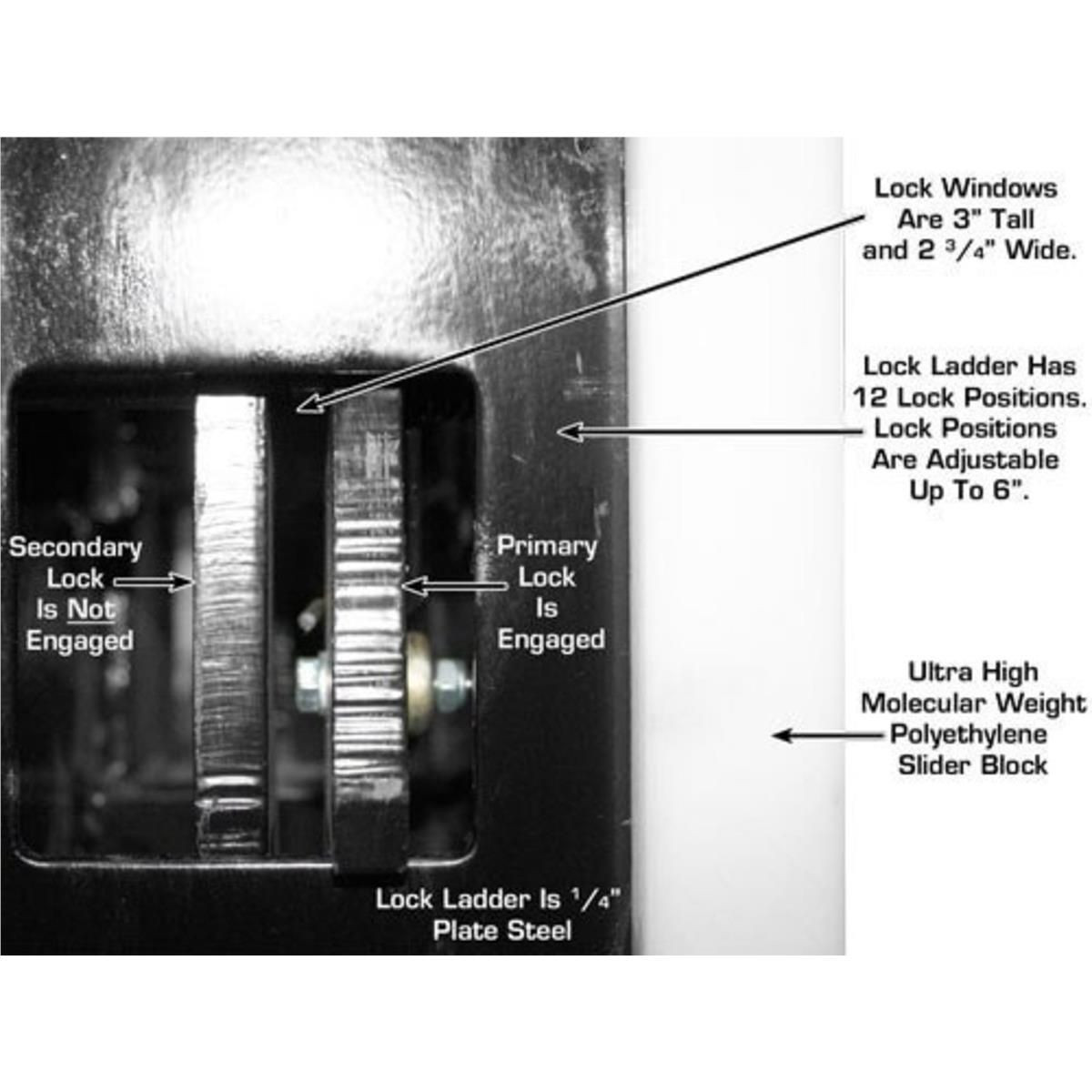

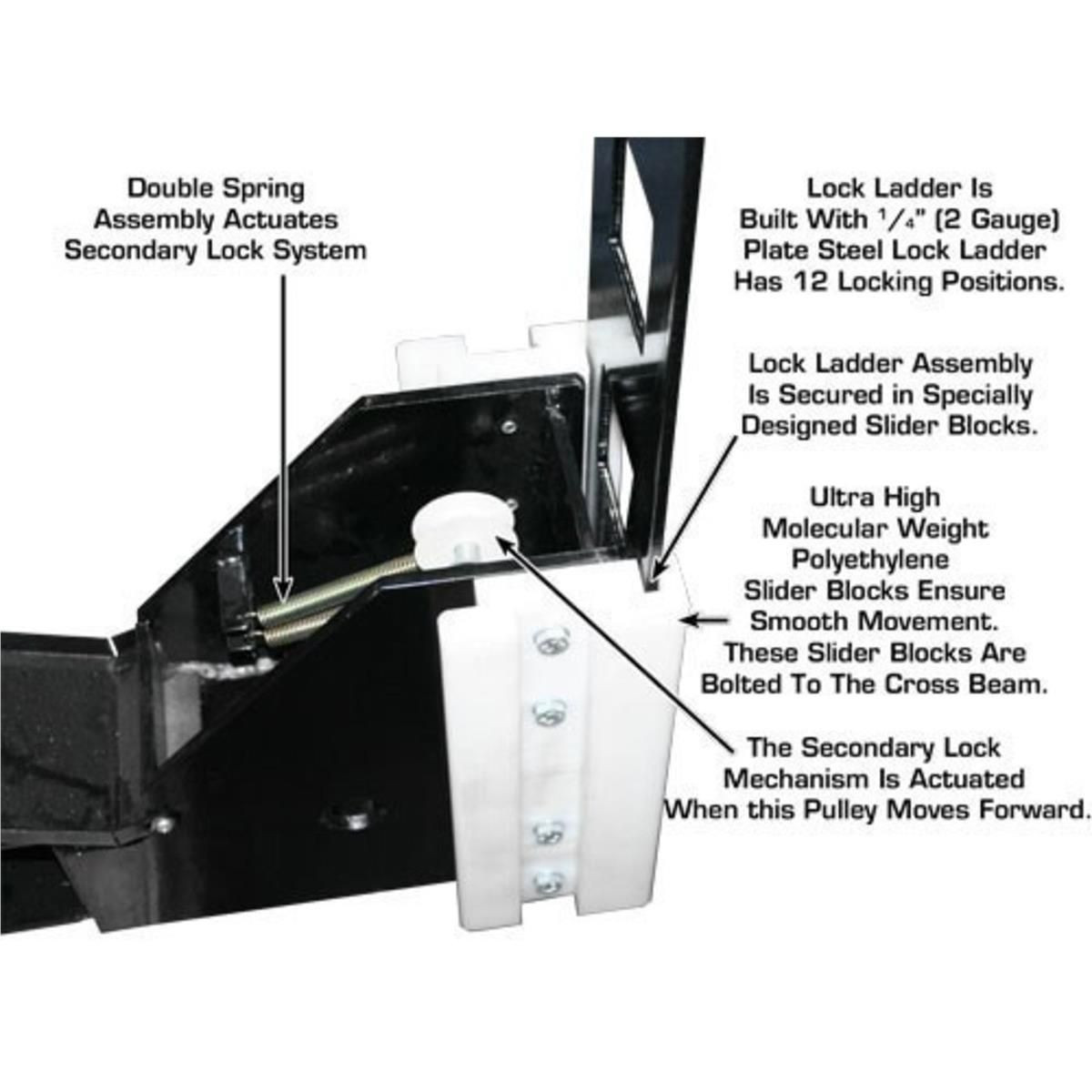

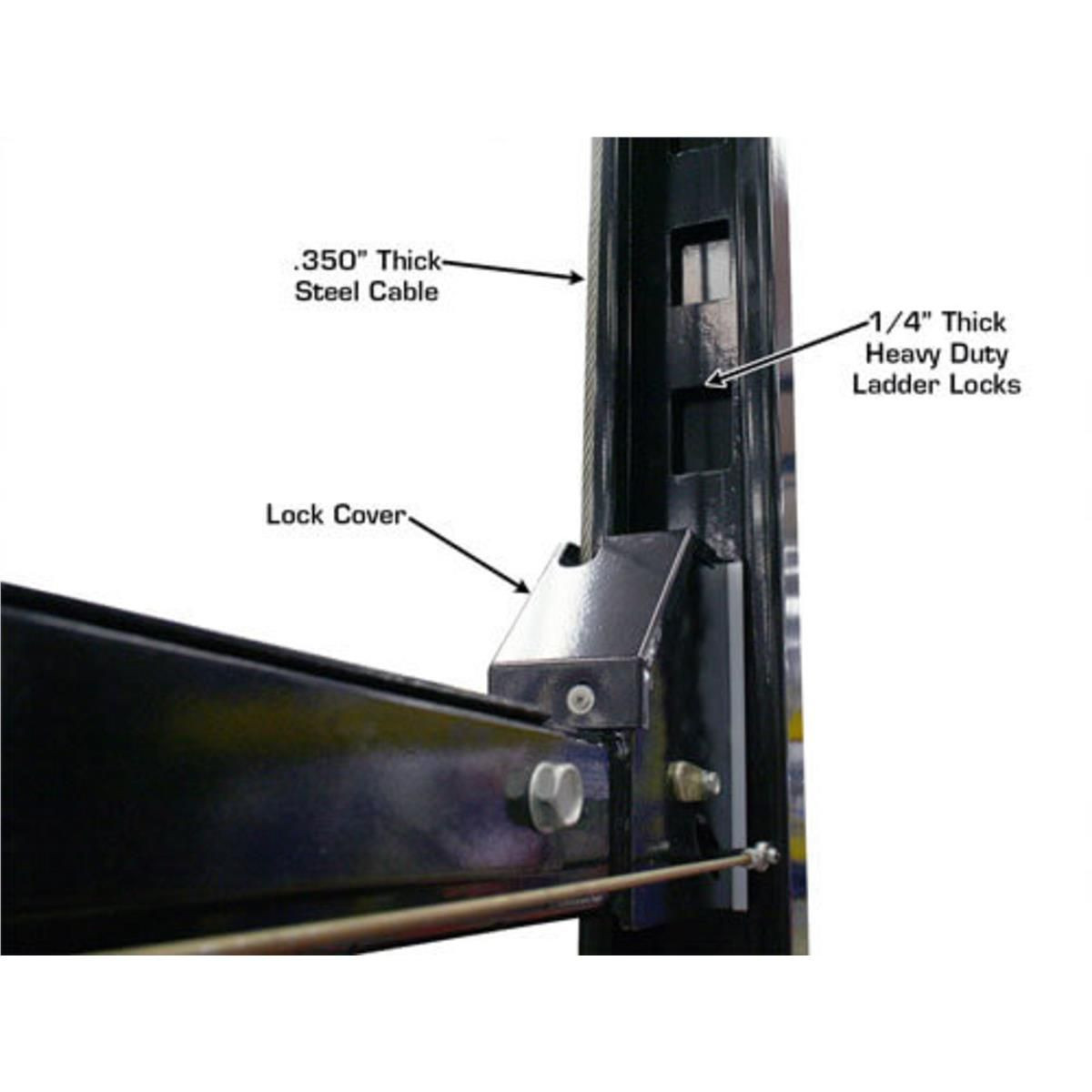

• Lock Ladder Design

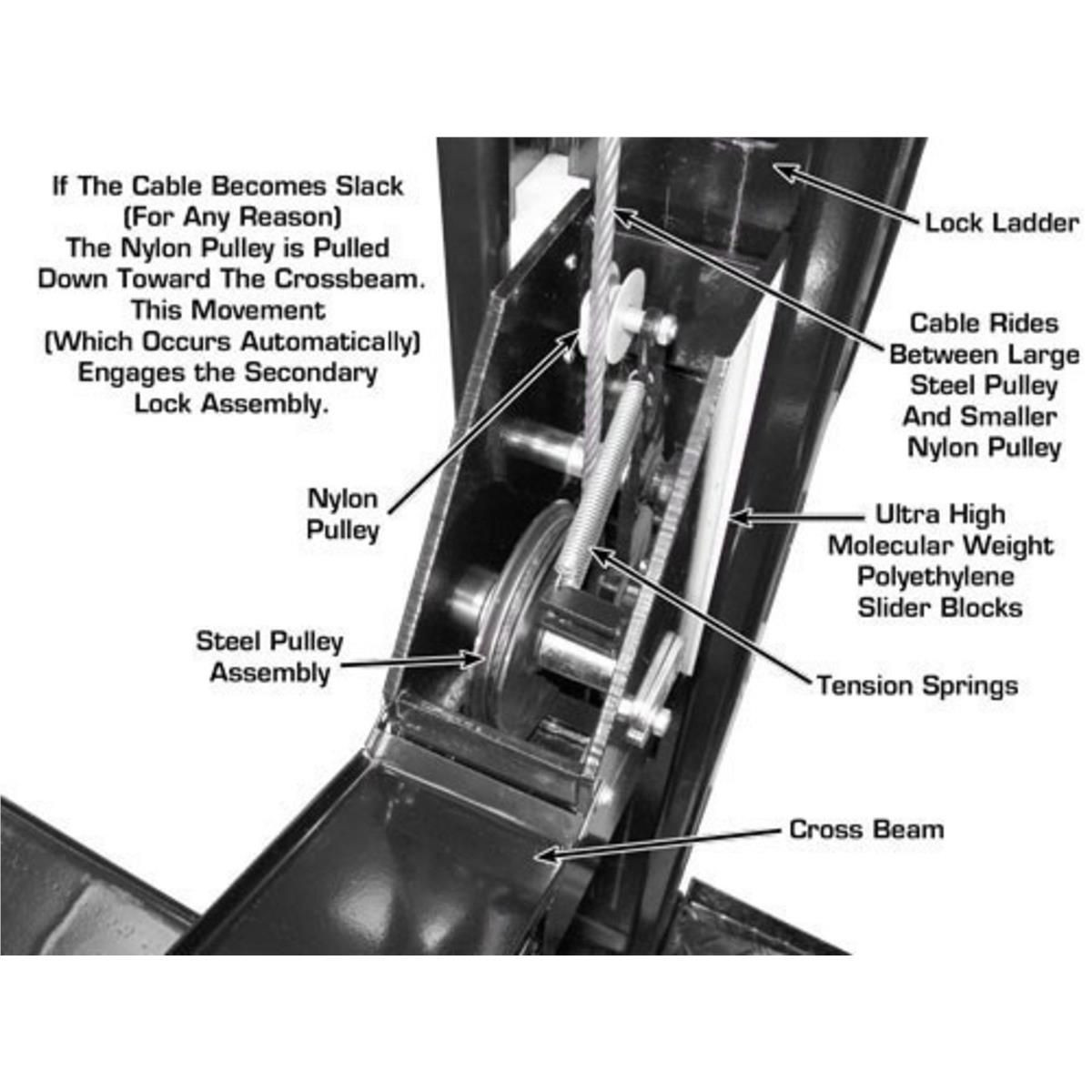

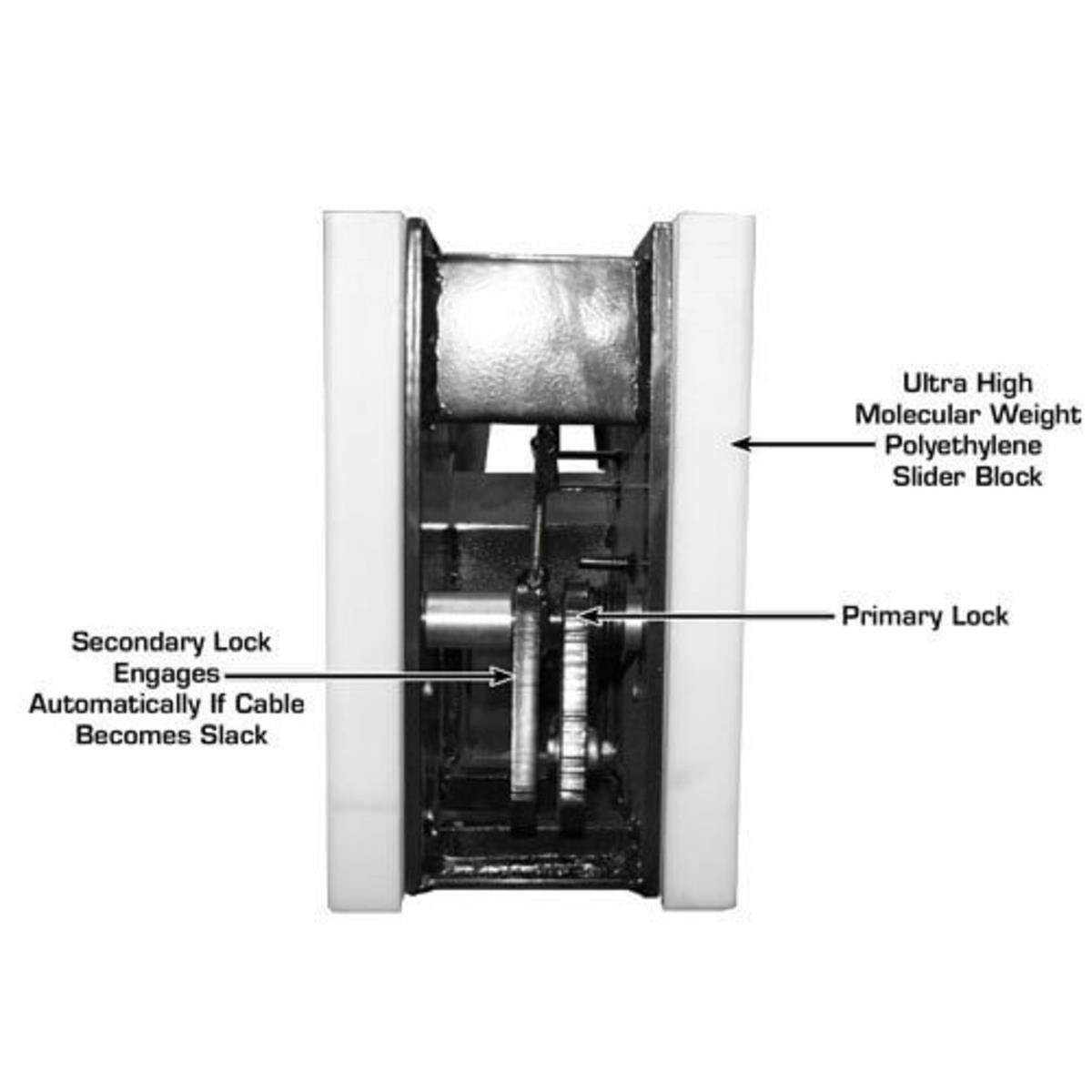

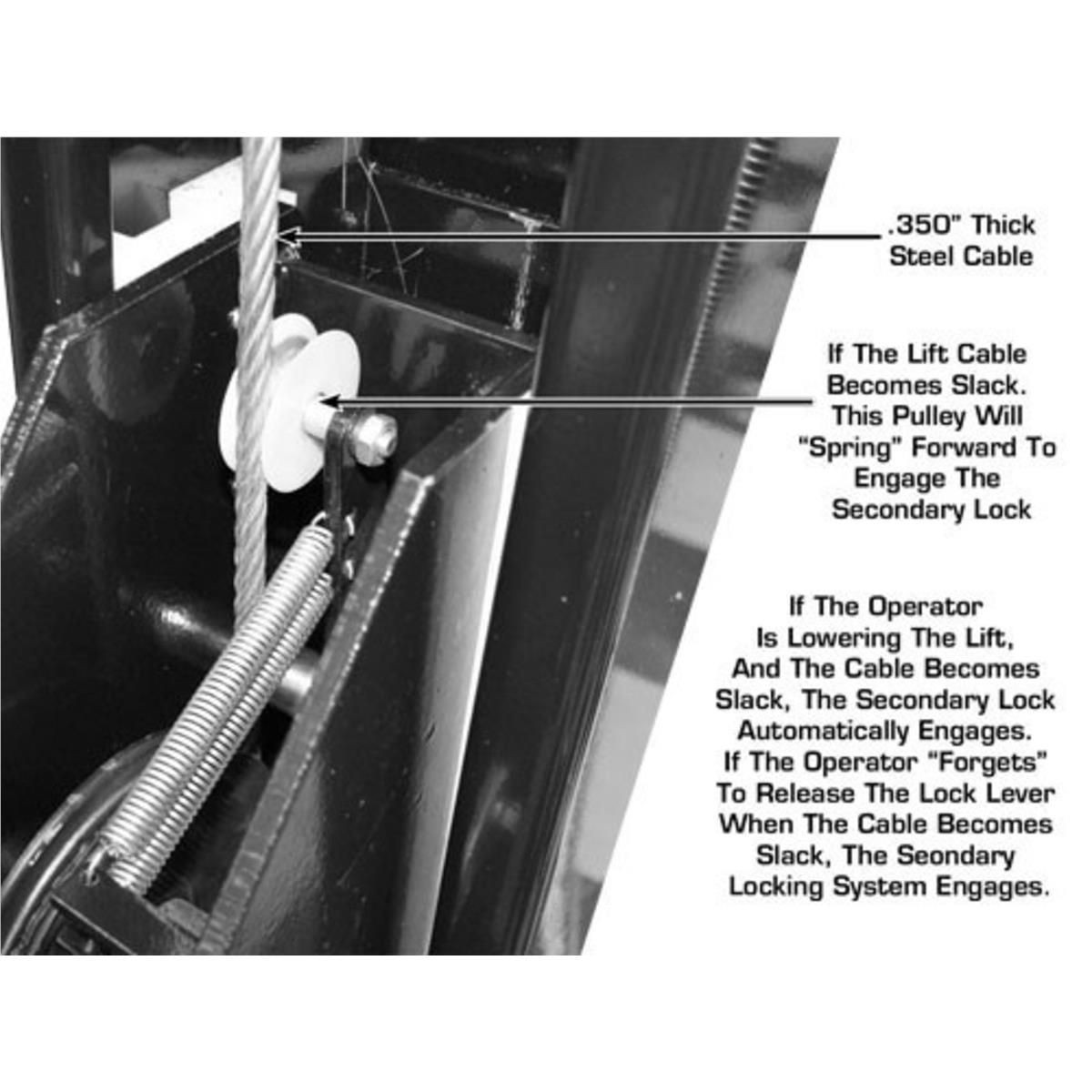

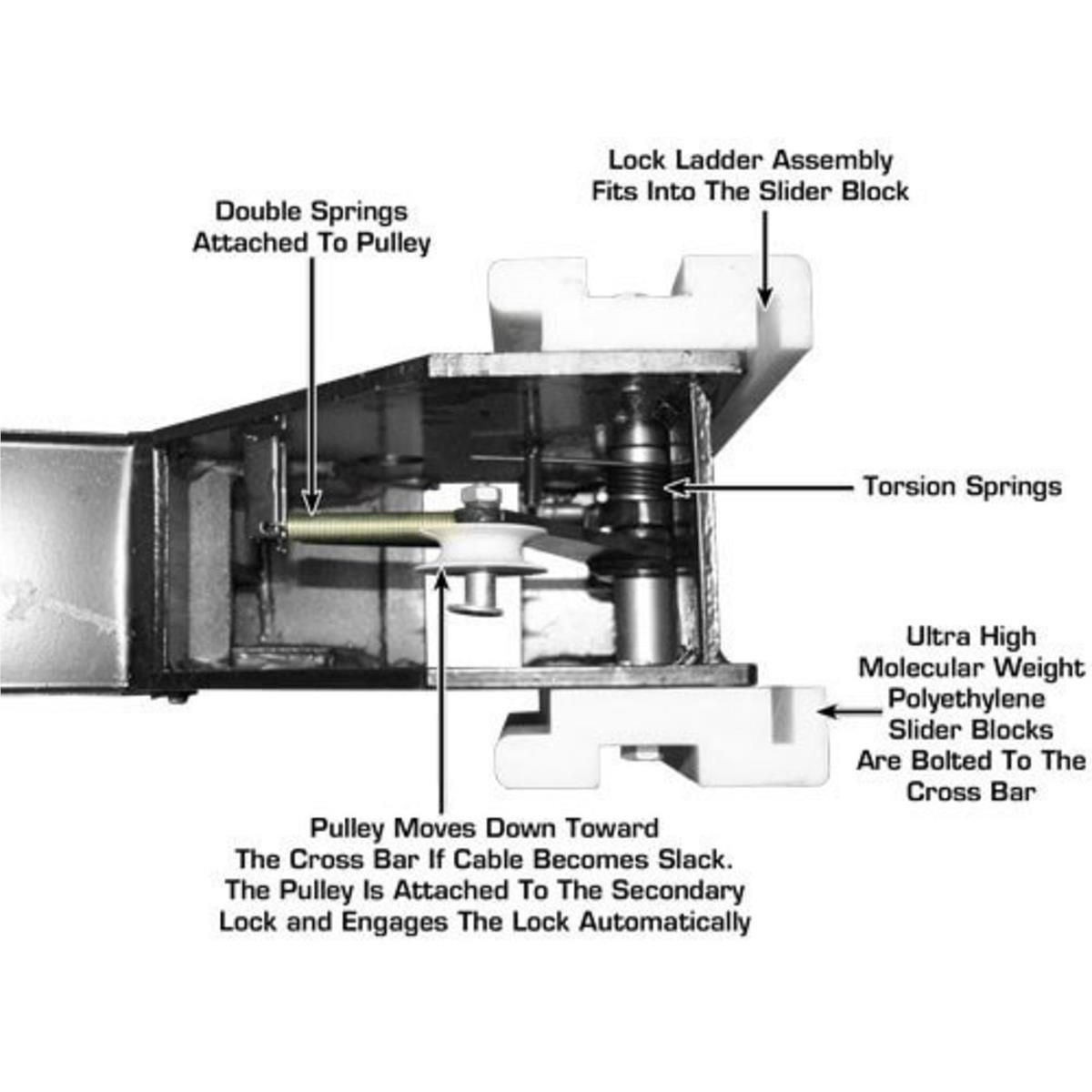

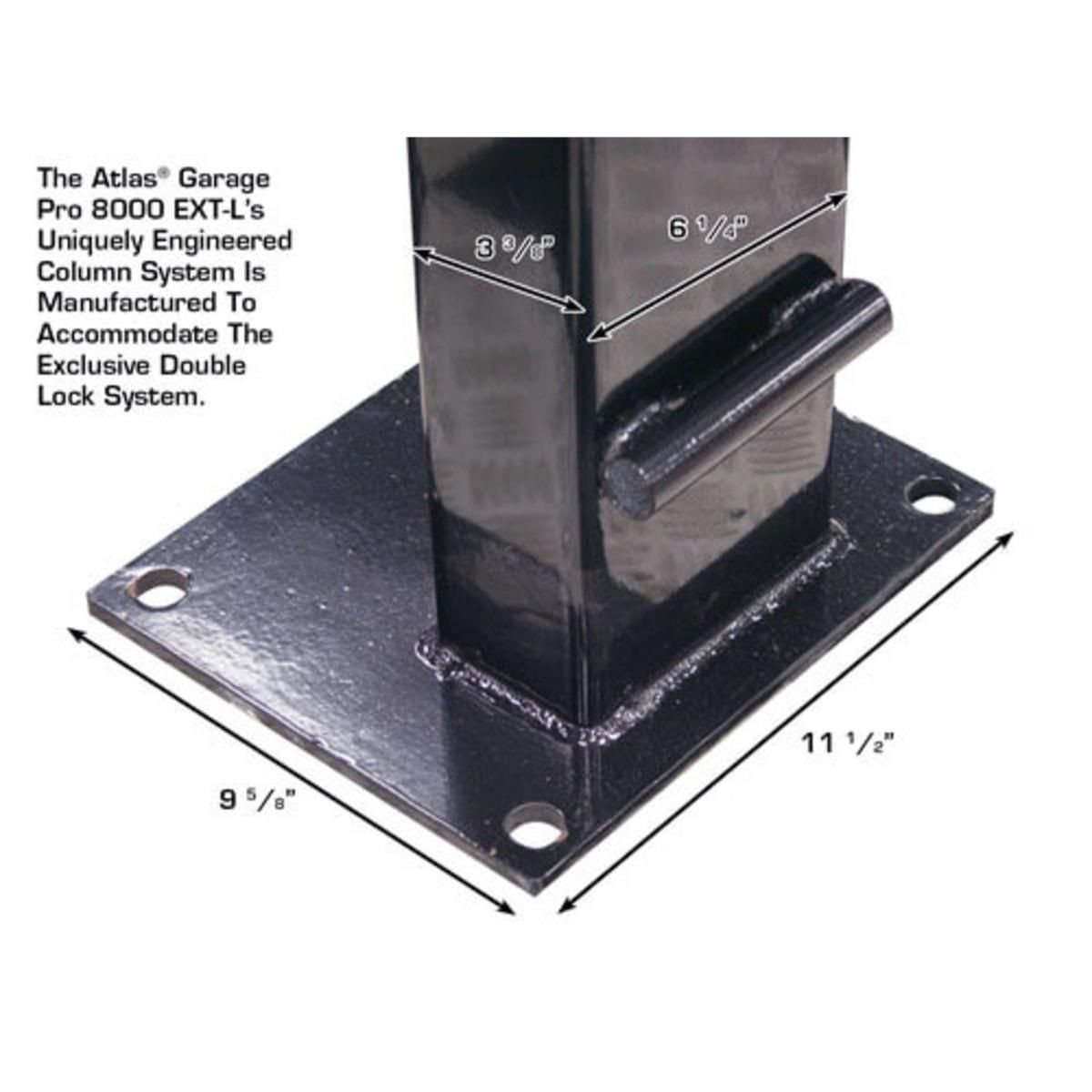

• Double Lock Safety System

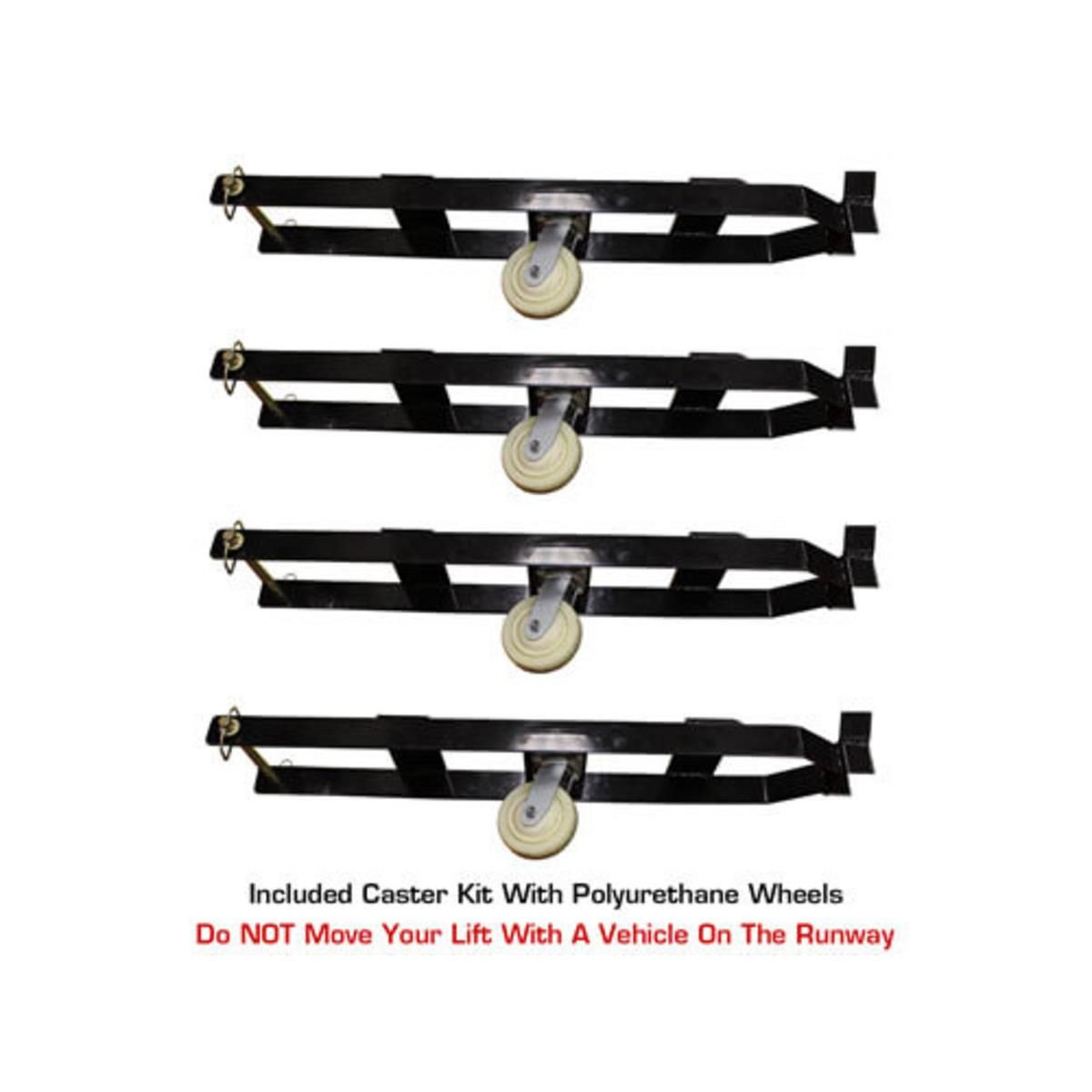

• Caster Kit With Polyurethane Wheels Included

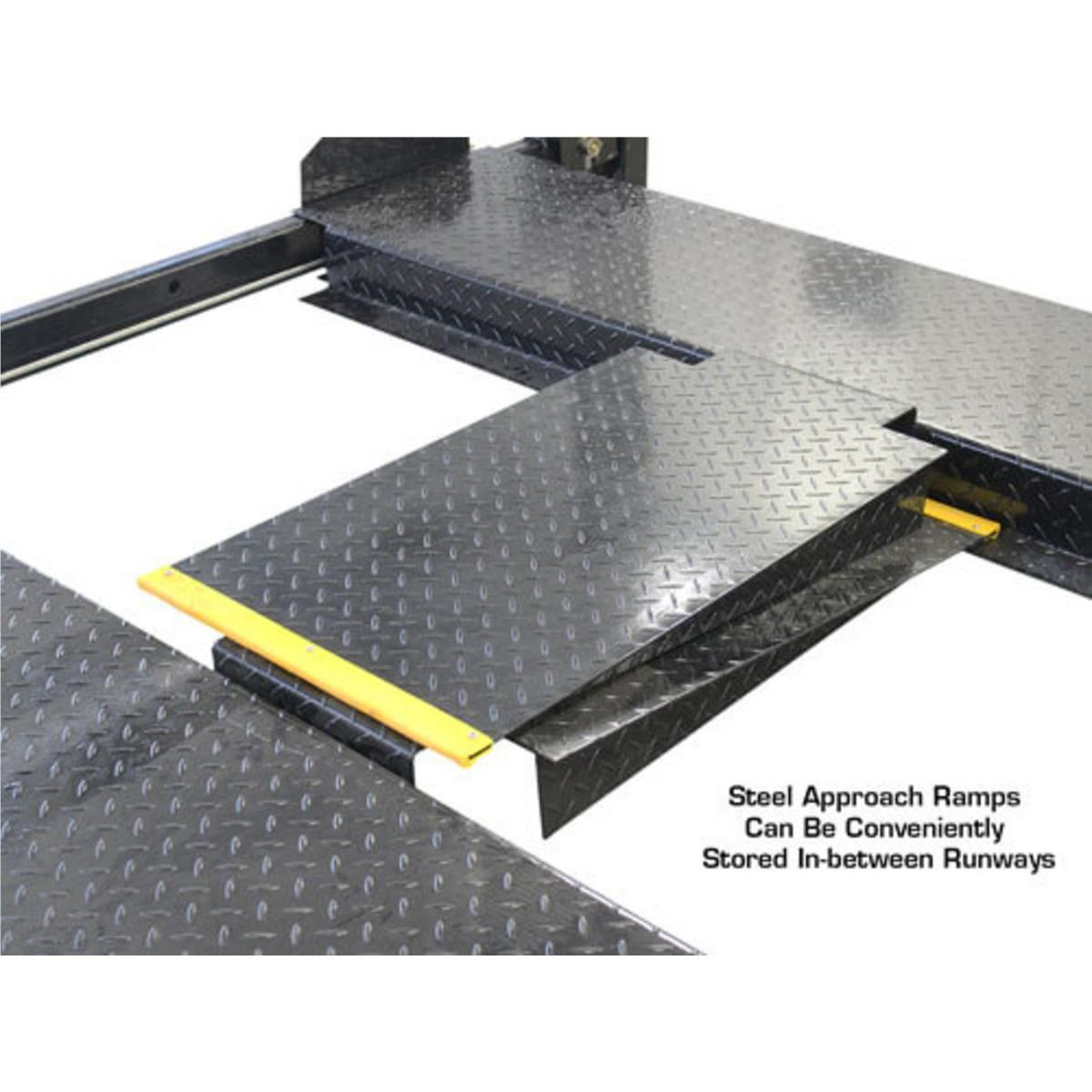

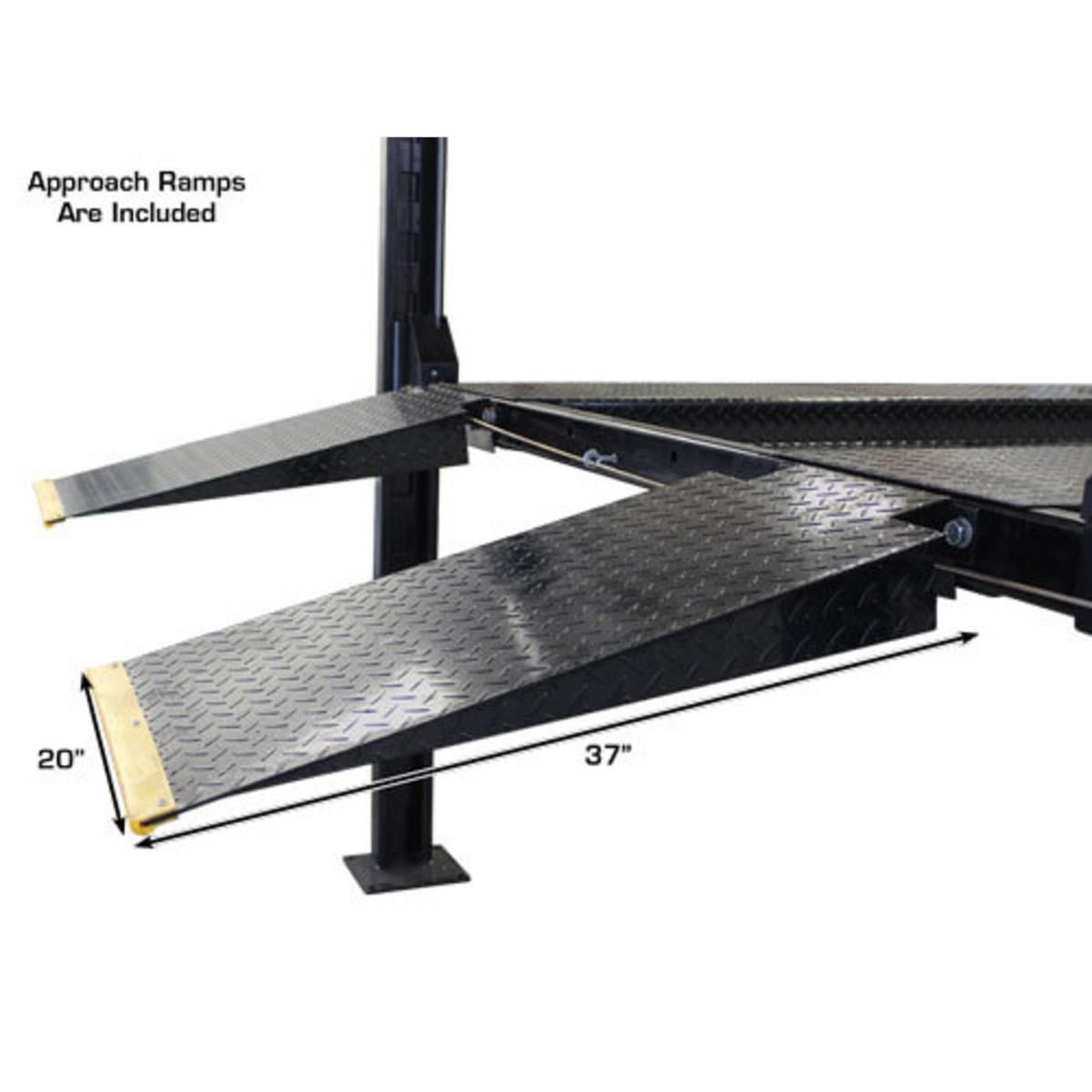

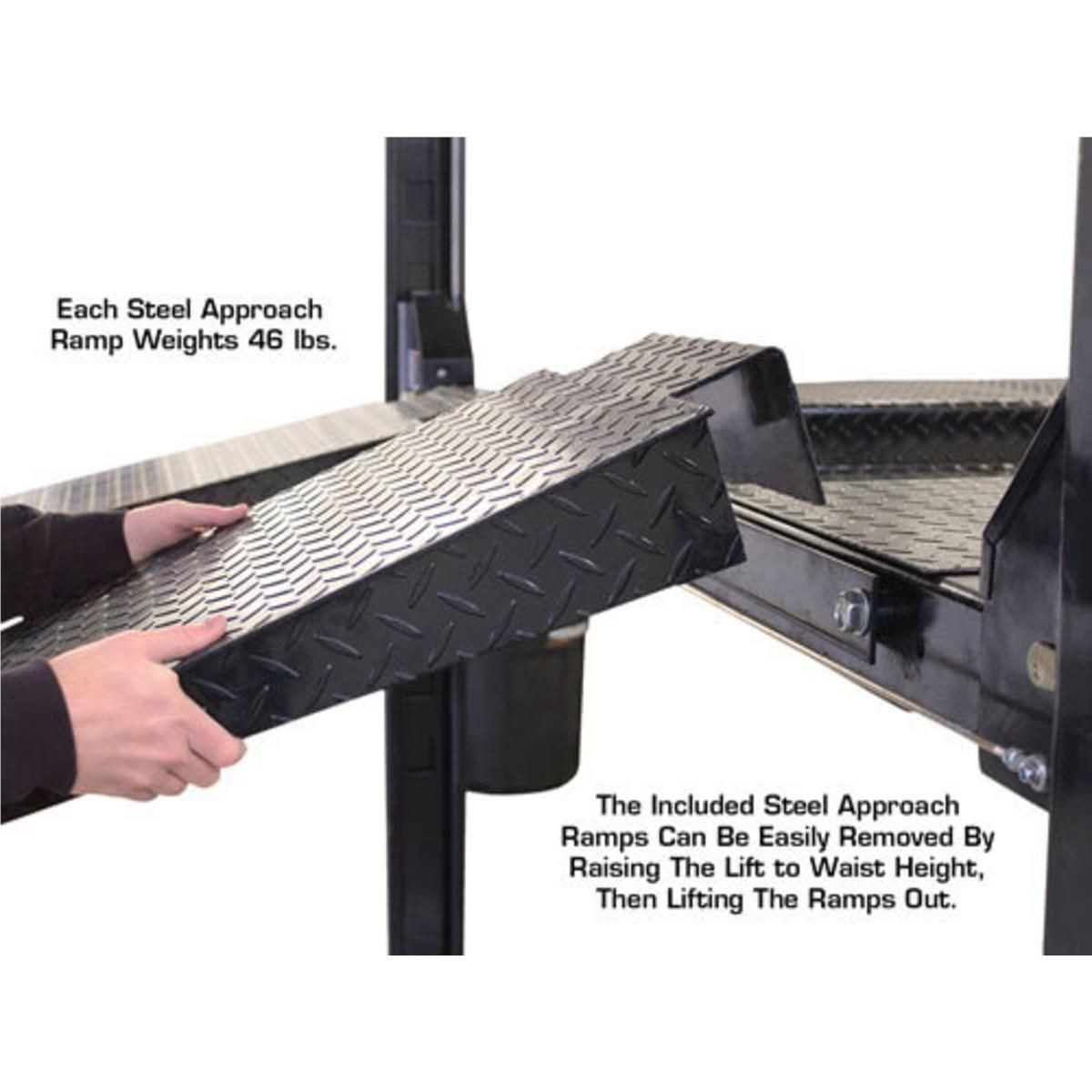

• Steel Approach Ramps Included

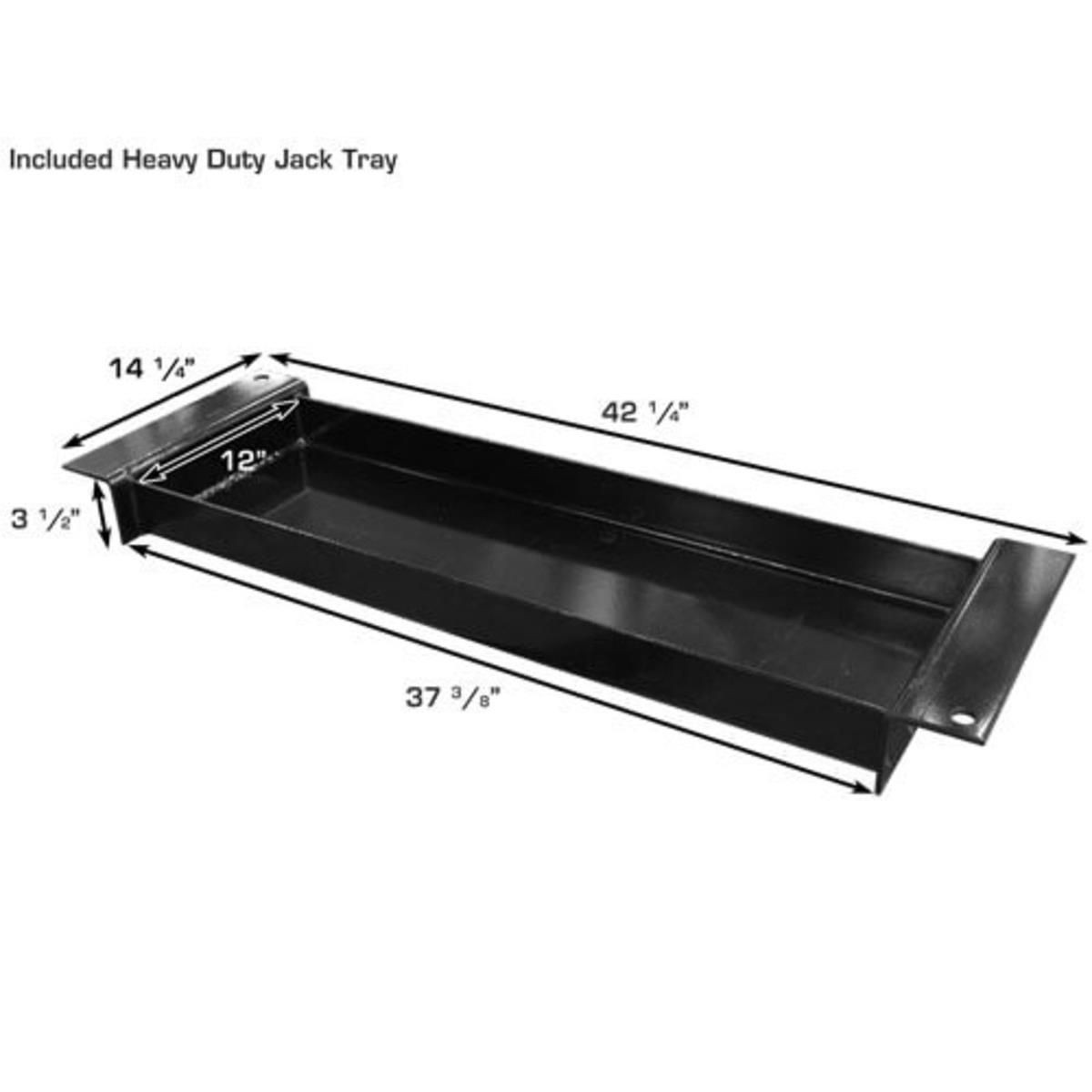

• Steel Jack Tray Included

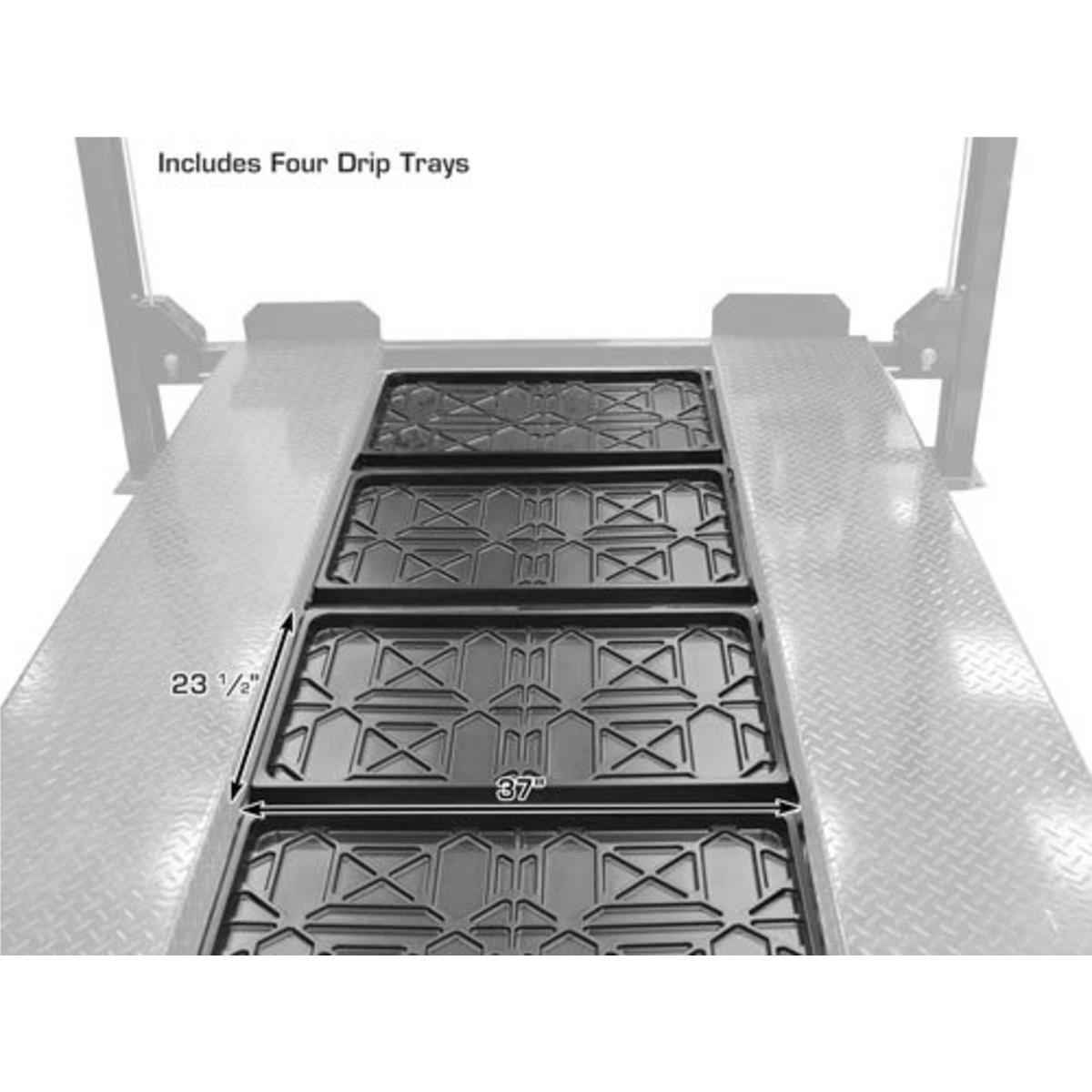

• 4 Plastic Drip Trays Included
• 4 Wheel Stops Included

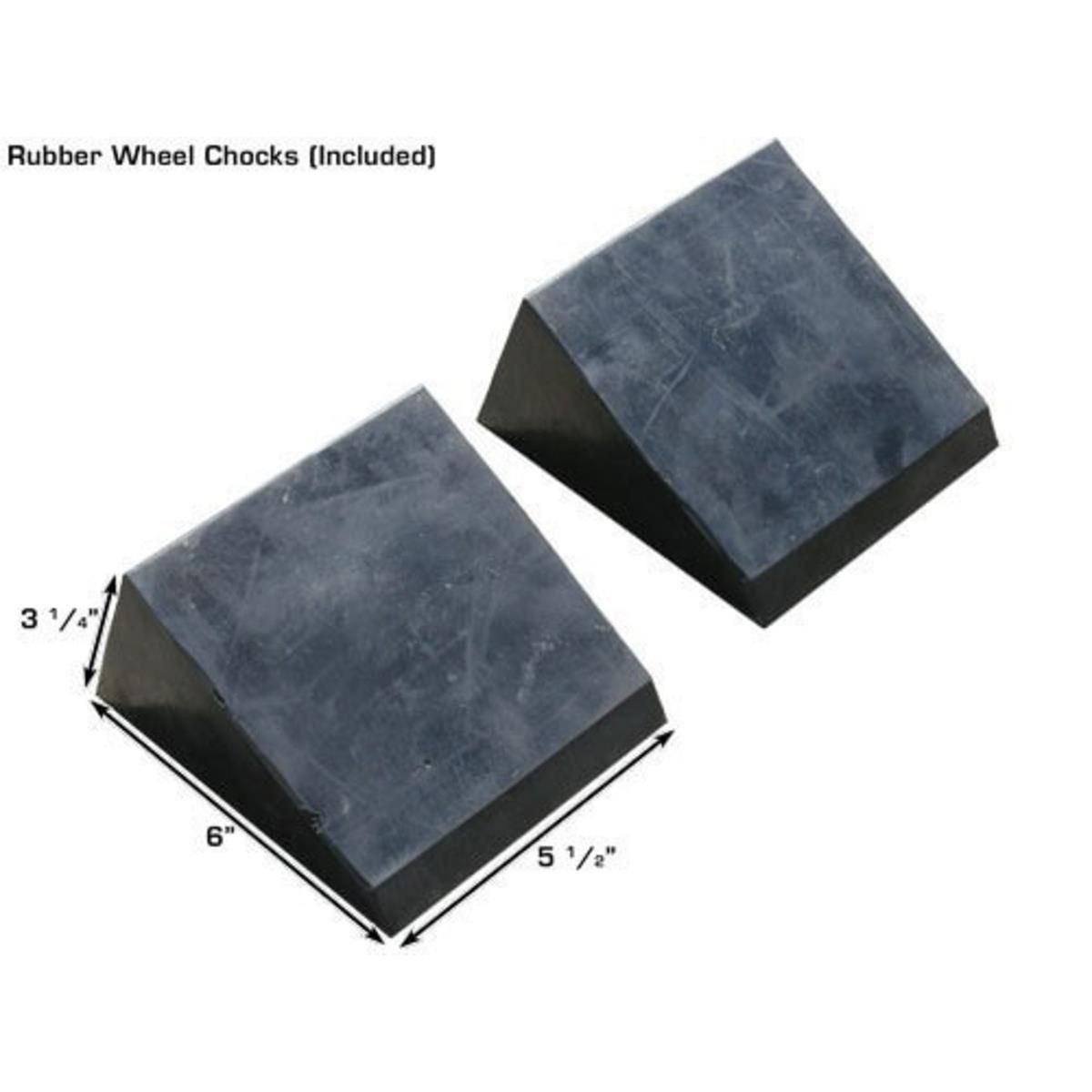

• 2 Rubber Wheel Chocks Included
• Perfect For Storing Or Working On Vehicles

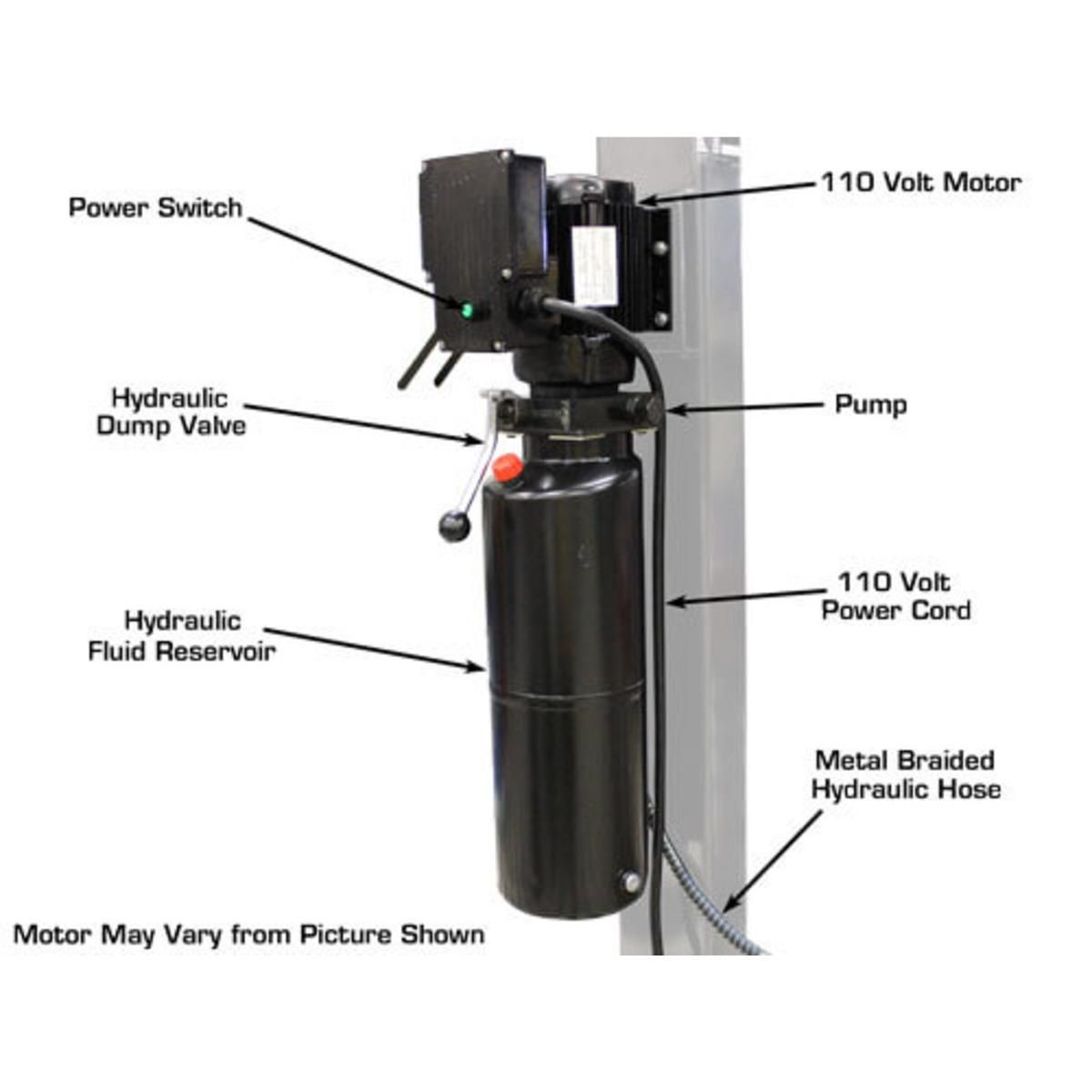

• 110volt Electric Operation (30 AMP BREAKER REQUIRED)

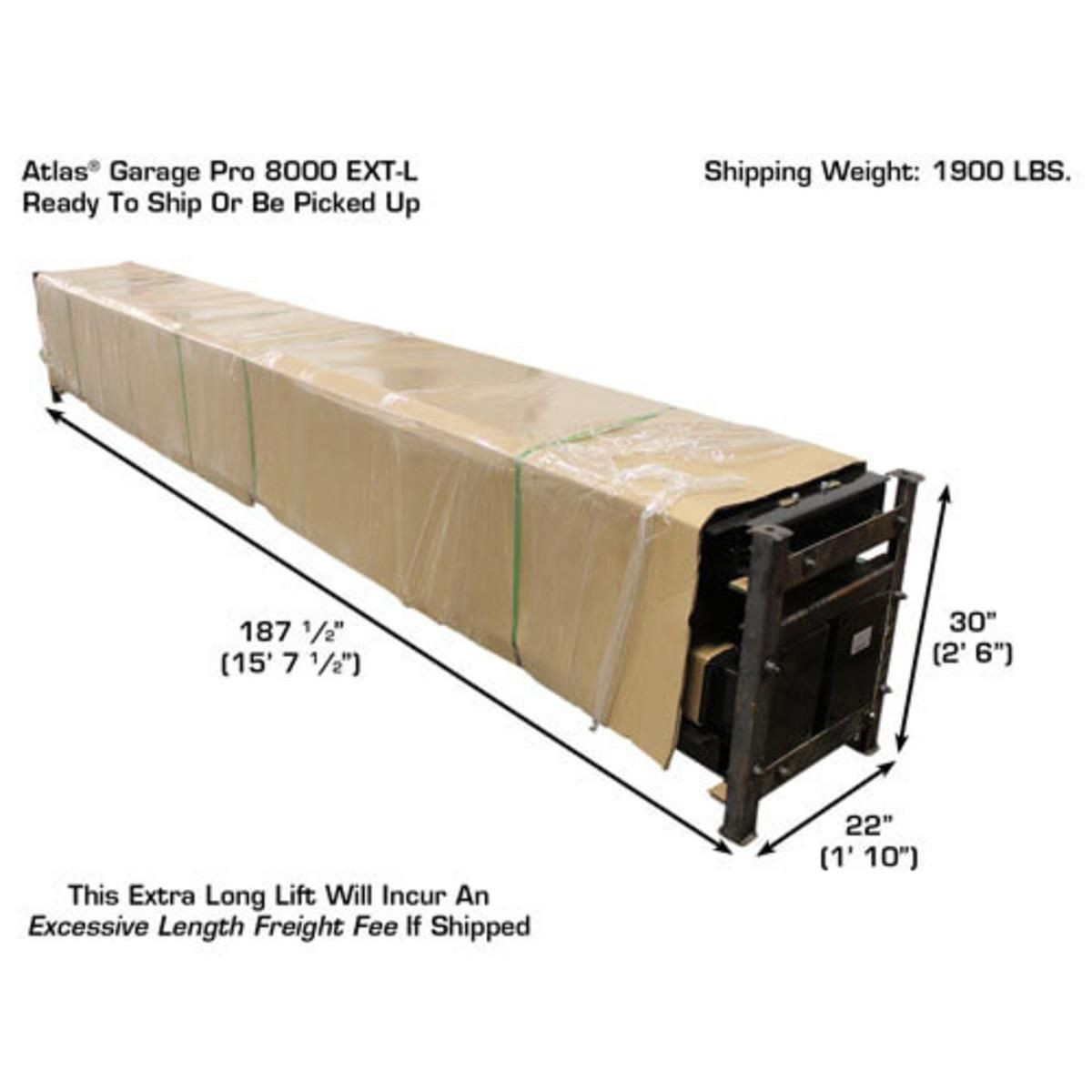

• Shipping Weight 1,900 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only

The Atlas® Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas® Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!

The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not desinged for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson.

The Atlas® Garage PRO8000EXT-L includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.

Many customers who purchased this lift also purchased the Atlas® RJ35.

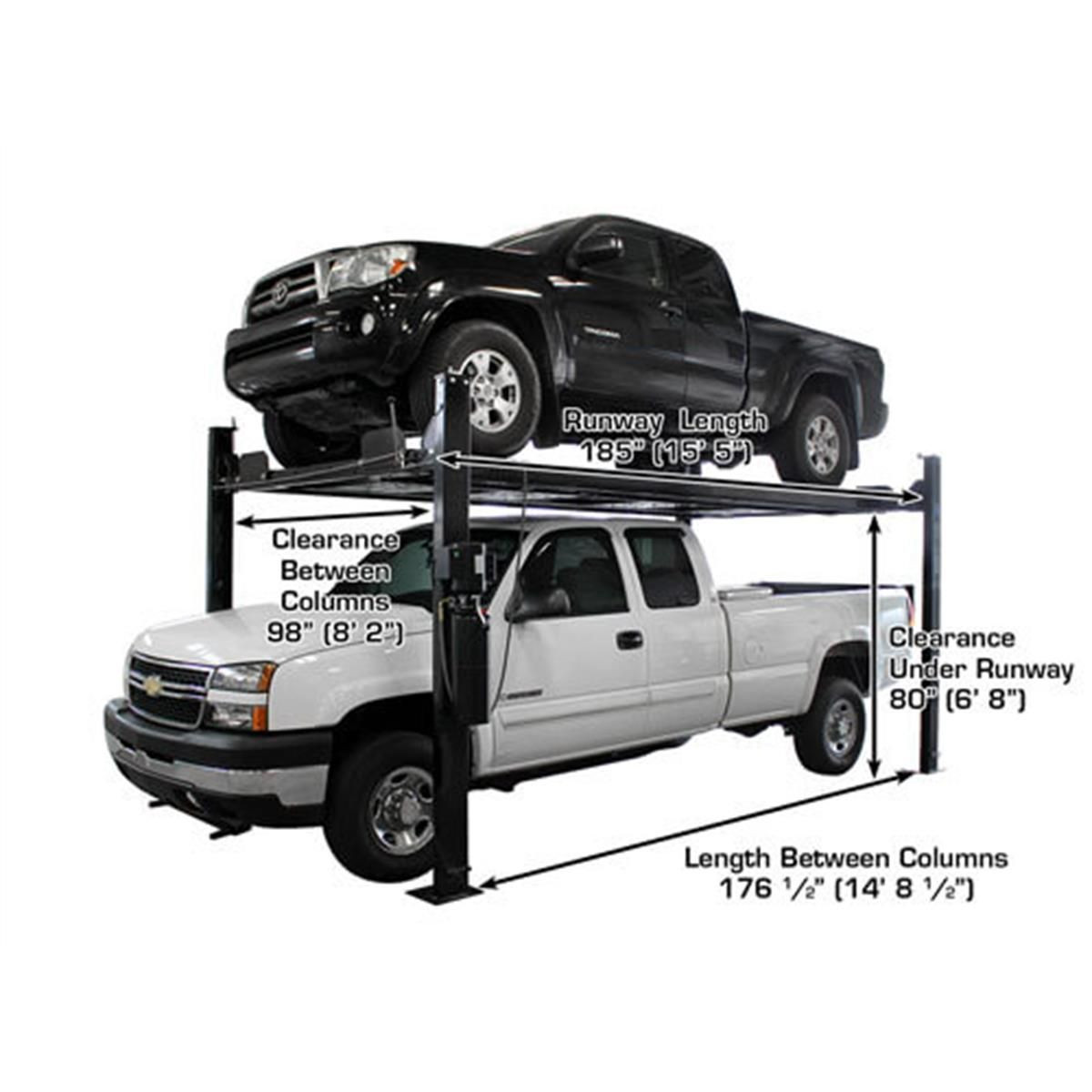

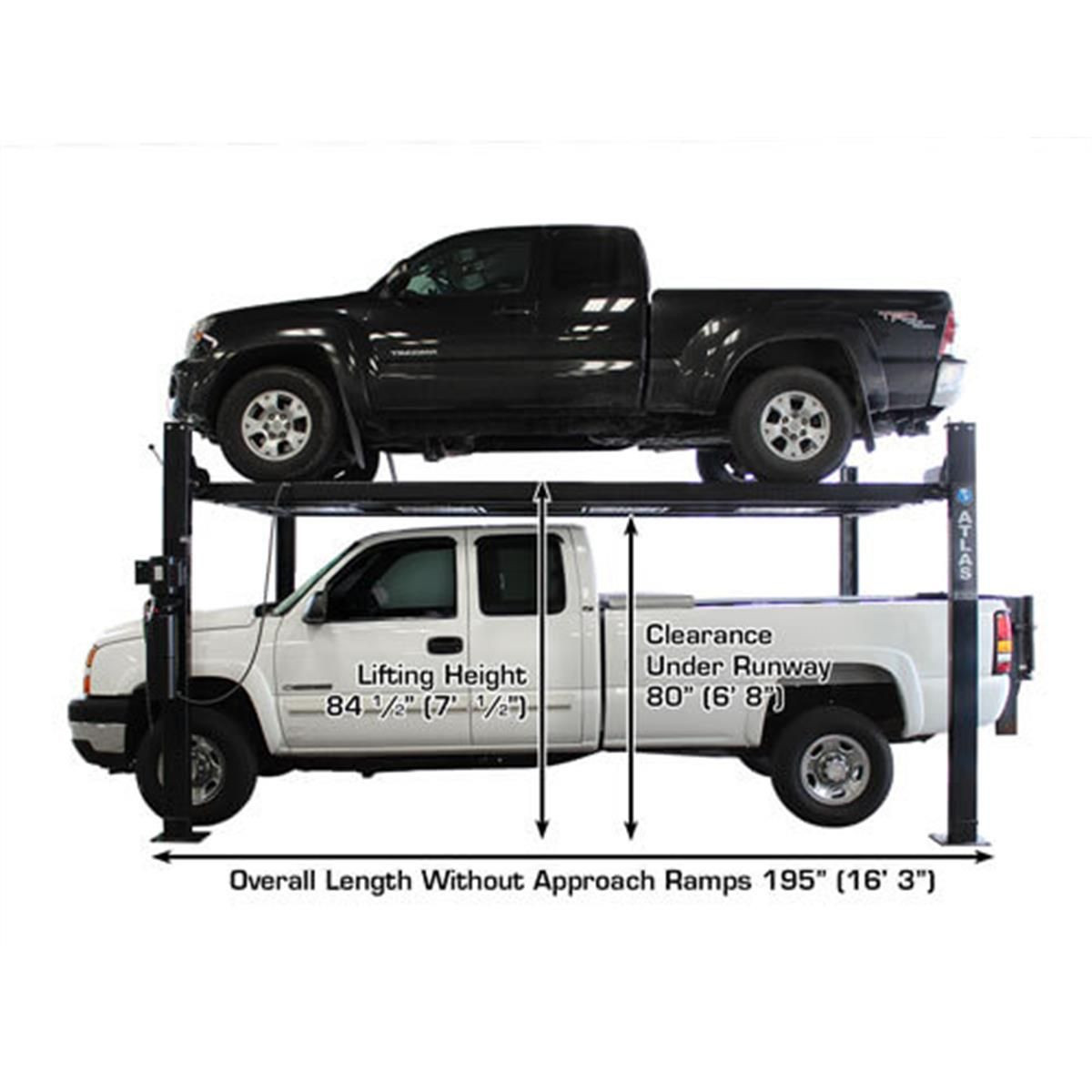

Atlas® Garage PRO8000EXT-L Specifications

• Capacity 8,000 lbs.
• Lifting Height To Top Of Runway 84″ (7′)
• Clearance Under Runways 78 1/2″ (6′ 6 1/2″)

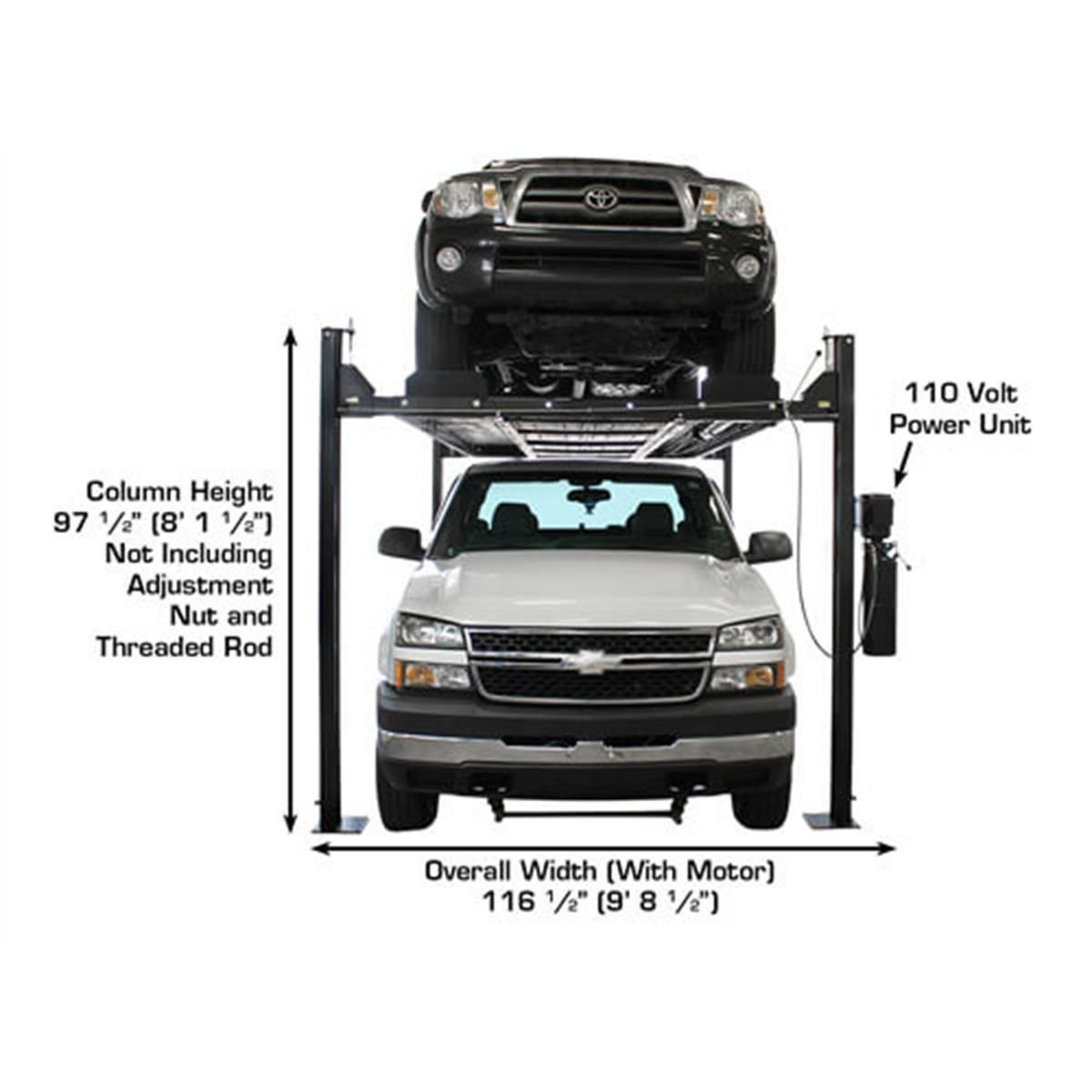

• Height Of Columns 98 1/2″ (8′ 2 1/2″)
• Overall Width (Without Motor) 108″ (9′)
• Overall Width (With Motor) 116 1/2″ (9′ 8 1/2″)
• Overall Length With Approach Ramp 222″ (18′ 6”)
• Approach Ramp 37″ (3′ 1″)
• Runway Width 22″ (w/ Rails) or 18 3/4″ (Driving Surface)

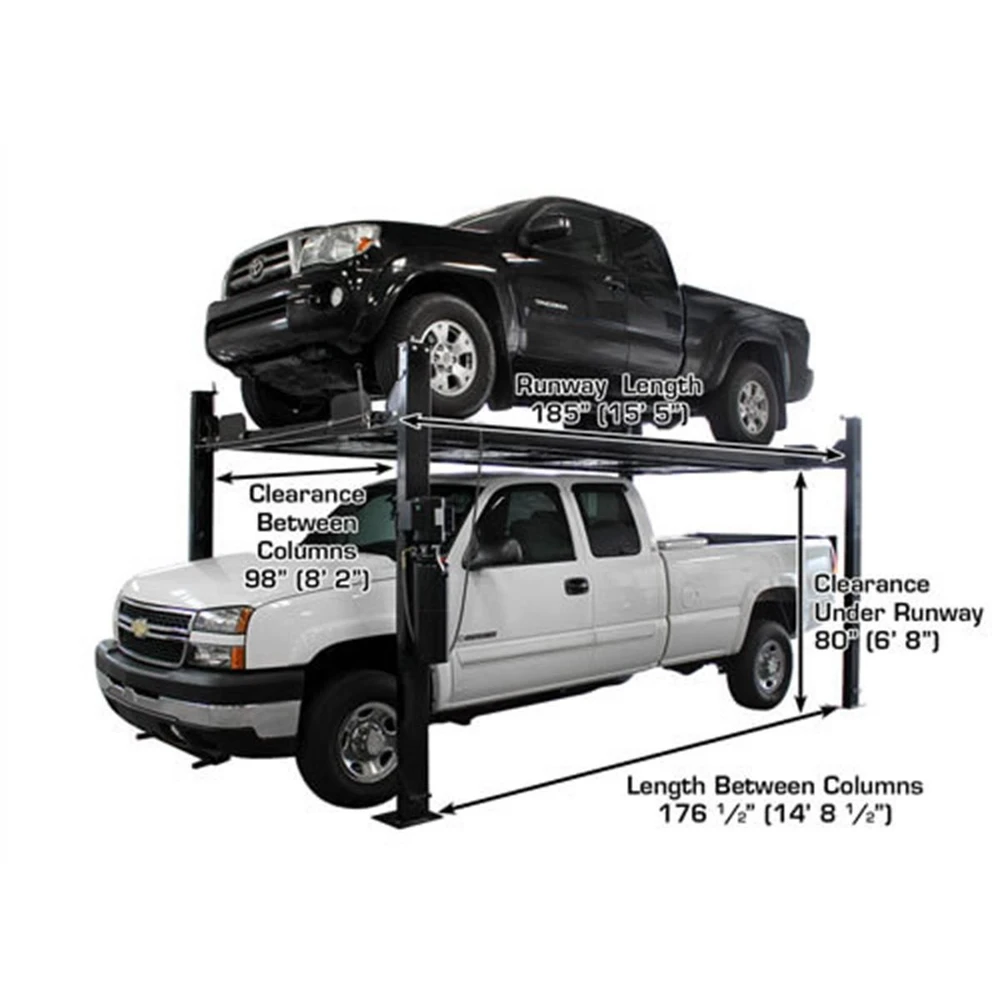

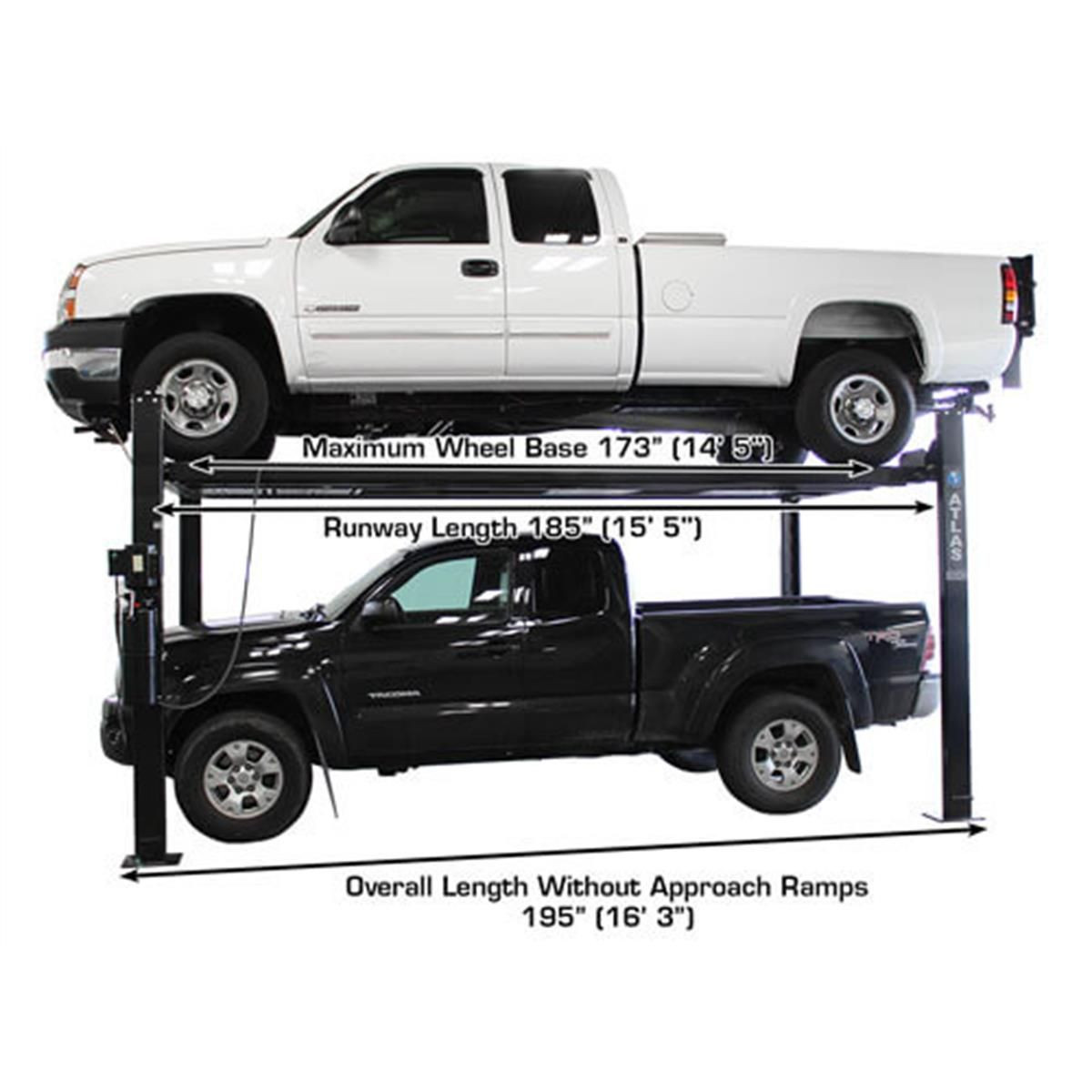

• Runway Length 185″ (15′ 5”)
• Runway Thickness 4 1/2″
• Width Between Runways 38″ (3′ 2″)
• Width Between Runway Rails 34″ (2′ 10″)
• Outside Runway To Outside Runway 77 3/4″ (6′ 5 3/4″)
• Clearance Between Columns 98″ (8′ 2″)
• Length Between Columns 176 1/2″ (14′ 8 1/2″)
• Maximum Wheel Base 173″ (14′ 5″)

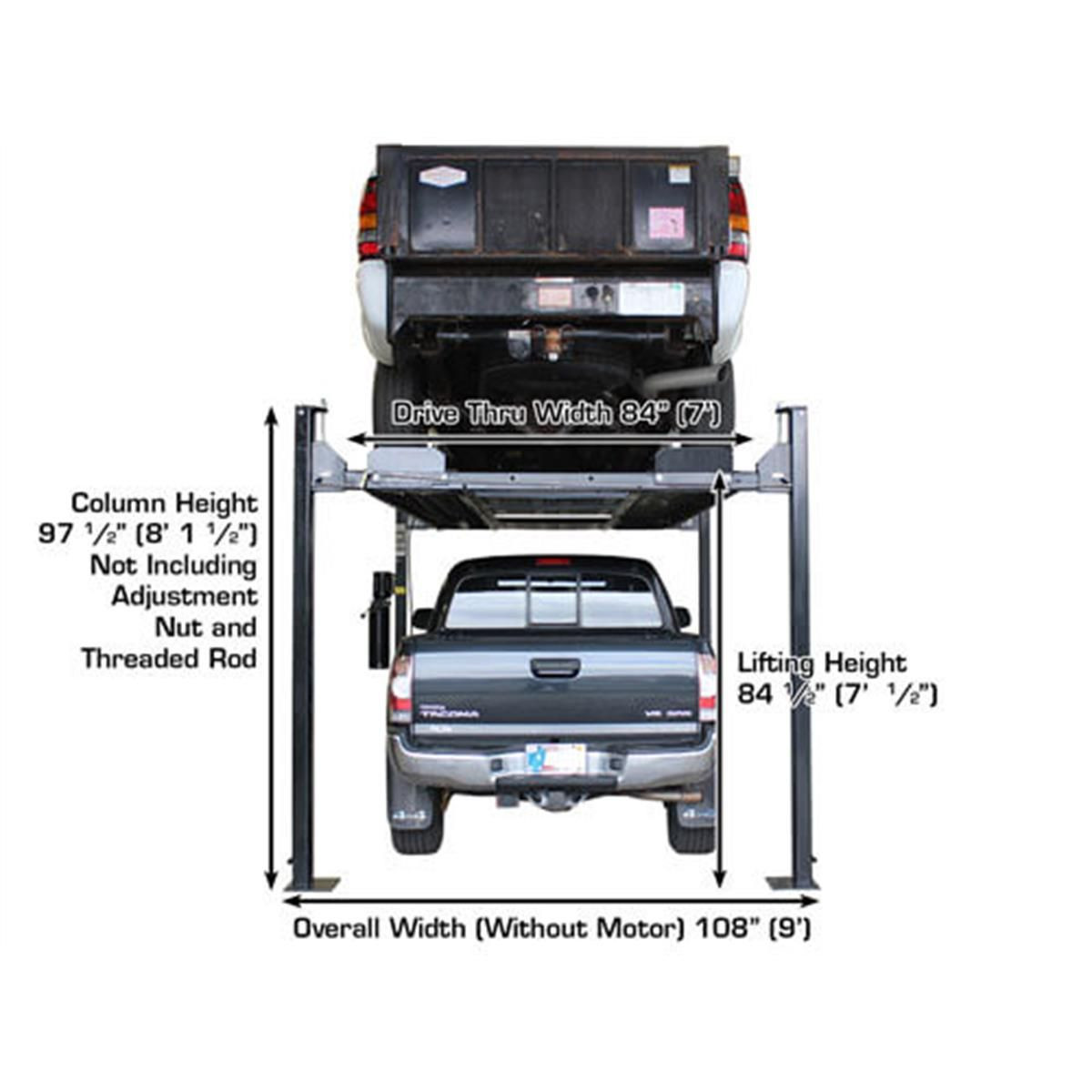

• Drive Thru (Outside Of Tire To Outside Of Tire) 84″ (7′)
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 1,900 lb.

WARNING: cancer and reproductive harm – www.P65Warnings.ca.gov

Lifting Capacity:

8,000 lbs
