Description

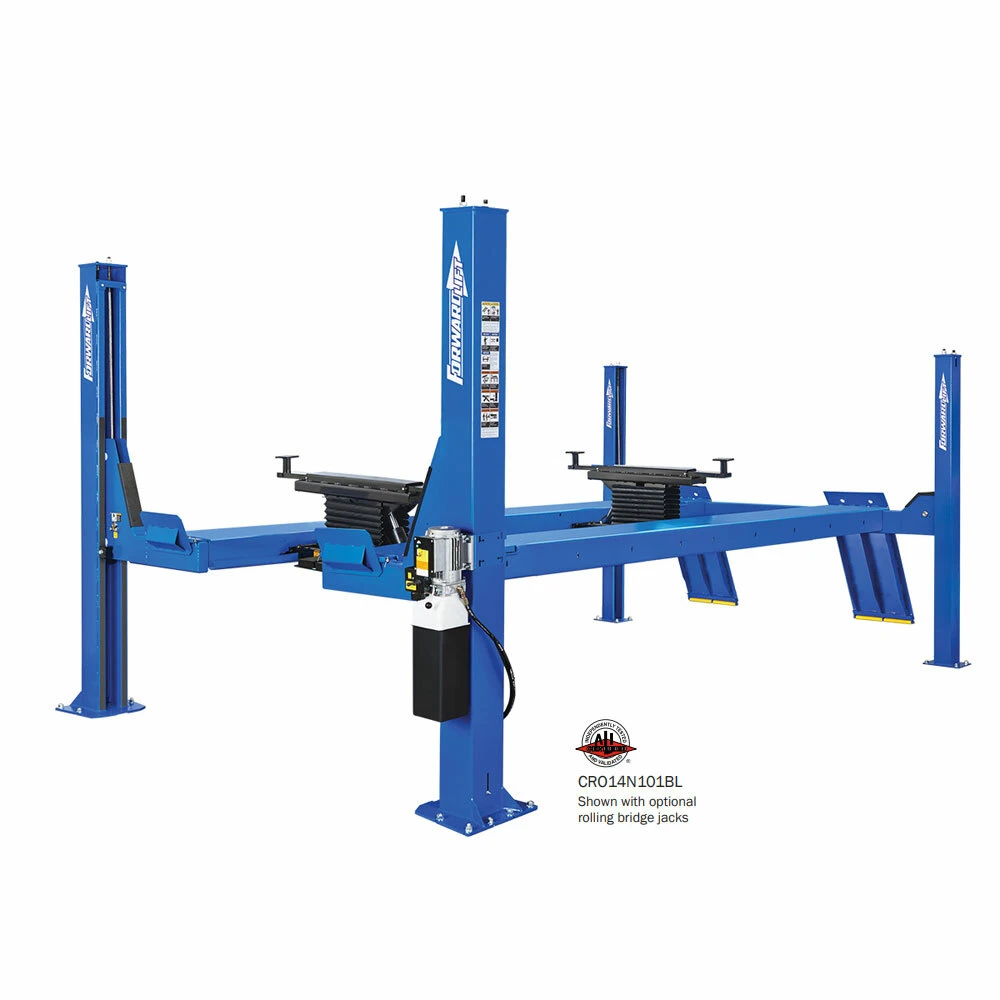

CRO14 Four-Post Lift Features:
The foundation of a CRO14 14,000 lbs. capacity Forward four-post lift is the cable and pulley system under the runways. All hydraulics and mechanical lifting components are concealed in this area; tucked out of the way for a clean finish however easily accessible for inspection when needed. Forward Lift offers a durable powder coated hammer tone paint finish on its lifts. Our four-post lifts have a multi-position lock component which allows any four-post lift to be level at any lock position. Self chocking approach ramps and wheel chocks come standard with the CRO14.
Additional Features:
- Heavy duty hydraulic cylinder
- Single Point latch release system
- One piece formed runway design incorporates rolling jack channels
- Multiple position latch points in each structural leg
- Rolling Jacks sold separately
Specifications
| Specifications | CRO14N102Y |
|---|---|
| Capacity | 14,000 lbs. (6350kg) |
| Rise | 78-3/4″ (2000mm) |
| Maximum Wheelbase | 215″ (5461mm) |
| Overall Length | 286″ (7264mm) |
| Overall Width | 140-1/2″ (3568mm) |
| Width Inside Columns | 116-1/4″ (2953mm) |
| Length Between Columns | 227 3/4″ (4946mm) |
| Overall Height | 109-1/16″ (2768mm) |
| Runway Width | 20″ (508mm) |
| Runway Height | 7″ (178mm) |
| Width Between Runways | 43″ (1092mm) |
| Rise Time | 79 seconds |
| Voltage* | 208/230v |
| Motor | 2HP |
| Minimum Bay Size | 15′ x 28″ (4572 x 8534mm) |
|
* single phase standard; 3-phase available at additional cost |
|
- Free_shipping:
- Free Shipping
- Product Manual/Brochure:
-
Download - Lifting Capacity:
- 14,000 lbs
- Certification:
- ALI Certified
