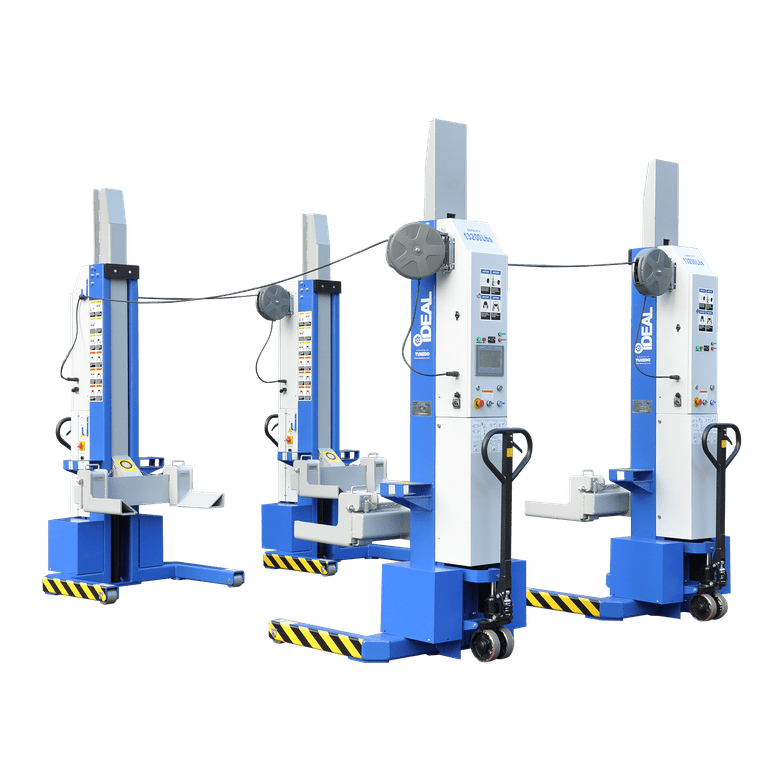

iDEAL MSC-13K-B-452 Mobile Column Lift, Four Column Set, 52,000 lbs.

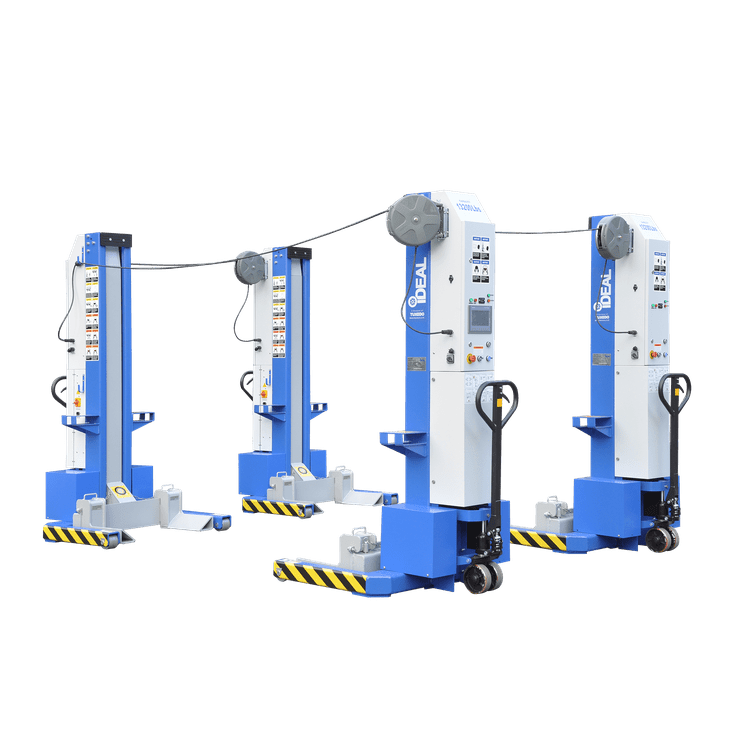

iDEAL MSC-13K-B-452 Mobile Column Lift, Four Column Set, 52,000 lbs. - Image 2

iDEAL MSC-13K-B-452 Mobile Column Lift, Four Column Set, 52,000 lbs.

Original price was: $33,590.00.Current price is: $20,154.00.

Authorized Dealer Full manufacturer warranty and support.
Manufacturer Warranty Warranty coverage included by brand.
Shipping & Availability Contact us for live warehouse availability.
SKU MSC-13K-B-452 Category

Product Details

iDEAL Wheel Engaging Mobile Column Set (Set of 4)

The MSC-13K-B can be purchased in sets of 2, 4, or 6 columns with a total capacity of up to 78,000lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift.

The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.

Features

  • Up To 78,000 Lbs. Capacity
  • Easy To Use Control Panel
  • Operable From Any Column
  • Adjustable Fork Accommodates Many Wheel Sizes
  • Direct Drive Hydraulic Cylinder
  • Independent Mechanical Locking System
  • Battery Operated With Onboard Charging System
  • Easily Moved For Use In Multiple Bays
  • Small Footprint Allows For Out Of The Way Storage
  • Available In Two, Four And Six Column Configuration
  • Optional Accessories For Expanded
  • Service Operations

Specifications

MSC-13K-B-452
Column Configurations 4 Column
Capacity 52,000 lbs.
Charging Voltage
100-140VAC, 60HX, Single Phase
Lifting Height 67.1″
Column Heights Min/Max
Min. 88.6″ / Max 155.5″
Column Width 44.1″
Fork Adjustable Range 6.3″ 22″
Fork Length 14″
Fork to Column Clearance 9.3″
Rise Time 75 Seconds
Max Distance between Columns 32.8′
Min. Concrete Surface Strength 3,000PSI
Set-Up / Operation Indoors
*Battery Type (Recommended)
12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105
*Batteries Not Included

Ship Weight 1,210 lbs per Column

Warranty

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.

Specifications

Additional information

Brand

iDEAL
BUY WITH CONFIDENCE

Questions before you order?

Our team can help confirm specifications, compatibility, availability, and delivery details before you purchase.

Manufacturer Warranty Coverage backed by the product manufacturer.
Shipping Guidance We help confirm freight and delivery requirements.
Product Expert Support Get help choosing the right equipment for your setup.
CONTACT SUPPORT
ORDER INFORMATION

Shipping, Returns & Warranty

Everything you need to know before and after your order.

Free Shipping on Select Orders

Hundreds of products ship free within the continental U.S. Oversized equipment may require a freight quote based on your ZIP code.

Typical Processing Times

Some items ship within 24 hours, while others may take up to approximately five business days before leaving the warehouse.

Tracking & Delivery Coordination

Tracking is sent by email once your order ships. Freight deliveries are typically coordinated with you before arrival.

Inspect Freight Before Signing

Check the packaging before accepting freight delivery. Photograph visible damage and contact us promptly if there is an issue.

VIEW SHIPPING POLICY →
14-Day Return Window

Contact us within 14 days of purchase if you need to request a return, exchange, replacement, or refund.

Brand-Specific Conditions

Some manufacturers have specific return requirements or restrictions. Product-specific terms may appear on the individual product page.

Damaged or Missing Parts

Send your order number and photos to our support team and we will work with the supplier to resolve damaged or missing items.

Return Approval Required

Contact YardMansion before returning any product so we can provide the correct return instructions and authorization.

VIEW RETURN POLICY →
Manufacturer Warranty

Products include applicable manufacturer warranty coverage. Warranty duration and terms vary by brand and product.

Product Expert Support

Need help with specifications, fitment, troubleshooting, or warranty questions? Our support team can help guide you.

Installation Guidance

We do not install equipment directly, but for many products we can help connect you with manufacturer-recommended installation resources.

Need Warranty Help?

Contact support@yardmansion.com with your order information and details about the issue.

VIEW WARRANTY DETAILS →
CUSTOMER REVIEWS

What Customers Are Saying

Ratings and reviews for this product from YardMansion customers.

Description

iDEAL Wheel Engaging Mobile Column Set (Set of 4)

The MSC-13K-B can be purchased in sets of 2, 4, or 6 columns with a total capacity of up to 78,000lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift.

The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.

Features

  • Up To 78,000 Lbs. Capacity
  • Easy To Use Control Panel
  • Operable From Any Column
  • Adjustable Fork Accommodates Many Wheel Sizes
  • Direct Drive Hydraulic Cylinder
  • Independent Mechanical Locking System
  • Battery Operated With Onboard Charging System
  • Easily Moved For Use In Multiple Bays
  • Small Footprint Allows For Out Of The Way Storage
  • Available In Two, Four And Six Column Configuration
  • Optional Accessories For Expanded
  • Service Operations

Specifications

MSC-13K-B-452
Column Configurations 4 Column
Capacity 52,000 lbs.
Charging Voltage
100-140VAC, 60HX, Single Phase
Lifting Height 67.1″
Column Heights Min/Max
Min. 88.6″ / Max 155.5″
Column Width 44.1″
Fork Adjustable Range 6.3″ 22″
Fork Length 14″
Fork to Column Clearance 9.3″
Rise Time 75 Seconds
Max Distance between Columns 32.8′
Min. Concrete Surface Strength 3,000PSI
Set-Up / Operation Indoors
*Battery Type (Recommended)
12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105
*Batteries Not Included

Ship Weight 1,210 lbs per Column

Warranty

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.

Additional information

Brand

iDEAL

Reviews

There are no reviews yet.

Be the first to review “iDEAL MSC-13K-B-452 Mobile Column Lift, Four Column Set, 52,000 lbs.”

Your email address will not be published. Required fields are marked *
