Description
Overview

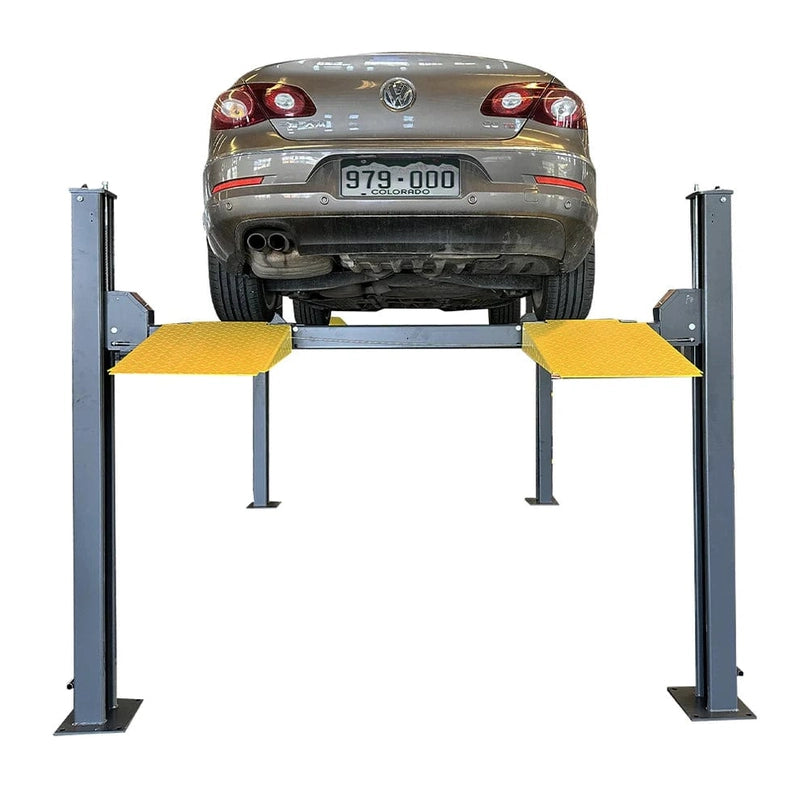

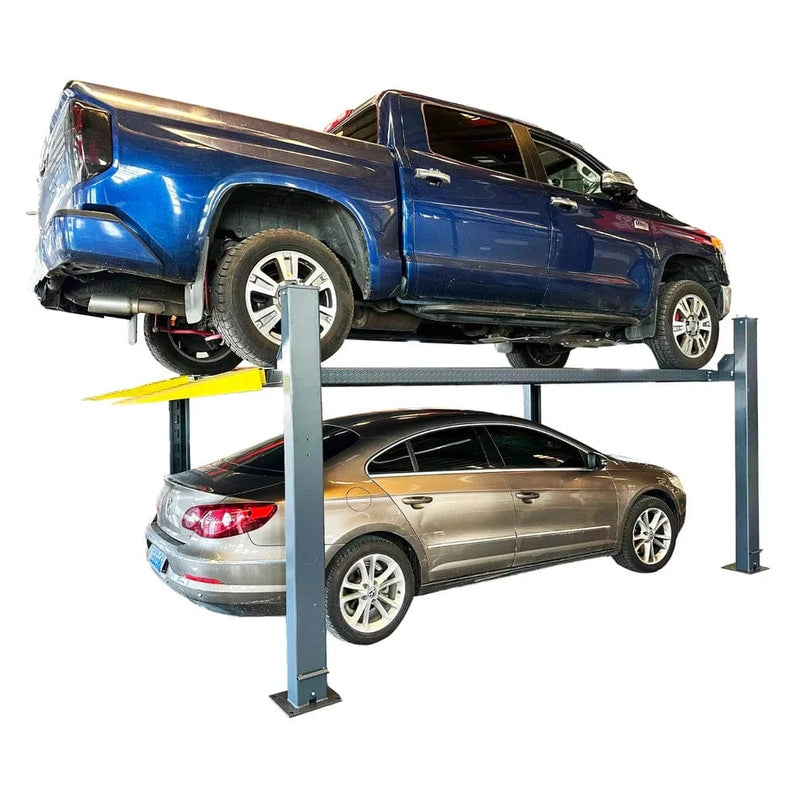

The Katool KT-4H850 8,500 lbs Heavy Duty 4-Post Car Lift is your dependable solution for robust lifting, offering an impressive 8,500 lbs lifting capacity. This CE-approved and certified lift meets 115% dynamic loading capacity standards and passes rigorous 150% static loading capacity tests, ensuring top-tier performance and safety for your garage or workshop.
Equipped with a single-point manual safety lock release and four mechanical locking devices with primary and secondary safety locks, the KT-4H850 provides secure and controlled operations. Its non-skid diamond platforms, adjustable safety lock ladders, and included caster kit enhance stability, adaptability, and mobility. Additional features, such as the two drip trays and a jack tray, make this lift a versatile and convenient tool for any vehicle maintenance needs.
Powered by a high-quality hydraulic system, the lift is available in 110V/60HZ/1PH or optional 220V/60HZ/1PH configurations, ensuring reliable and efficient lifting every time.
*Concrete Requirements: Ensure a minimum concrete thickness of 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in serious injury or equipment failure. It is the customer’s responsibility to verify concrete specifications before purchase and installation.
Key Features
- 8,500 lbs Lifting Capacity: Built to handle robust vehicles with ease.
- CE Approved and Certified: Meets 115% dynamic and 150% static loading capacity standards.

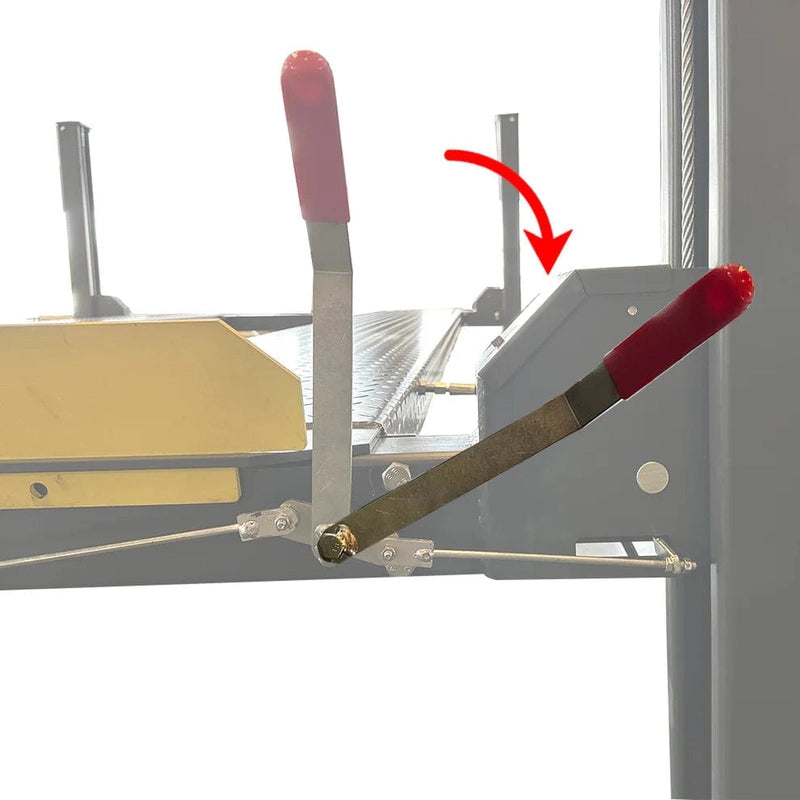

- Single-Point Manual Safety Lock Release: Ensures secure and controlled lifting operations.

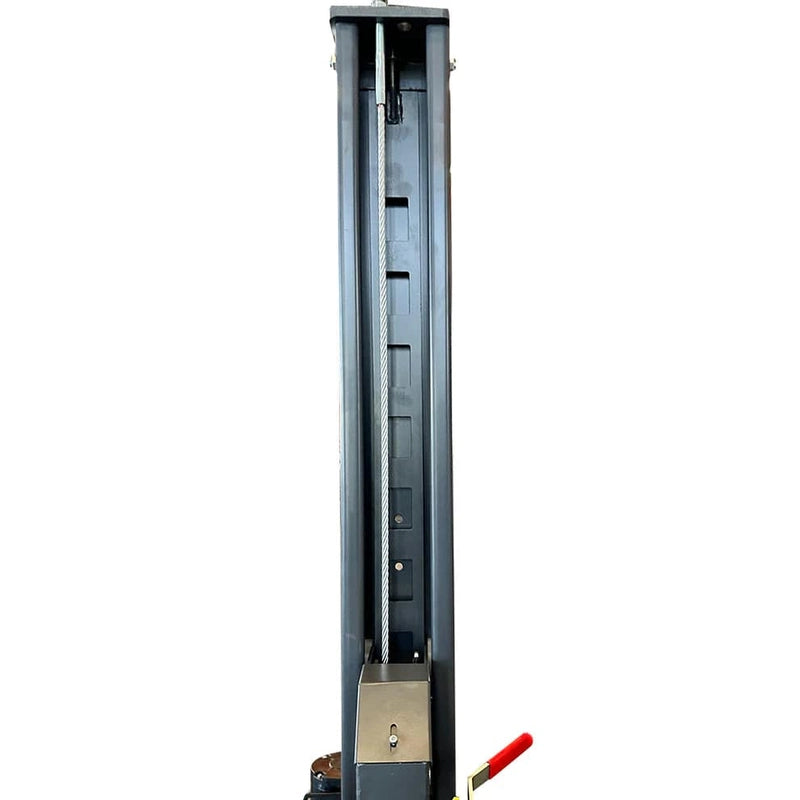

- Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for added security.
- Powerside Column: Flexible installation options at either side, front, or rear.
- Non-Skid Diamond Platforms: Provides stability and safety during operation.

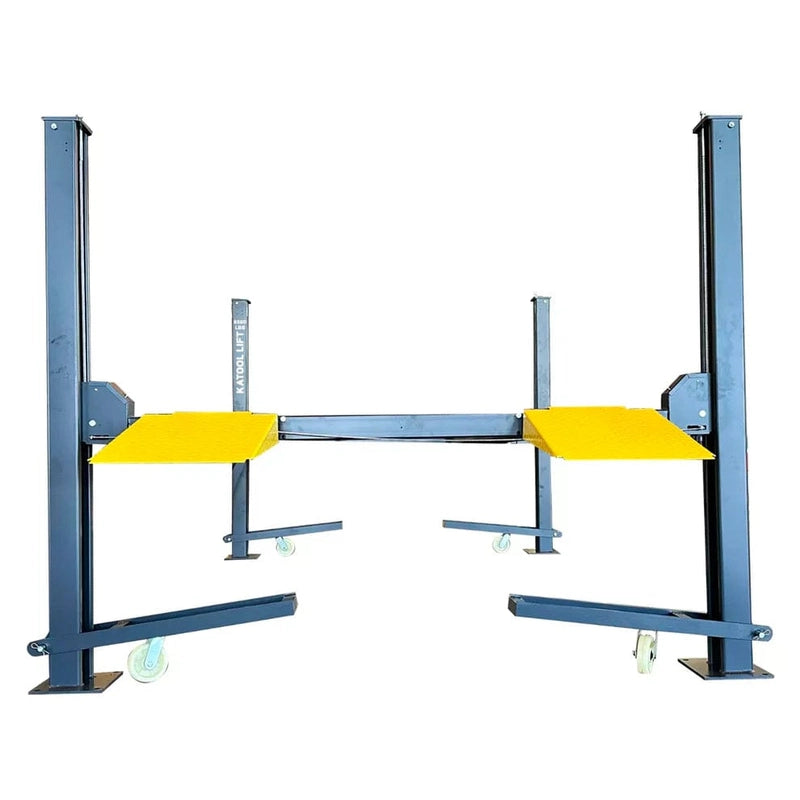

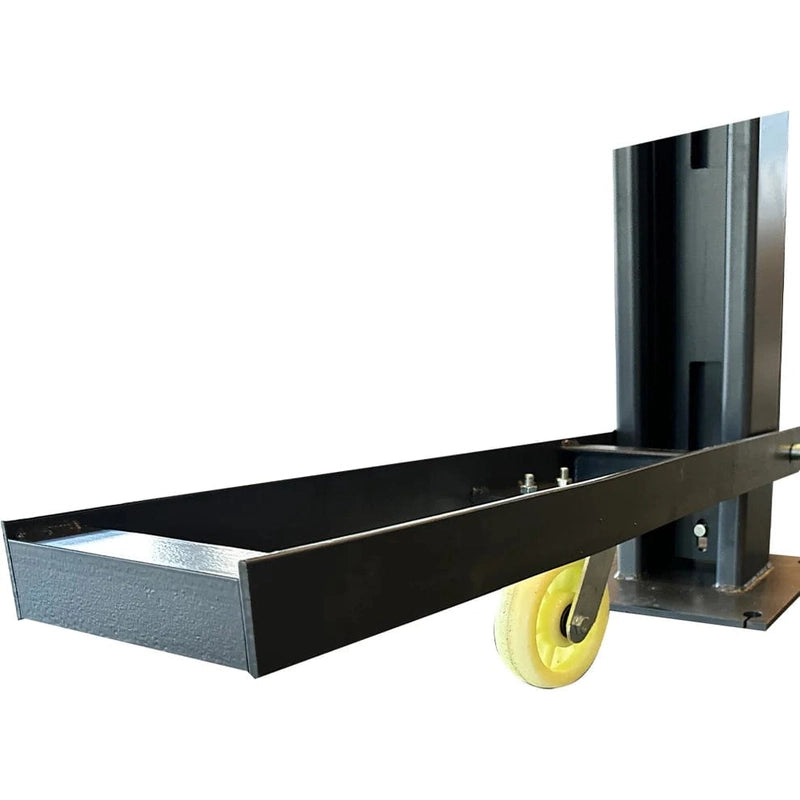

- Caster Kit Included: Easily move the lift around your garage for optimal positioning.

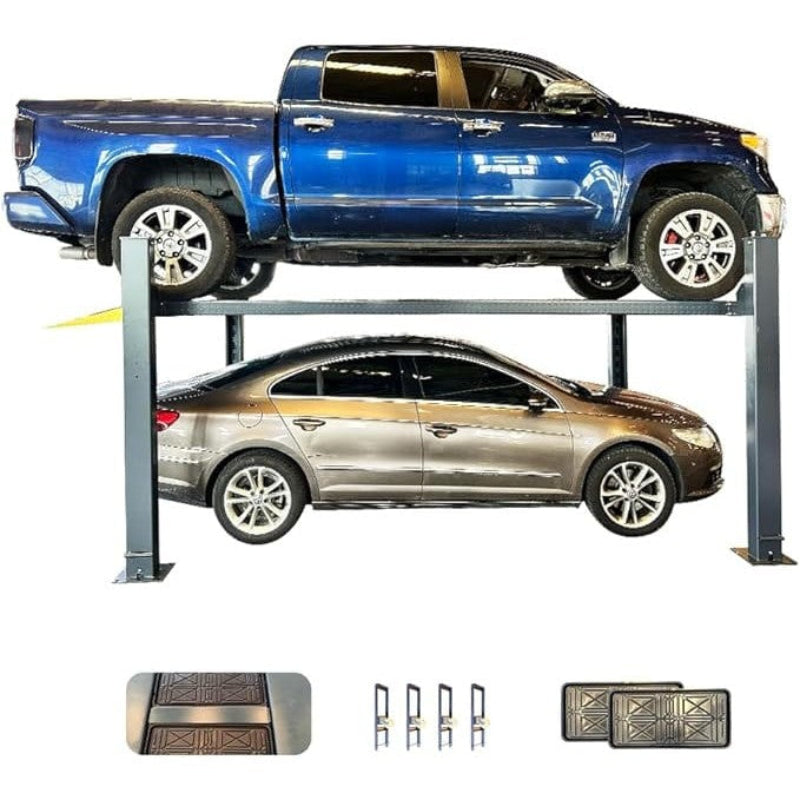

- Two Drip Trays and Jack Tray: Included for added convenience and cleanliness.
- High-Quality Hydraulic System: Available in 110V/60HZ/1PH or optional 220V/60HZ/1PH configurations for efficient performance.

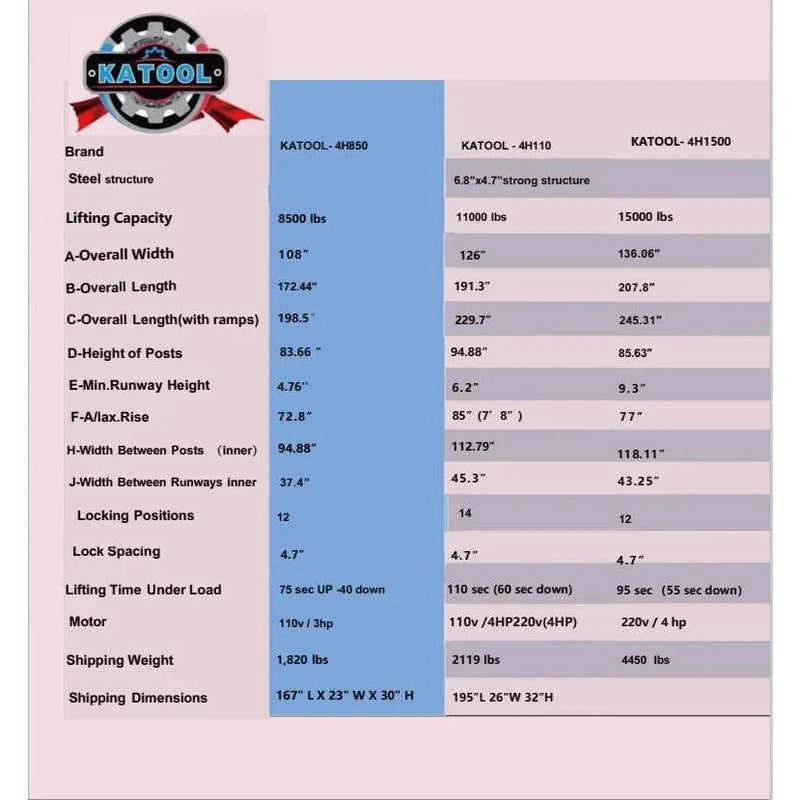

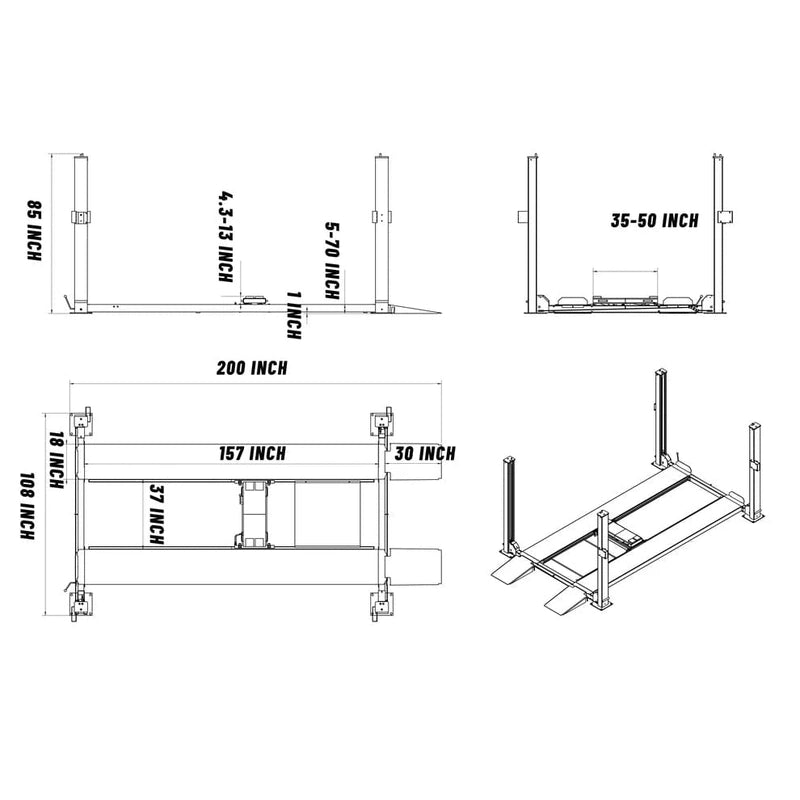

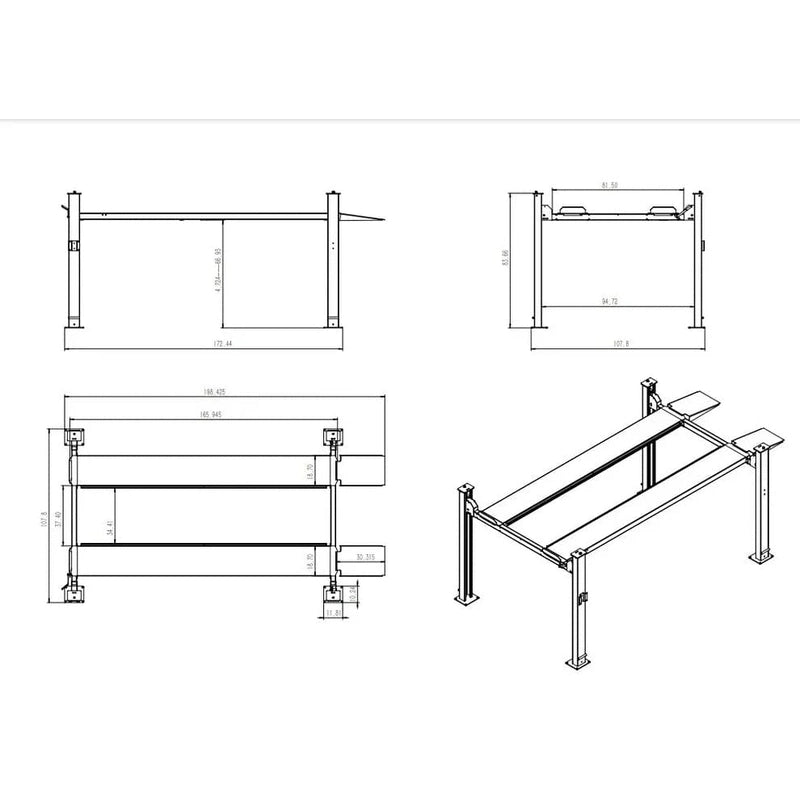

Specifications
| Lifting Capacity | 8,500 lbs (3,850 kg) |

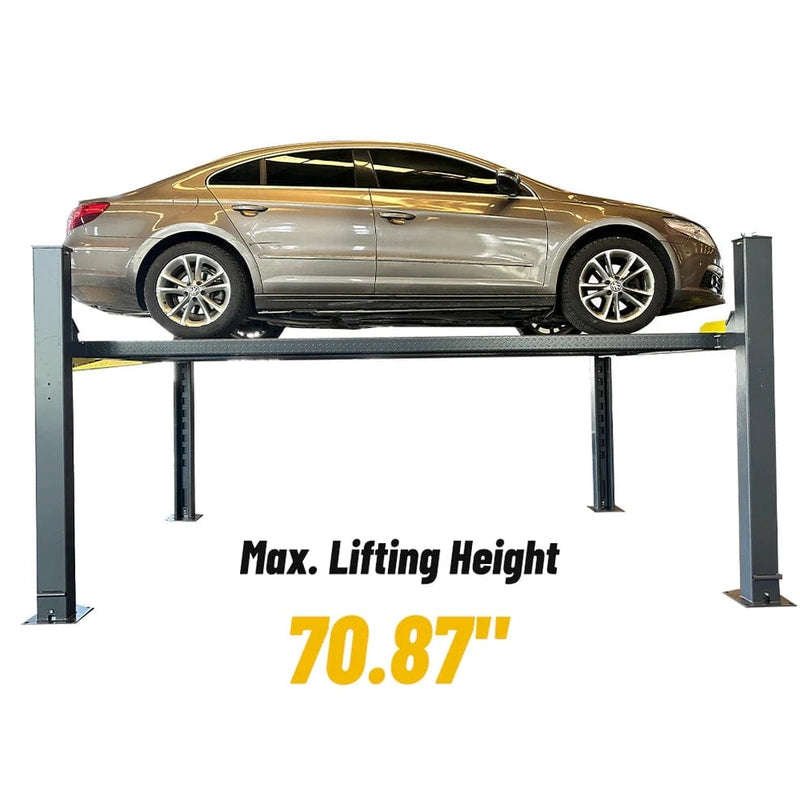

| Max. Lifting Height | 70.87″ (1,800 mm) |
| Lifting Time | 75s Up / 40s Down |
| Height of Posts | 83.66″ (2,125 mm) |
| Width Overall | 107.95″ (2,742 mm) |
| Length Overall | 198.43″ (5,040 mm, with ramps) |
| Inside Columns | 94.72″ (2,406 mm) |
| Min. Runway Height | 4.76″ (121 mm) |
| Motor | 110VAC/60HZ/1PH |
| Net Weight | 1,820 lbs (826 kg) |
| Shipping Dimensions | 167″ L x 23″ W x 30″ H |
User Manual
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H850 User Manual. Click the link below to download:
Installation Video
Warranty
Katool provides a 1-year limited warranty on all parts and product defects. Additionally, vehicle lifts include a 3-year warranty on structural components. Optional 2-year extended warranty plans are also available for purchase.
Warranty Includes:
- Cylinders, power units, motors, displays, and electronics.
- Structural components for vehicle lifts.
Warranty Conditions:
- Claims must be within the warranty period and are non-transferable.
- Replacement parts are provided free of charge, including shipping.
- Labor costs are not included in the warranty.
- Disassembly of equipment prior to warranty approval is not permitted.
All warranty claims are subject to review by the warranty/service department. Supporting documentation, such as photos or videos of defects, may be required for approval.
