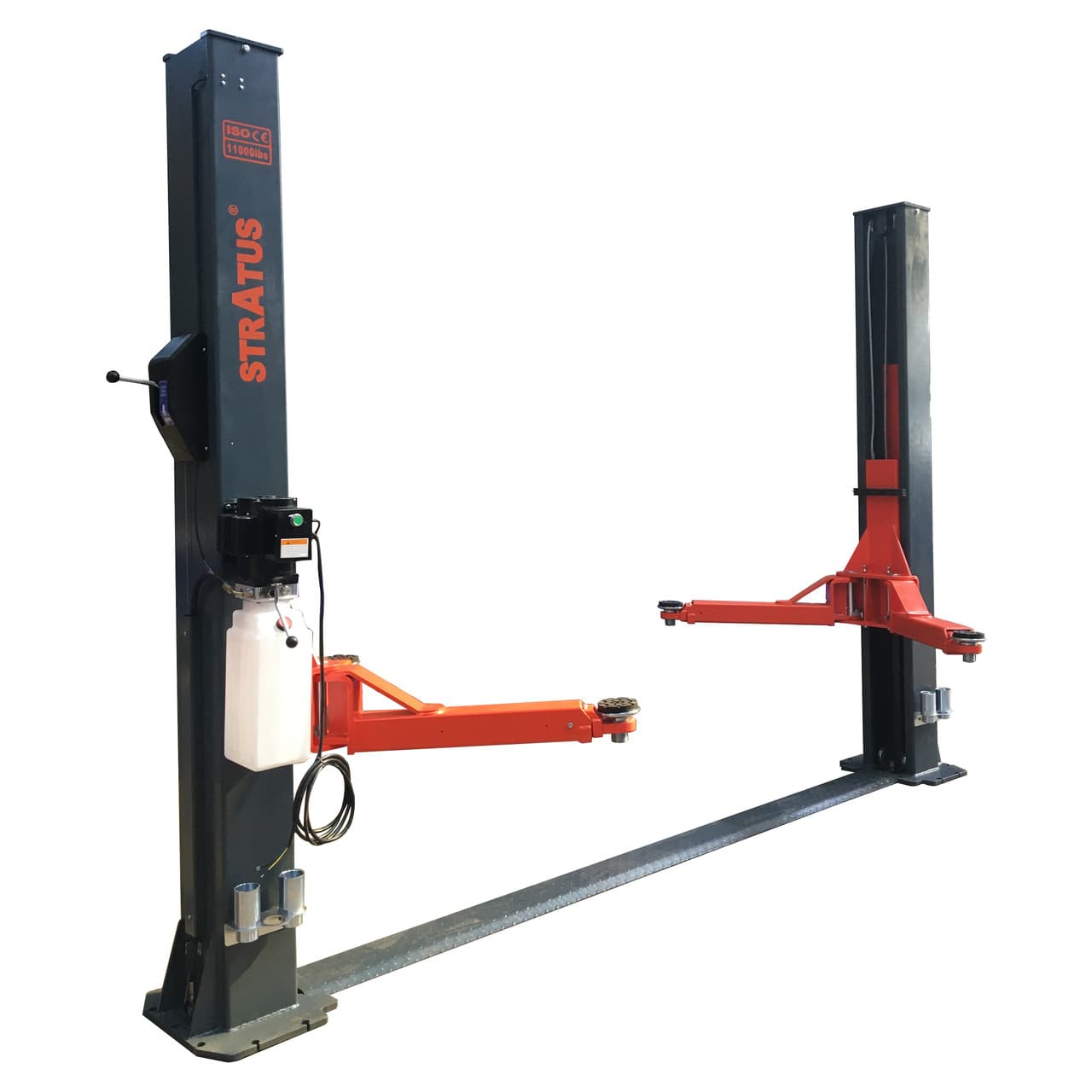

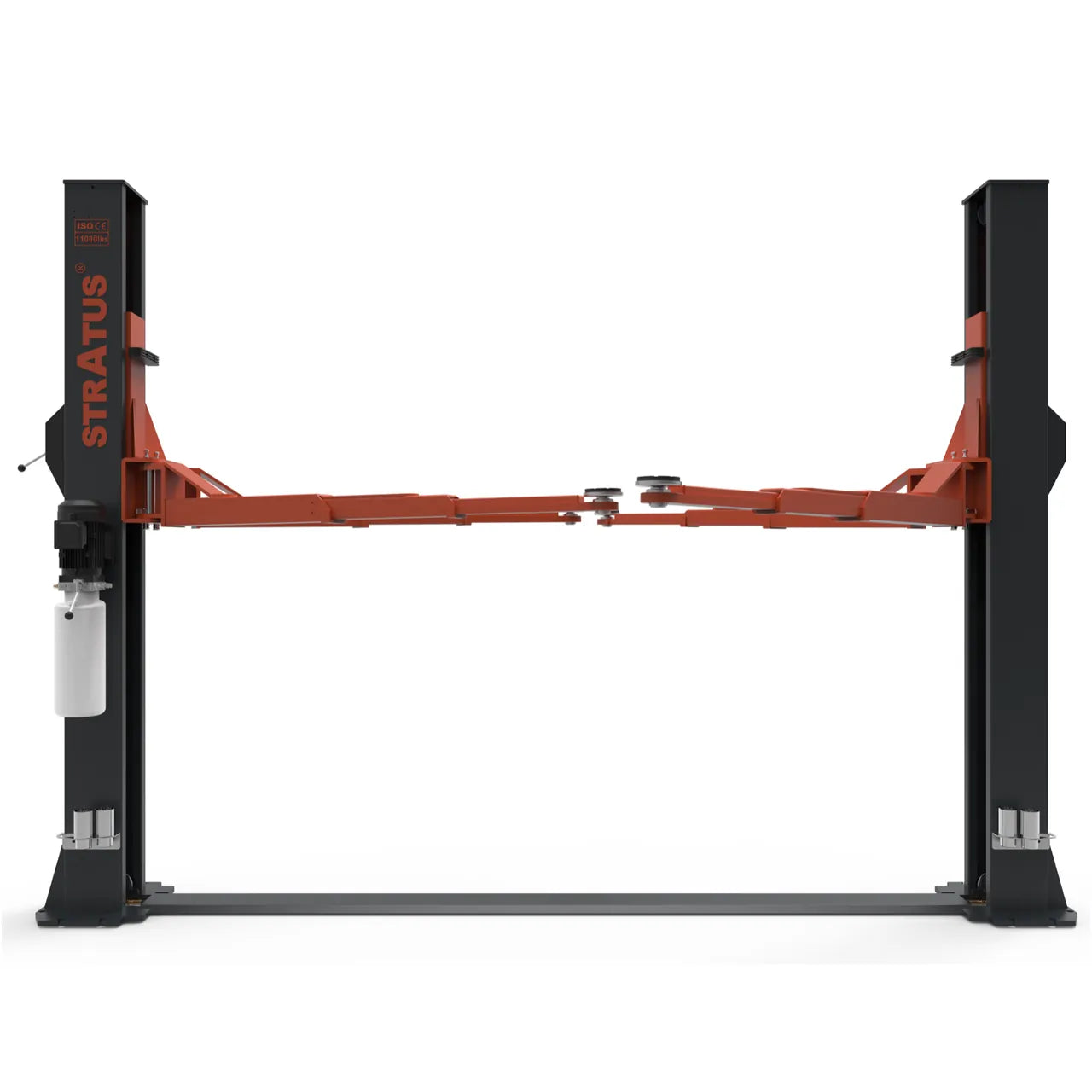

The Stratus SAE-F12X is a 12,000-lb extra-wide two-post floor plate lift built for shops that service full-size trucks, vans, and SUVs alongside everyday cars. Its open-top columns and floor-mounted base plate leave the entire underside of the vehicle clear, while extra-wide column spacing — 116 3/16″ of drive-thru clearance and 129 15/16″ between the columns — gives wide-body pickups and dual-rear-wheel trucks room to load square.
Two direct-drive hydraulic cylinders, synchronized by dual multi-strand equalizer cables, raise the vehicle to a 74 13/16″ lifting height (78 13/16″ with the screw-up adapters) in about 60 seconds. A single-point manual release lets one technician disengage both column safety locks from one lever, and triple-telescoping symmetric arms reach from 35 1/16″ to 74 13/16″ to spot the pads on a short hatchback or a long-wheelbase pickup.
Every F12X is proof-tested to 115% of rated capacity dynamically and 150% statically, runs on automatic spring-loaded arm restraints and a top limiter switch, and is backed by a 5-year structural warranty.
Features

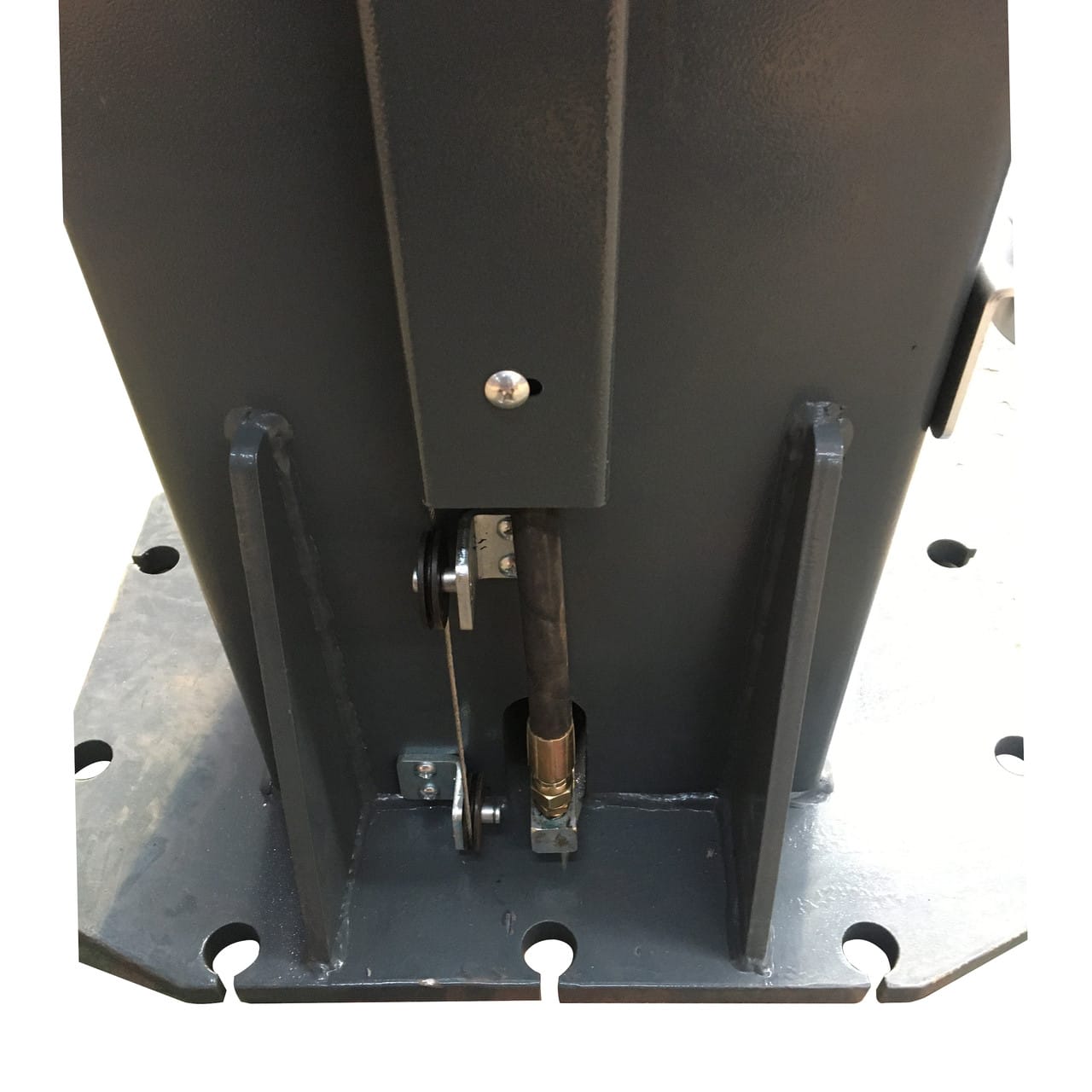

- Floor plate (base plate) design with open top — the cross member sits on the floor instead of overhead, so there is full, unobstructed access to the vehicle’s underside.
- Single-point manual release — one lever on the main column releases the safety locks in both columns at the same time.

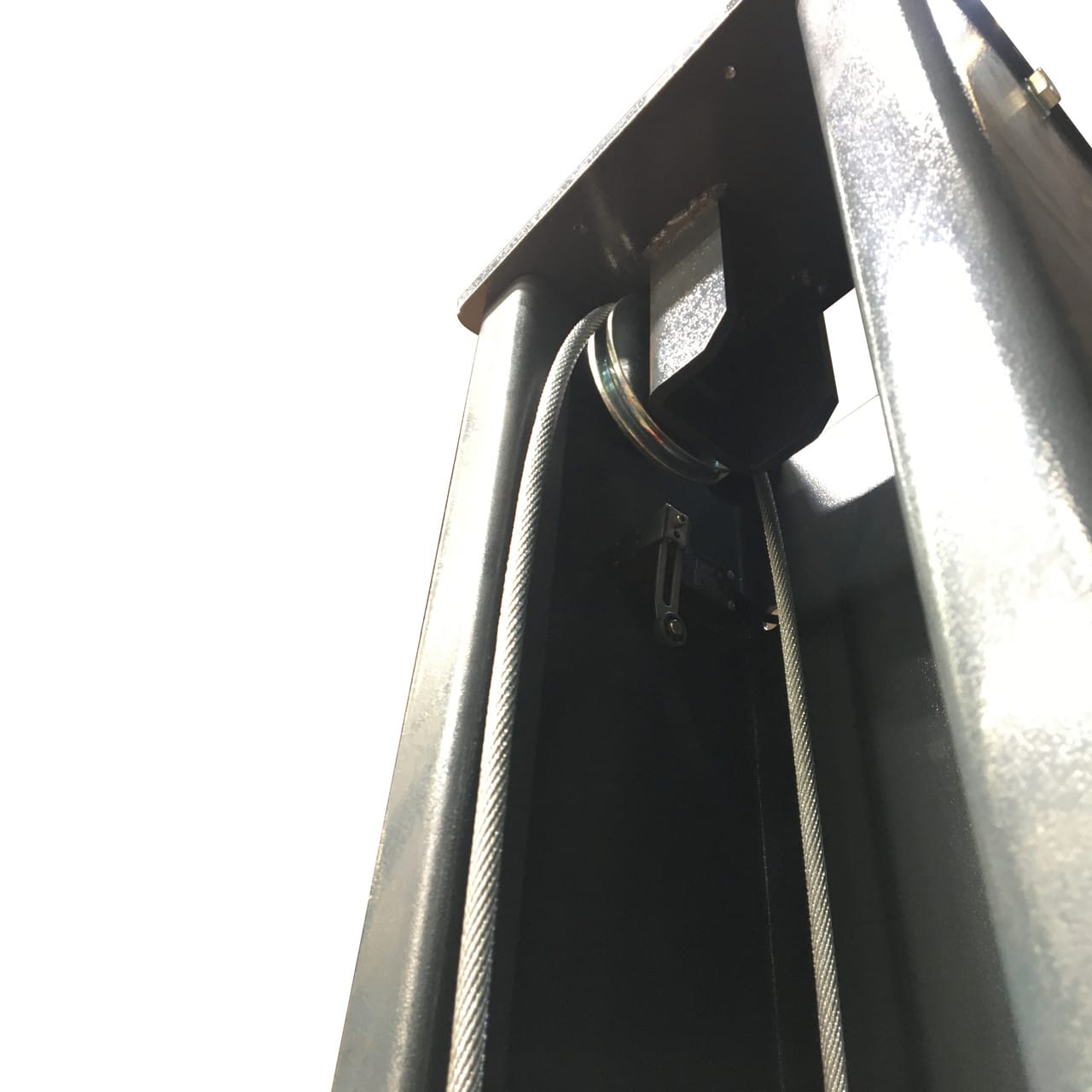

- Dual direct-drive hydraulic cylinders synchronized by two multi-strand, non-rotary, non-stretch equalizer cables (9 mm) for level, balanced lifting.
- Triple-telescoping symmetric swing arms with reach from 35 1/16″ to 74 13/16″ and screw-up rubber contact pads.

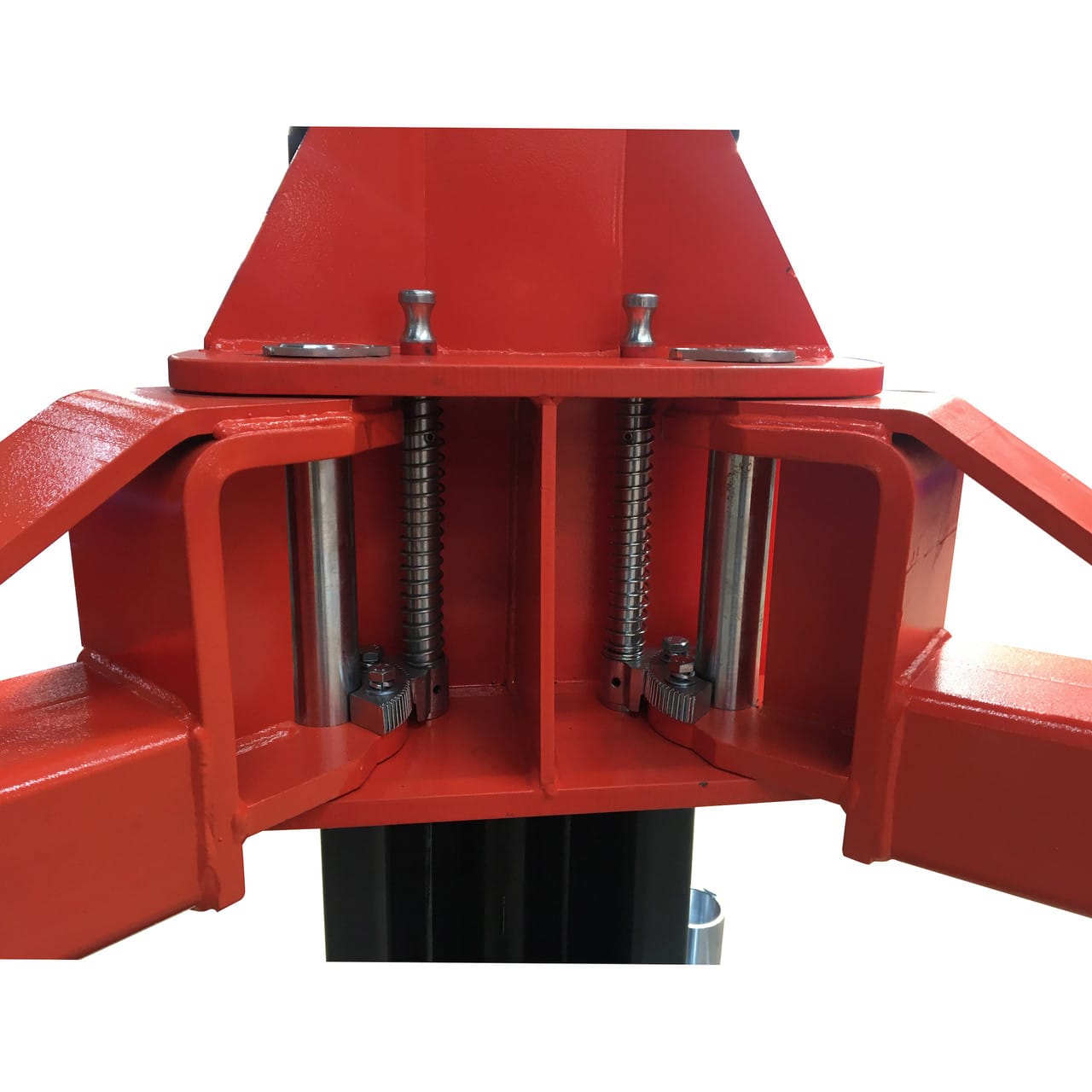

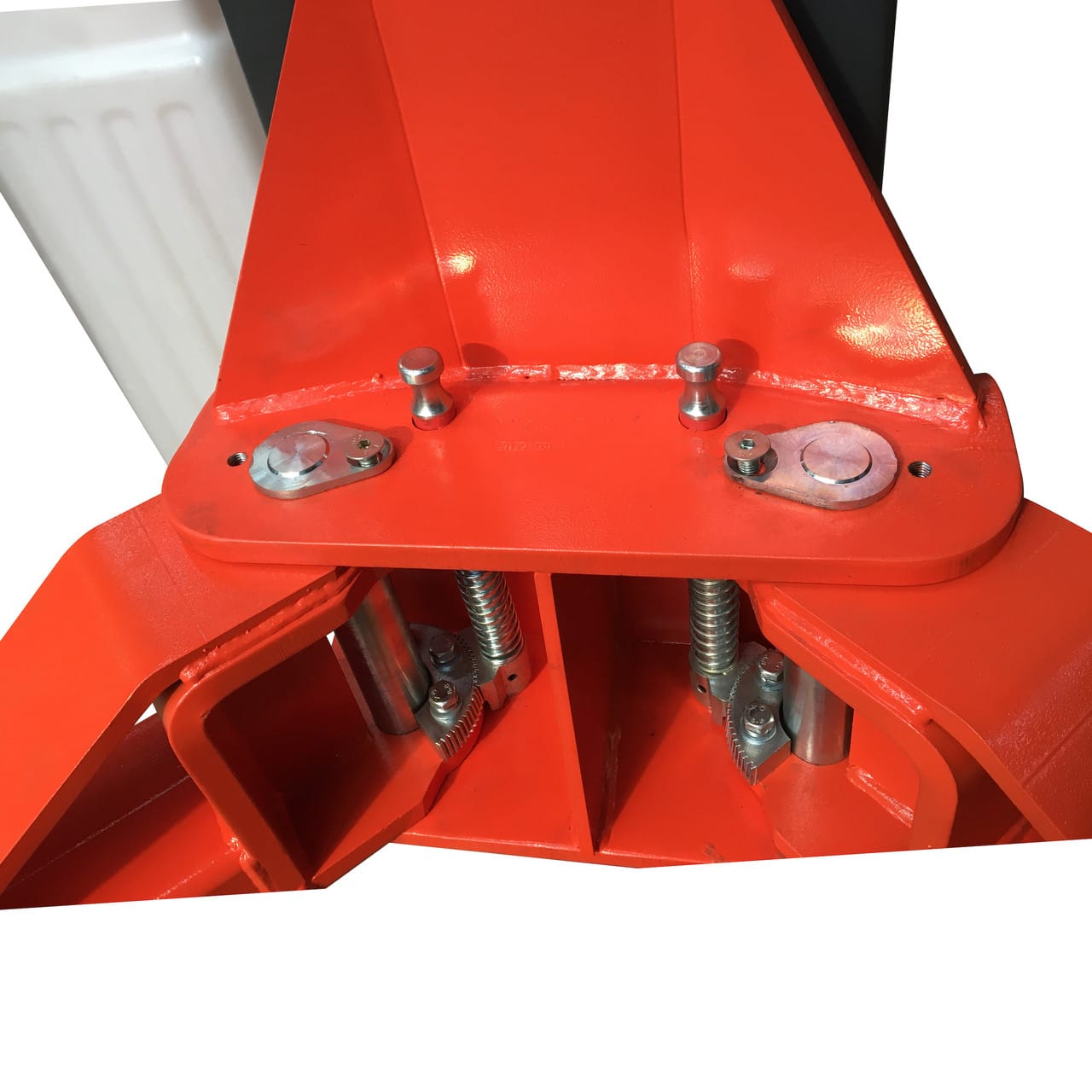

- Automatic spring-loaded arm restraints that lock the arms against rotation once the vehicle is loaded.

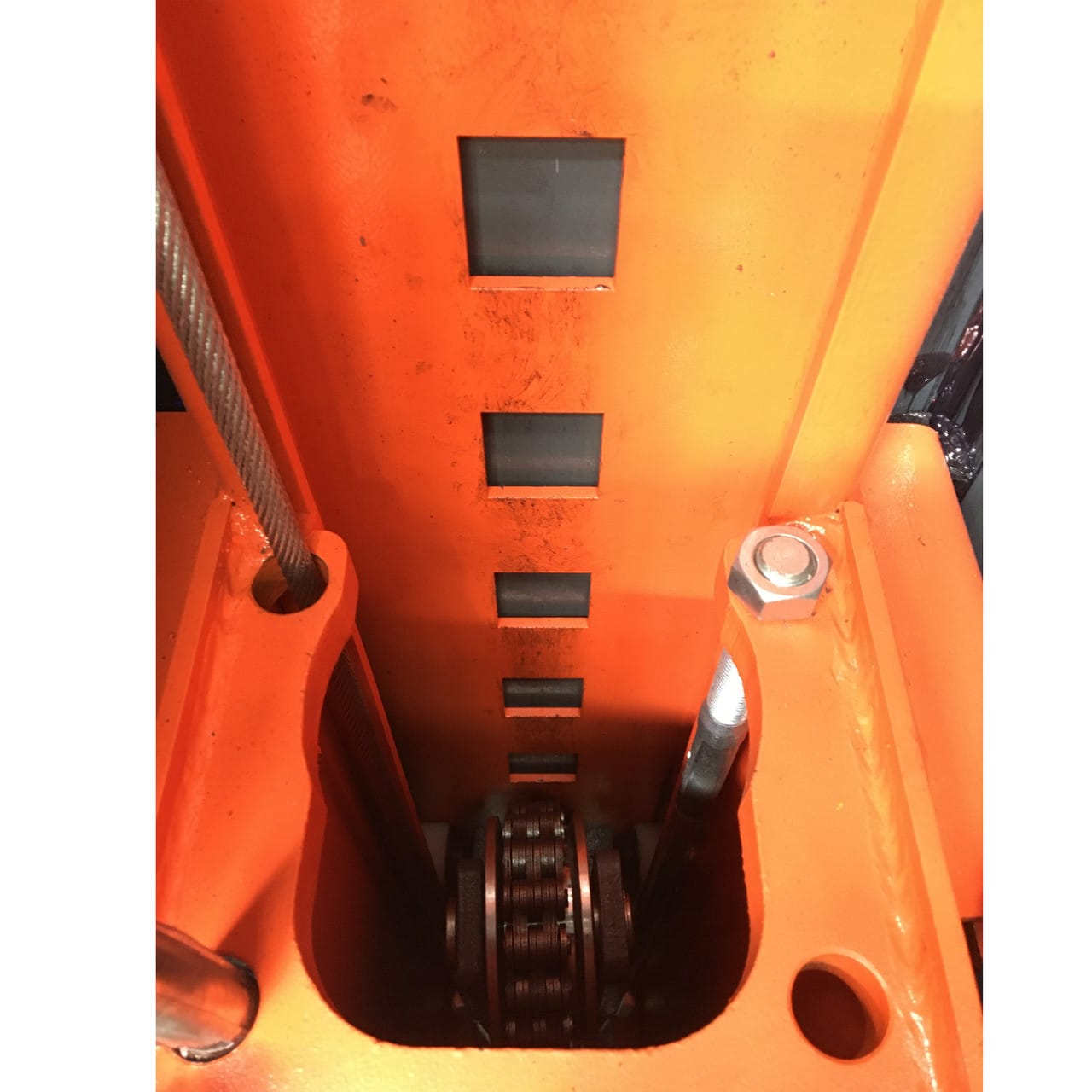

- Multi-position mechanical safety locks that engage automatically as the lift rises.
- Top limiter switch stops the motor automatically at full rise.
- Nylon slide blocks for smooth, low-maintenance carriage travel.
- Heavy-gauge steel: 6 mm columns and carriages, 8 mm arms.
- Proof-tested by dynamic test at 115% and static test at 150% of rated capacity.
- Durable powder-coat finish in Granite Gray (RAL 7026) with Rein Orange (RAL 2004) arms.
- CE marked.
What’s Included

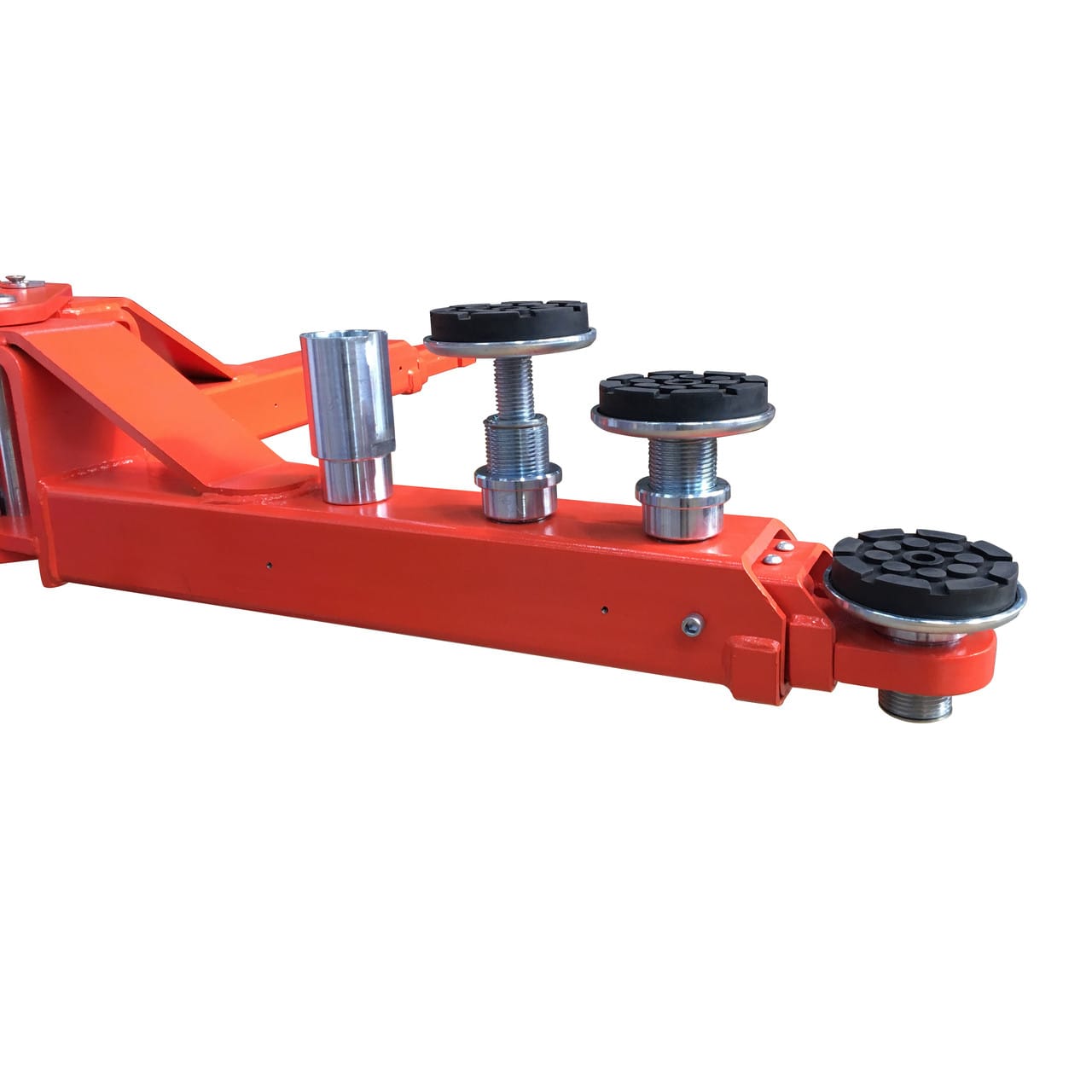

- 4 screw-up rubber pads — 60 mm (2 5/16″) peg
- 4 truck adapters — 4″, 60 mm (2 5/16″) peg
- 14 concrete anchors (M20 × 160 mm) and assembly hardware
- Owner’s manual
Optional accessories, sold separately: cradle pads (60 mm peg) and a tripod jack stand.
Specifications
| Stratus SAE-F12X Specifications | |
|---|---|
| Lifting capacity | 12,000 lb |
| Lifting height (with adapters) | 78 13/16″ (2,002 mm) |
| Min. pad height (with adapters) | 8 1/8″ (207 mm) |
| Lifting height (without adapters) | 74 13/16″ (1,900 mm) |
| Min. pad height (without adapters) | 4 15/16″ (125 mm) |
| Rise time | ~60 sec |
| Overall height | 122 1/2″ (3,112 mm) |
| Overall width (outside of columns) | 155 1/8″ (3,940 mm) |
| Overall base length | 160 1/4″ (4,070 mm) |
| Inside the columns | 129 15/16″ (3,300 mm) |
| Drive-thru clearance | 116 3/16″ (2,951 mm) |
| Arm reach (front and rear) | 35 1/16″ – 74 13/16″ (890 – 1,900 mm) |
| Column / carriage steel | 6 mm (0.236″) |
| Arm steel | 8 mm (0.315″) |
| Equalizer cable | 9 mm (0.354″) |
| Motor | 4 HP, 220V, 60 Hz, single-phase |
| Recommended breaker | 30 A |
| Hydraulic oil | AW32 (cold weather) / AW46 (warm weather) |
| Concrete requirement | 8″ (200 mm) min. thickness, 3,500 PSI min., fully cured |
| Shipping dimensions | 112″ L × 41″ W × 29″ H |
| Shipping weight | 1,980 lb |
| Electrical hook-up must be done by a licensed electrician; the lift ships without a power plug. | |
Warranty
Stratus backs the SAE-F12X with a 5-year warranty on the lifting structure, 3 years on hydraulic components, and 2 years on electrical components.
FAQ
What concrete does the F12X need?
The installation manual specifies a level slab of at least 200 mm (about 8 inches) of 3,500 PSI concrete, fully cured and free of cracks or holes, before the lift is installed.
What are the anchor and torque specs?
The lift includes fourteen M20 × 160 mm concrete anchors (about 3/4″ by 6″), torqued to a minimum of 90 ft-lb.
What electrical service does it require?
The motor is 220V single-phase on a 30 A breaker and must be wired by a licensed electrician (two hot leads plus ground). It ships without a power plug.
Can I adjust the lifting speed?
Yes. Lift speed is set at the power unit’s hydraulic oil-flow valve; follow the adjustment direction given in the manual.
Will a wide truck fit between the columns?
The F12X is the extra-wide F-series model: 116 3/16″ of drive-thru clearance and 129 15/16″ inside the columns give wide-body and dual-rear-wheel trucks room to load.
Is the F12X ALI certified?
The F12X is CE marked. Stratus does not publish ANSI/ALI ALCTV (ALI) certification for this model; if ALI certification is required in your jurisdiction, confirm the current status with the manufacturer before purchase.
