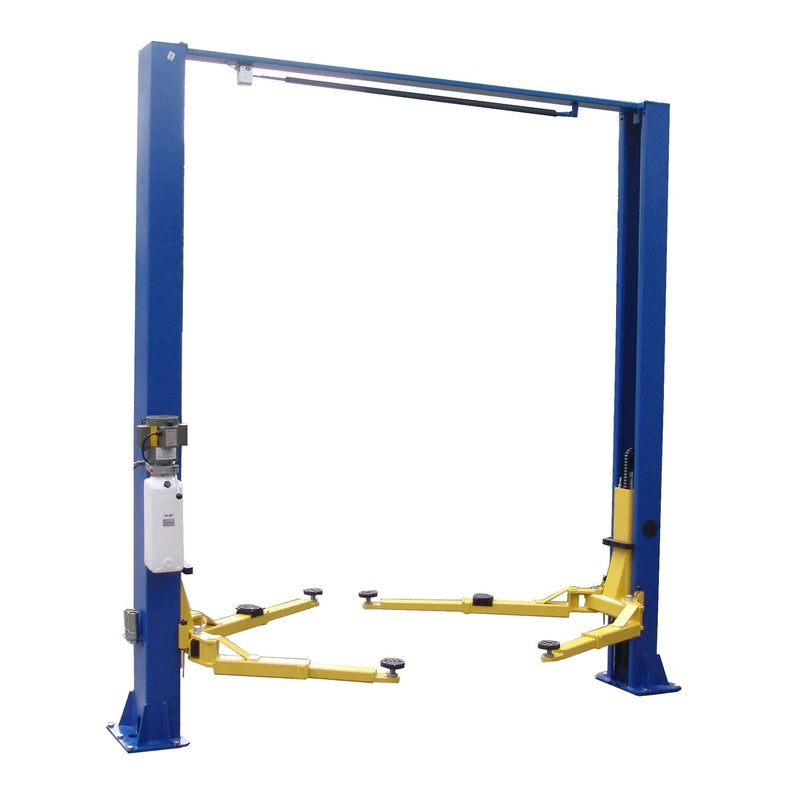

Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 2
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 3
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 4
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 5
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 6
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 7
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 8
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 9
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 10
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 11
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 12
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 13
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 14
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric - Image 15

Tuxedo TP9KACX 9,000 lb Two Post Clear Floor – Asymmetric

Original price was: $2,750.00.Current price is: $1,650.00.

Authorized Dealer Full manufacturer warranty and support.
Manufacturer Warranty Warranty coverage included by brand.
Shipping & Availability Contact us for live warehouse availability.
SKU TP9KACX Categories , ,

Product Details

Description

The new TP9KACX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the bestTwo Post Lift values in the industry!

Features

  • 9,000 lbs capacity

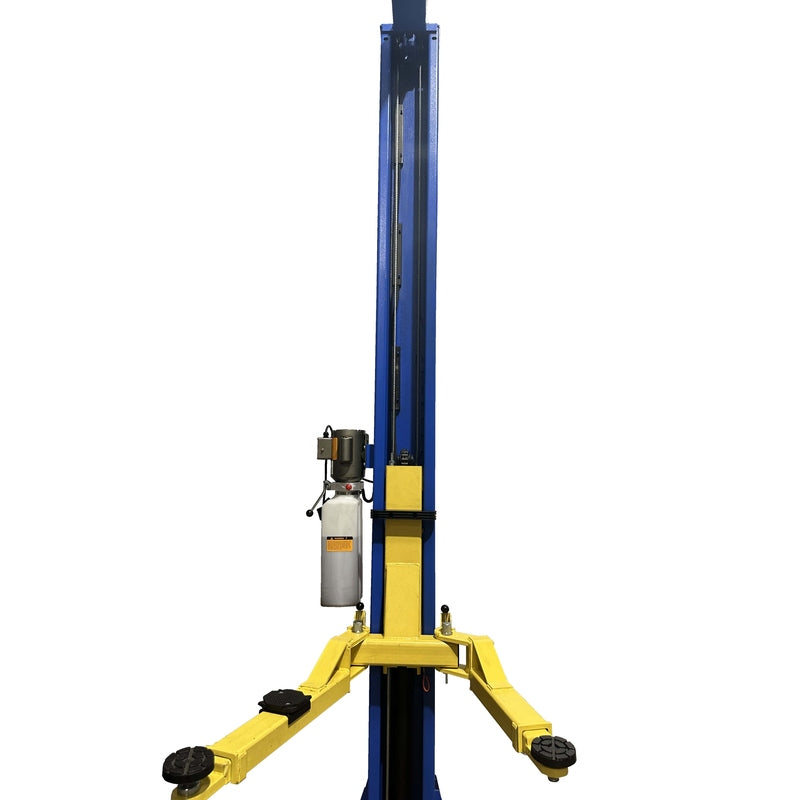

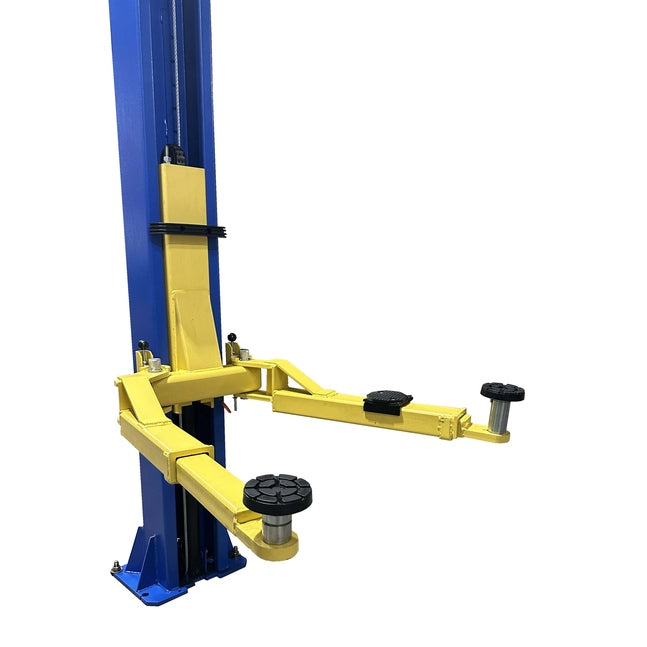

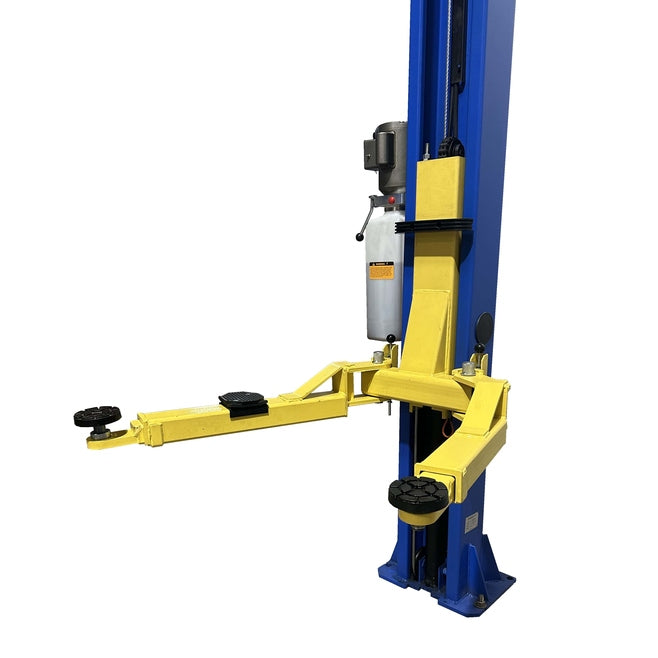

  • ASymmetric Arms

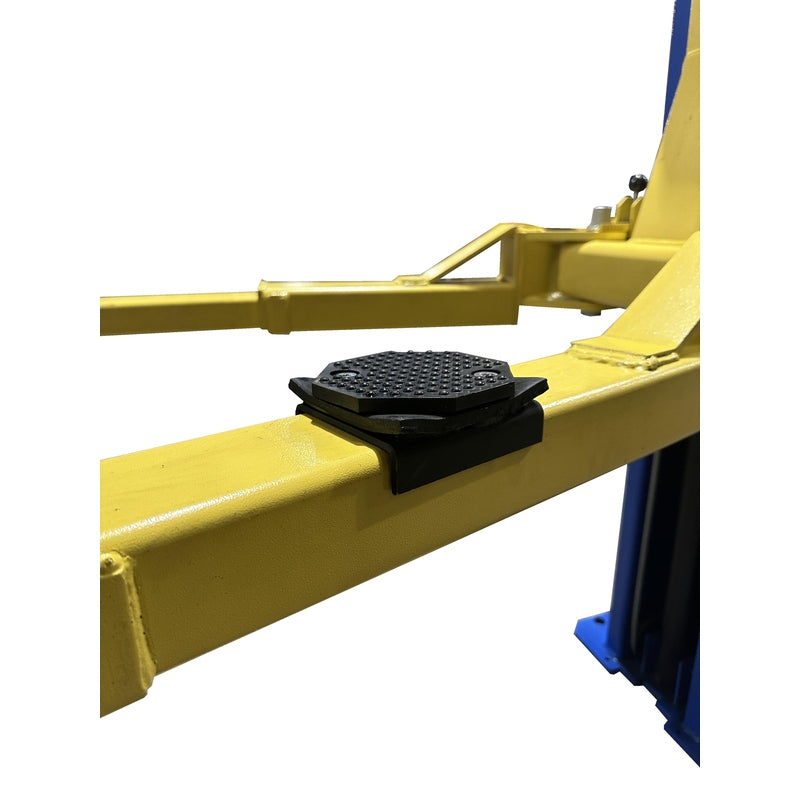

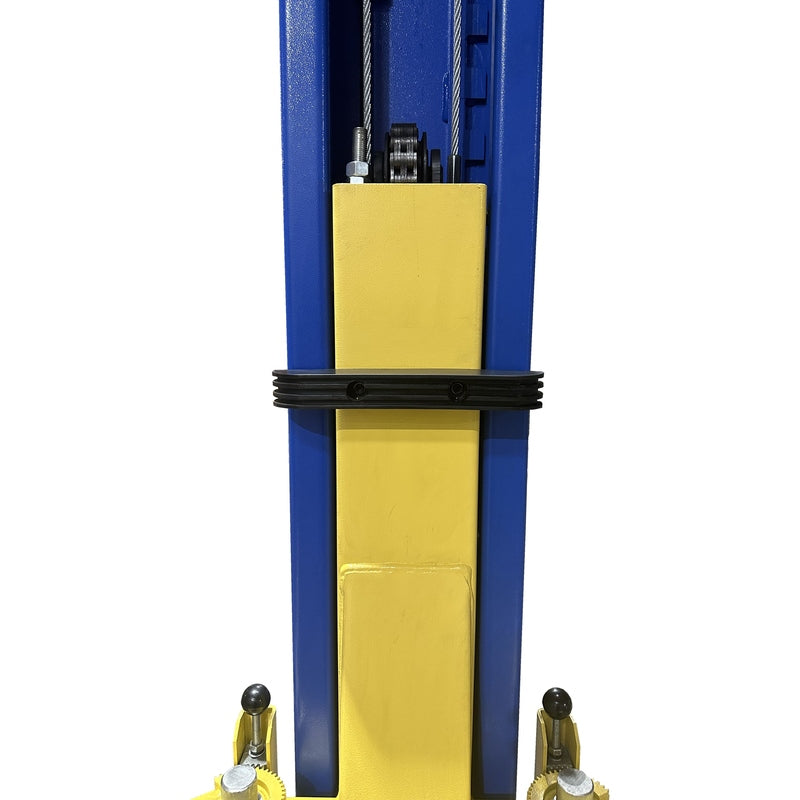

  • Rubber Door Guards
  • Chain Drive Cylinders
  • Dual Point Lock Release

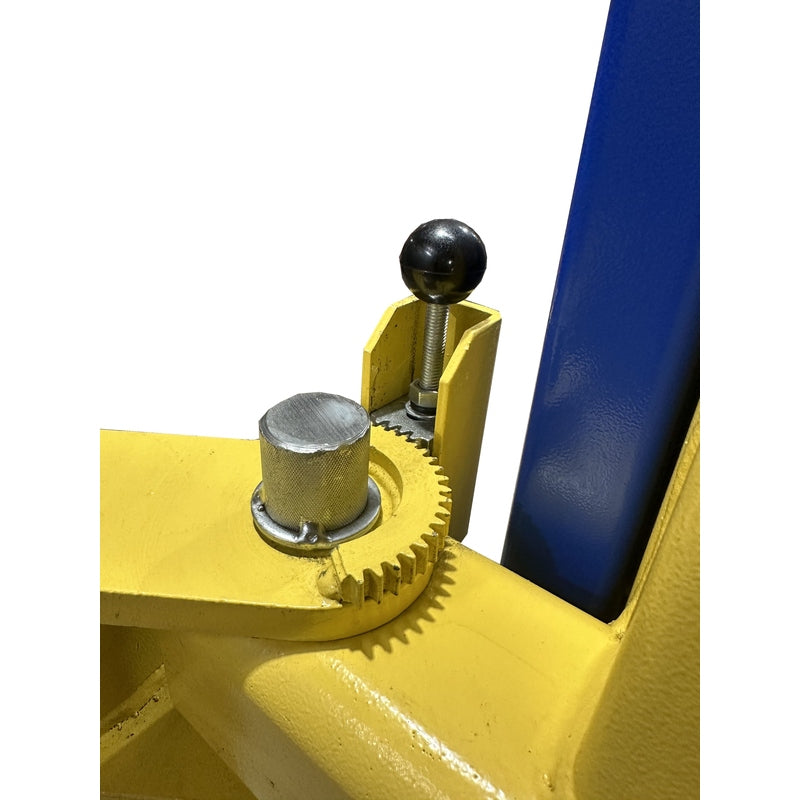

  • Auto Arm Restraint System

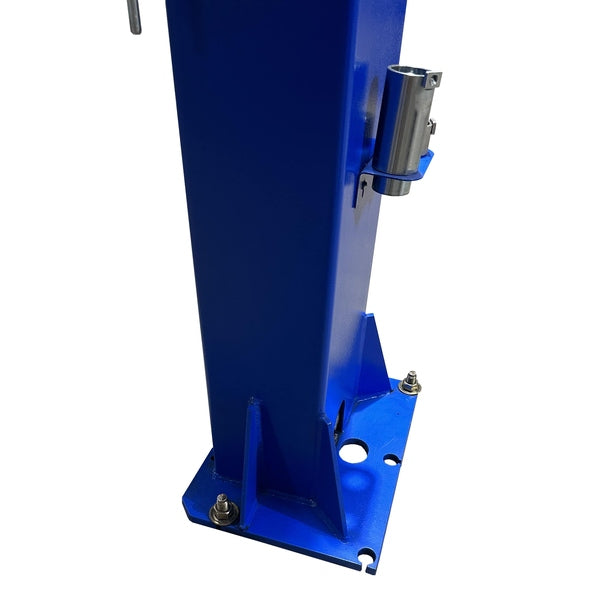

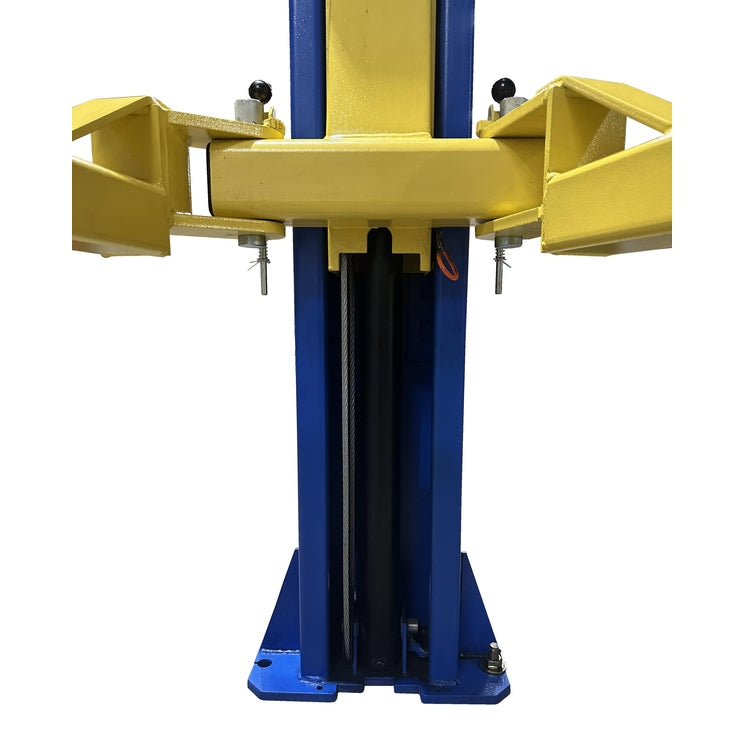

  • Single Piece Column
  • Internal Hose routing

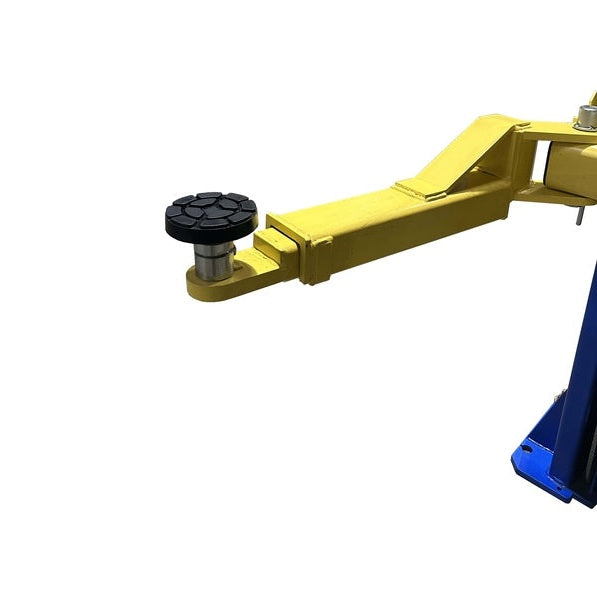

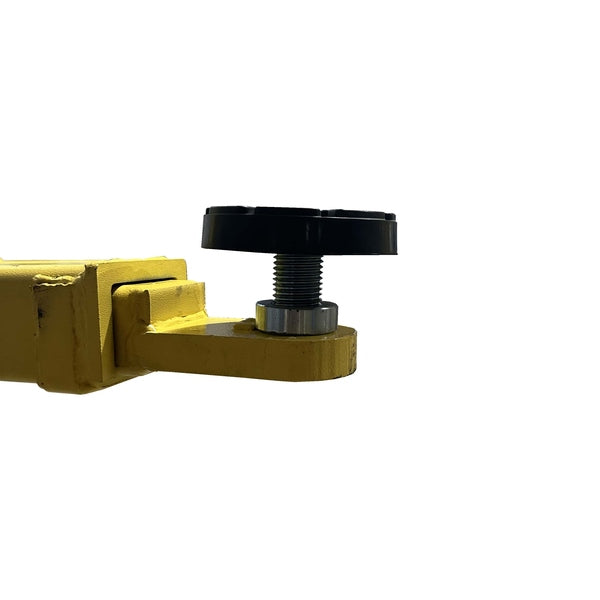

  • Low profile Spin Up Lift Pads

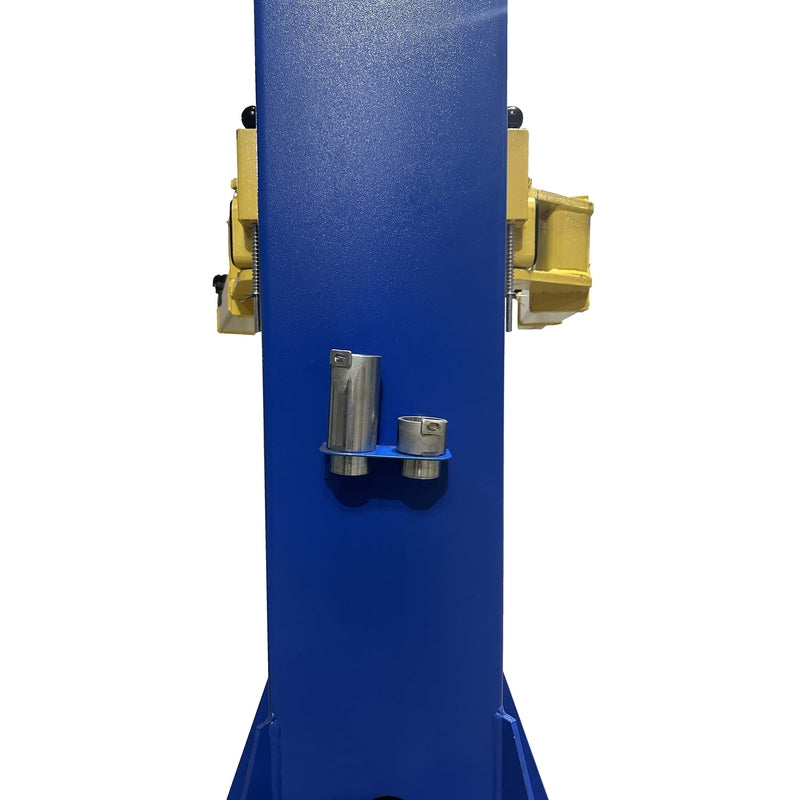

  • Stackable Adapters Included

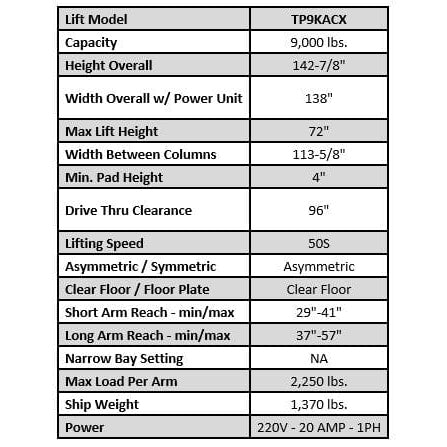

Specifications

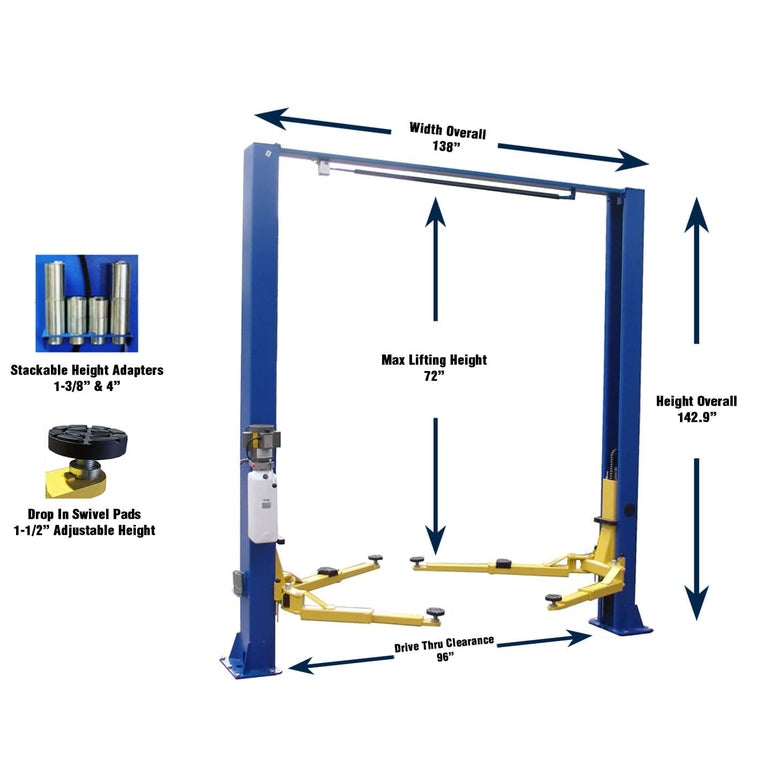

Lift Model TP9KACX
Capacity 9,000 lbs.
Height Overall 142-7/8″
Width Overall w/ Power Unit 138″
Max Lift Height 72″
Width Between Columns 113-5/8″
Min. Pad Height 4″
Drive Thru Clearance 96″
Lifting Speed 50S
Asymmetric / Symmetric Asymmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach min/max 29″-41″
Long Arm Reach min/max 37″-57″
Narrow Bay Setting NA
Max Load Per Arm 2,250 lbs.
Ship Weight 1,370 lbs

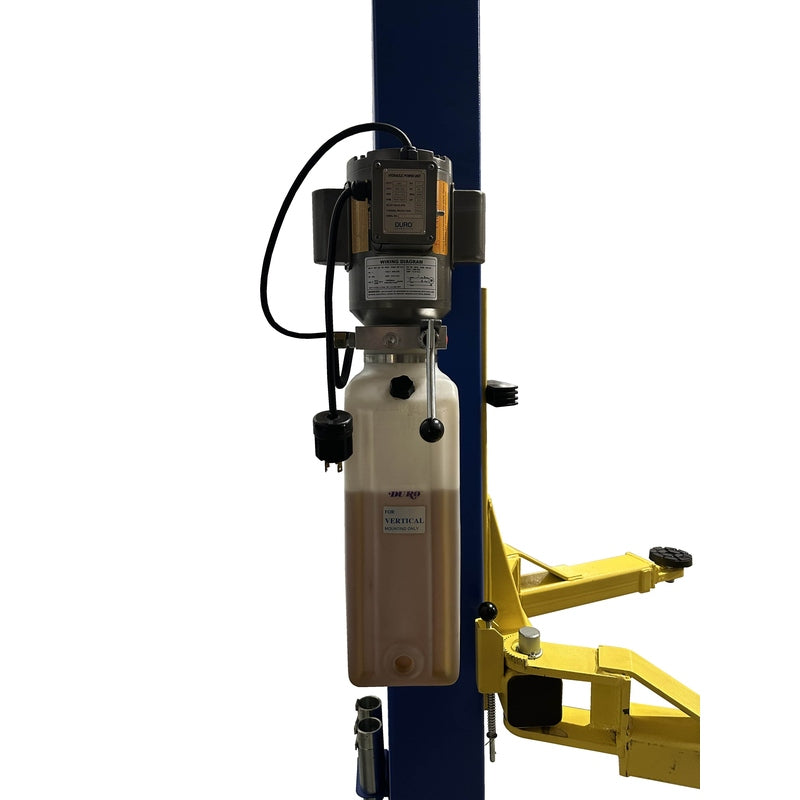

Power 220V 20 AMP 1 PH

Manual

Tuxedo TP9KACX 9,000 lb 2 Post Lift Manual

Warranty

Tuxedo covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. Tuxedo pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
